4big Quadra
ENTERPRISE CLASS
eSATA 3Gb/s | FireWire 800 | FireWire 400 | Hi-Speed USB 2.0
Quick Install Guide
Design by Neil Poulton

Advertisement

loading
Need help?

Need help?

Do you have a question about the 301385U and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for LaCie 301385U

Summary of Contents for LaCie 301385U

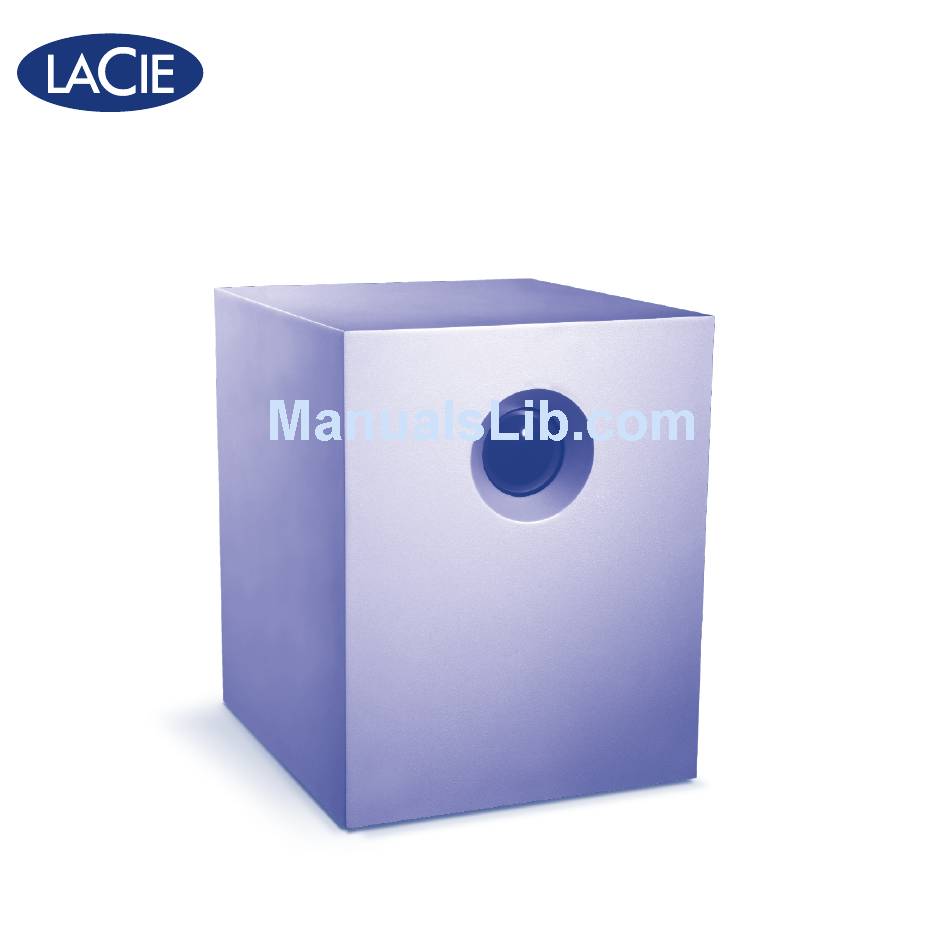

  • Page 1 4big Quadra ENTERPRISE CLASS eSATA 3Gb/s | FireWire 800 | FireWire 400 | Hi-Speed USB 2.0 Quick Install Guide Design by Neil Poulton...

  • Page 3: Box Content

    (3Gb/s) cable FireWire 800 (9:9 pin) cable FireWire 400 (6:6 pin) cable Hi-Speed USB 2.0 cable Power supply kit LaCie CD-ROM (with detailed user manuals and software, including LaCie Desktop Manager) Protect your investment – register for free technical support: www.lacie.com/register...
  • Page 4 Please note that the term of your warranty remains five years. PCI-E eSATA 3Gb/s card LaCie offers a wide range of host adapaters includ- ing the eSATA II PCI Express Card 3Gb/s. Featuring four external eSATA 3Gb/s connectors, it is the best interface choice for professionals who demand high speed.

  • Page 5: Front View

    Front View 1. Shortcut button with activity LED Rear View 2. Drive tray lock 3. Drive tray handle 4. eSATA 3Gb/s port 5. on/auto/off power switch 6. FireWire 400 port designed by neil poulton 7. Drive status LED 8. Hi-Speed USB 2.0 port 9.
  • Page 6 Setup 1. Plug the power supply into an AC outlet and connect the power cable to the 4big Quadra. 2. Decide which interface cable you will use (eSATA 3Gb/s , FireWire 400, FireWire 800, USB 2.0) and connect your 4big Quadra to your computer. NOTE: Do not connect more than one interface cable between your computer and your 4big Quadra.
  • Page 7 The drive will mount in My Computer (Windows) or on your desktop (Mac). 4. LaCie 4big Quadra Enterprise Class comes with four 3.5” SATA II Enterprise-class hard disks installed. The disks are formatted in HFS+, so Windows users will need to reformat the disks before using the 4big Quadra.

  • Page 8: Changing The Raid Mode

    Changing the RAID Mode CAUTION! - Changing the RAID mode will erase the data stored on the 4big Quadra. Back up data before changing the RAID mode. - The 4 disk trays must be in place before the RAID mode can be modified. NOTE: Changing the RAID mode and formatting will not change the encryption configuration but will erase the encrypted data.

  • Page 9: Warranty Information

    Precautions Do not stack more than 2 LaCie 4big Quadra Enterprise together. Do not expose the drive to temperatures over 35° C (95° F) or 30° C (86° F) when stacked. Do not expose the device to liquids. Use only the power supply shipped with the device.

  • Page 10: Installation

    4. Les disques sont configurés en mode RAID 5. Si vous souhaitez changer de mode RAID, reportez-vous à la section Modification du mode RAID sur la page suivante. 5. Installez le logiciel LaCie Desktop Manager à partir du CD-ROM pour configurer le cryptage et le bouton de raccourci.
  • Page 11 NOTA: La crittografia di LaCie Enterprise Class offre un livello molto elevato di protezione per i vostri dati più importanti. La potenza della crittografia renderà impossibile il recupero dei dati nell'improbabile caso di un guasto del disco o di un componente.
  • Page 12 3. Die LaCie 4big Quadra Enterprise Class ist mit vier 3,5-Zoll-SATA-II-Enterprise-Class-Festplatten ausgestattet. Die Festplatten sind als HFS+ formatiert; Windows-Nutzer müssen die Festplatten vor dem Einsatz der 4big Quadra umformatieren. Lesen Sie bitte das ausführliche Benutzerhandbuch auf der LaCie CD-ROM, um weitere Informationen zur Festplattenformatierung zu erhalten.
  • Page 13 4. Los discos se configuran en RAID 5. Si desea cambiar el modo RAID, consulte “Cambio del modo RAID” en la página siguiente. 5. Instale el software LaCie Desktop Manager desde el CD-ROM para configurar el cifrado y el botón de acceso directo.
  • Page 14 4big uit. 2. Om de RAID modus te wijzigen, zet u de LaCie 4big op ON (niet “AUTO”) terwijl u de LED knop vooraan ingedrukt houdt gedurende 15 seconden. De LED vooraan zal blauw en rood knipperen.
  • Page 15 NOTA: Não ligue mais do que um cabo de interface ao seu computador e ao sistema 4big Quadra. 3. O LaCie 4big Quadra Enterprise Class inclui quatro discos rígidos SATA II Enterprise class de 3,5 pol. instalados. Os discos estão formatados em HFS+, pelo que os utilizadores do Windows terão de reformatar os discos antes de utilizar o sistema 4big Quadra.
  • Page 16 OBSERVERA! Anslut inte mer än en gränssnittskabel mellan datorn och 4big Quadra. 3. LaCie 4big Quadra Enterprise Class levereras med fyra 3,5-tums hårddiskar av SATA II Enterprise-klass. Hårddiskarna är formaterade i HFS+, vilket innebär att Windows-användare måste formatera om dem för att kunna använda 4big Quadra.
  • Page 17 BEMÆRK: Forbind ikke mere end ét interfacekabel mellem computeren og 4big. Quadra. 3. LaCie 4big Quadra Enterprise Class leveres med fire 3.5” SATA II Enterprise-class harddiske installeret. Diskene er formateret i HFS+, så Windows-brugere skal omformatere dem, før 4big Quadra tages i brug.
  • Page 18 4big Quadra tietokoneeseen. HUOM. Kytke tietokoneen ja 4big Quadran välille vain yksi liitäntäkaapeli. 3. LaCie 4big Quadra Enterprise Class -asemassa on toimitettaessa neljä 3.5” SATA II Enterprise- class -kiintolevyä. Levyt on alustettu HFS+-taltioiksi, joten ne on alustettava uudelleen, ennen kuin 4big Quadraa voidaan käyttää...
  • Page 19 UWAGA: Do komputera i macierzy 4big Quadra można podłączyć tylko jeden przewód połączeniowy. 3. W macierzy LaCie 4big Quadra Enterprise Class są zainstalowane cztery dyski twarde 3,5 cala SATA II klasy korporacyjnej. Dyski są sformatowane w systemie plików HFS+, więc użytkownicy systemu Windows muszą przed rozpoczęciem korzystania z macierzy 4big Quadra sformatować...
  • Page 20 При этом все данные на устройстве 4big Quadra будут удалены. Перед включением шифрования сделайте резервные копии данных. ПРИМЕЧАНИЕ: Шифрование LaCie Enterprise Class надежно защитит самые важные данные. Из-за высокой . защиты шифрования, в случае сбоя диска или логического раздела, восстановить данные будет...
  • Page 21 ΣΗΜΕΙΩΣΗ: Μην συνδέετε περισσότερα από ένα καλώδια διασύνδεσης μεταξύ του υπολογιστή και του 4big Quadra. 3. Το LaCie 4big Quadra Enterprise Class παραδίδεται µε τέσσερις εγκατεστηµένους σκληρούς δίσκους 3.5” SATA II Enterprise-class. Οι δίσκοι είναι µορφοποιηµένοι ως HFS+, συνεπώς οι χρήστες των Windows θα...
  • Page 22 2. 使用するインタフェース ケーブル (eSATA 3Gb/s、FireWire 400、FireWire 800、USB 2.0) を選択し、 4big Quadra をコンピュータに接続します。 注意: コンピュータと 4big Quadra の間で、複数のインタフェース ケーブルを接続しないでください。 3. LaCie 4big Quadra Enterprise Class には、3.5" SATA II Enterprise 級ハードディスクが 4 台インストー ルされています。 ディスクは HFS+ でフォーマット済みです。そのため、Windows をお使いの場合は、 4big Quadra を使用する前にディスクを再フォーマットする必要があります。ハード ディスクのフォーマ...
  • Page 24 NOT: Bilgisayarınızla 4big Quadra'nın arasına birden fazla arabirim kablosu bağlamayın. 3. LaCie 4big Quadra Enterprise Class, dört adet 3,5” SATA II Enterprise sınıfı sabit disk takılı halde gelir. Diskler HFS+ formatında biçimlendirilmiştir; bu nedenle Windows kullanıcılarının 4big Quadra'yı kullanmadan önce yeniden biçimlendirmeleri gerekir.
  • Page 25 ‫:ﺓﻅﺡﺍﻝﻡ‬...
  • Page 28 28036 Madrid sales.es@lacie.com LaCie Switzerland Davidsbodenstrasse 15 A 4004 Basel sales.ch@lacie.com LaCie United Kingdom & Ireland LaCie LTD · Friendly House 52-58 Tabernacle Street London, England EC2A 4NJ UK: sales.uk@lacie.com Ireland: sales.ie@lacie.com LaCie Worldwide Export 17, rue Ampère 91349 Massy Cedex France sales.intl@lacie.com...
