1. Summary

This unit is a new style, unique and intuitionistic meter which can check and discharge electrostatic on
human body. It is reliable, portable design and easy to use. The meter can be wall mounted outside ESD
protected area to display the electrostatic on human body and discharge electrostatic when entering the
ESD protected area. It is also effective in detecting the electrostatic potential difference between two
persons and checking whether the personnel ground straps, coil cords, ground pin, special floors, anti-static
dope, and anti-static clothing etc. are effective or not.

2. Specification

Accuracy:
Operating Temperature:
Power supply:
Output:
Dimension:
Weight:

3. Installation

Take out the meter and check whether it is broken or not.
Select an orientating plate and install orientating poles on it according to the size and position of the
orientating holes on the back of the meter. And then mount the orientating plate on the wall and hang the
meter on it directly.
VECTECH 497

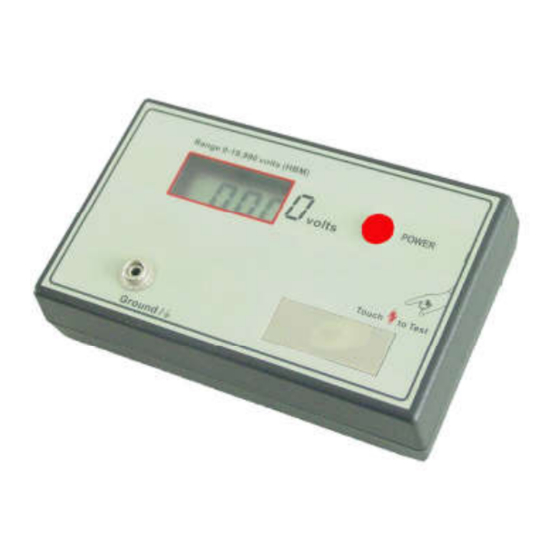

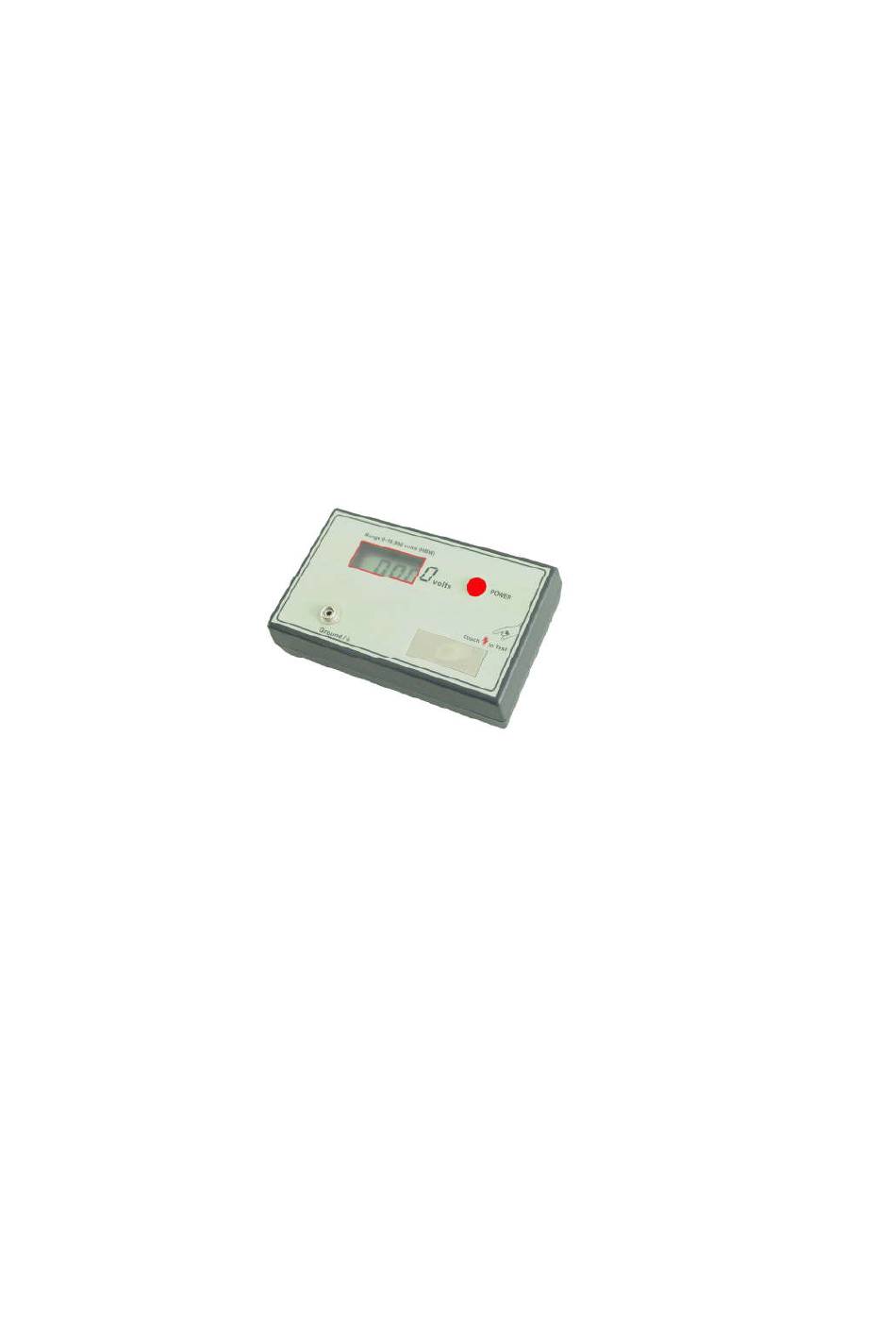

Static Check Meter
±5% ± 1 digit (0±10000V)
0~50℃
9VDC Battery (or AC coupling adapter and its output voltage is 9~12VDC)
LCD Digit Display
160mm×100mm×40mm
About 0.4Kg
