Radiocrafts
Embedded Wireless Solutions
RC2300DK- ZigBee
Quick Start
Introduction

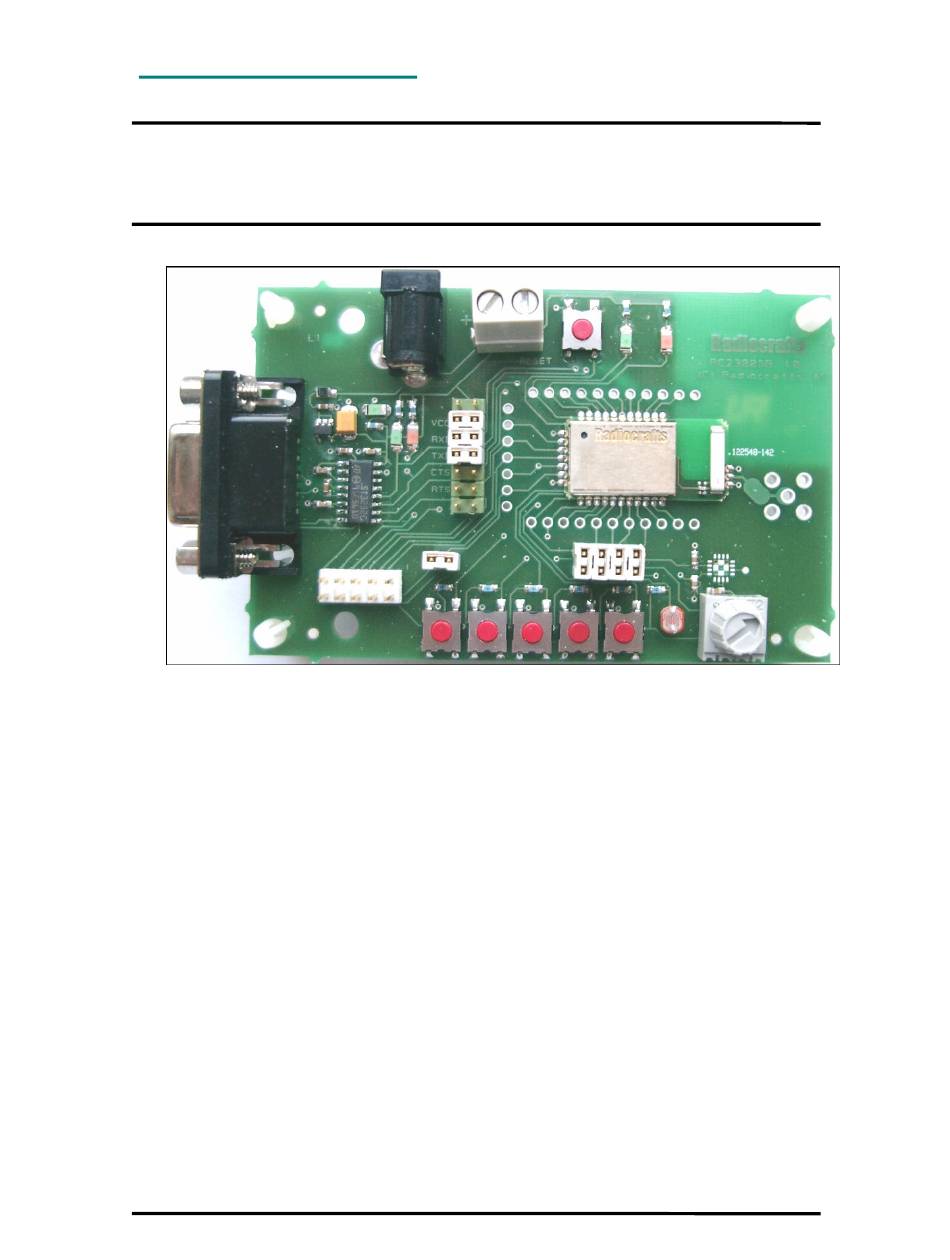

The RC2300DK demonstration kit includes a preloaded program to enable simple RF range
tests. This document is a guide to using the preloaded FW.
Other FW can be downloaded to the module when using the kit as a development kit. Please
see User Guide for more info on this.
Quick Start Guide
To use the simple test FW follow the steps below:
1. Connect the RS232 port to a PC using a 1:1 serial cable for each board (can also be
an emulated RS232 over USB).
2. Start a terminal program on the PC (like Microsoft HyperTerminal) for each board.
Settings should be as shown in figure 1 and 2.
©2007 Radiocrafts AS
®
-ready Demonstration Kit
RC2300DK- Demonstration Kit Quick Start (rev. 1.0)
RC2300DK
Page 1 of 3
Advertisement
Table of Contents
Related Manuals for Radiocrafts RC2300DK
Summary of Contents for Radiocrafts RC2300DK
- Page 1 Quick Start Introduction The RC2300DK demonstration kit includes a preloaded program to enable simple RF range tests. This document is a guide to using the preloaded FW. Other FW can be downloaded to the module when using the kit as a development kit. Please see User Guide for more info on this.
- Page 2 DC jack. The green LED close to the DC jack will light up when the power source is OK. The following should appear in the HyperTerminal window: ©2007 Radiocrafts AS RC2300DK- Demonstration Kit Quick Start (rev. 1.0) Page 2 of 3...
- Page 3 Fax: +47 22 71 29 15 NO-0484 OSLO NORWAY ® ZigBee is a trademark of the ZigBee Alliance. © 2007, Radiocrafts AS. All rights reserved. ©2007 Radiocrafts AS RC2300DK- Demonstration Kit Quick Start (rev. 1.0) Page 3 of 3...
