Radiocrafts RC2200DK-HCL Quick Start

RC2200DK-HCL ZigBee™-ready Demonstration Kit
Quick Start

Introduction

The RC2200DK-HCL demonstration kit shows a ZigBee™-ready home control lighting profile
based on the Figure 8 Wireless Z-stack. To make the demonstration a minimum of two
(optionally three) boards are used:
1. Switch Load Controller (SLC) configured as network coordinator
2. Switch Remote Control (SRC) configured as network router
3. A second Switch Remote Control (SRC) configured as network router (optional)

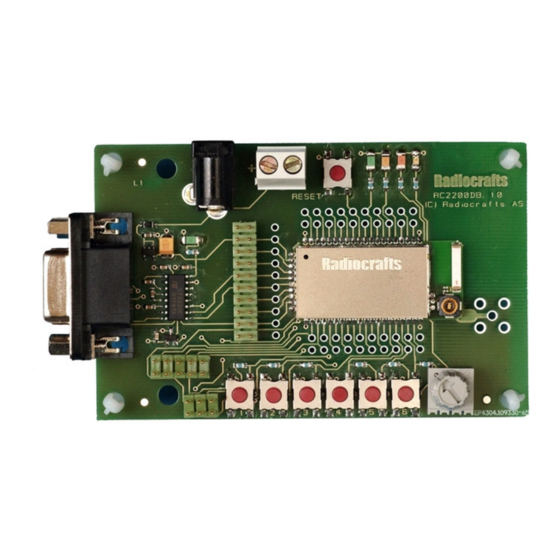

The kit contains two Demo Boards factory preconfigured and marked as SLC/C and SRC/R
respectively.
To monitor the ZigBee network communication a "packet sniffer" application could be installed
on a PC. However, this is not required to do a simple demonstration.
©2005 Radiocrafts AS RC2200DK-HCL Demonstration Kit Quick Start (rev. 0.3)
RC2200DK-HCL
Page 1 of 2
