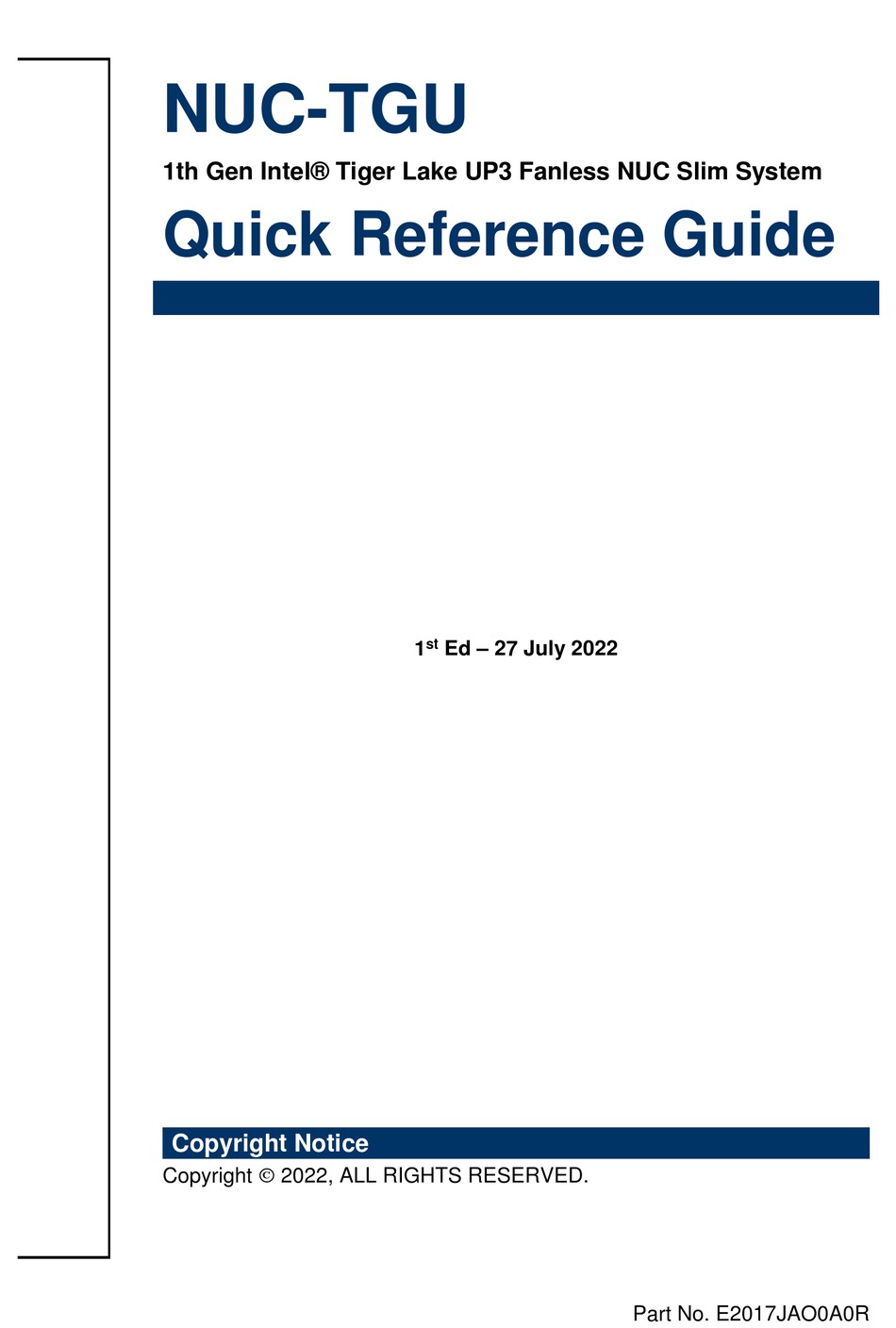

- Page 1 NUC-TGU 1th Gen Intel® Tiger Lake UP3 Fanless NUC Slim System Quick Reference Guide Ed – 27 July 2022 Copyright Notice Copyright 2022, ALL RIGHTS RESERVED. Part No. E2017JAO0A0R...
- Page 2 For the most frequently asked questions, you can easily find answers in your product documentation. These answers are normally a lot more detailed than the ones we can give over the phone. So please consult the user’s manual first. 2 NUC-TGU Quick Reference Guide...
-
Page 3: Table Of Contents
General purpose I/O connector (JDIO1) ................22 Installing Din Rail Mounting (NUC-TGU) ............. 23 Installing Stand Mounting (NUC-TGU) ..............24 Installing VESA Mounting (NUC-TGU) ..............25 Installing Memory & M.2 card (NUC-TGU) ............26 3.BIOS Setup ........................28 Introduction ......................29 Starting Setup ...................... 29 Using Setup ...................... - Page 4 SATA And RST Configuration ..................51 3.6.3.2.3 HD Audio Configuration ....................51 3.6.3.3 Board & Panel Configuration ................... 52 3.6.3.3.1 SHOW DMI INFO ......................53 3.6.4 Security ............................ 53 3.6.4.1 Secure Boot ........................54 3.6.4.1.1 Key Management ......................55 4 NUC-TGU Quick Reference Guide...
- Page 5 Install Chipset Driver ................... 59 Install VGA Driver ....................60 Install LAN Driver ....................61 Install Serial IO Driver ..................62 Install Audio Driver ....................63 Install ME Driver ....................64 Install Realtek Audio Control Driver ..............65 NUC-TGU Quick Reference Guide...
-
Page 6: Getting Started
Place all electronic components in a static-dissipative surface or static-shielded bag when they are not in the chassis. Packing List 1 x NUC-TGU Intel® Core® SoC Processor Fanless System 1 x AC to DC Adapter ... -
Page 7: System Specifications
1 x Data Access LED Indicator 1 x Wi-Fi 1 x LTE Edge I/O (Rear) USB Port 4 x USB 3.2 Gen2 HDMI 2 x HDMI 2.0b 2 x RJ45d RJ-45 DC Jack 1 x Lockable DC Jack NUC-TGU Quick Reference Guide... - Page 8 Single power ATX Support S0, S3, S4, S5 ACPI ACPI 5.0 Compliant Power Mode AT/ATX (ATX is default setting) Adapter AC to DC Adapter Mechanical & Environment Operating Temp. With extended temperature peripherals: 0°C ~ 50°C (32°F ~ 122°F) with 0.5m/s air 8 NUC-TGU Quick Reference Guide...
- Page 9 5 Test Axis : +/- X, +/-Y, +/-Z axis 6 operation mode 7 Reference IEC 60068-2-27 testing procedures Test Eb : SSD Shock Test Package drop test Drop Test Reference ISTA 2A, Method : IEC-60068-2-32 Test:Ed Test Ea : Drop Test NUC-TGU Quick Reference Guide...
- Page 10 1 x Power cord 1 x Table Stand Accessory 1 x Din Rail 1 x VESA 4 x Rubber Foot 1 x A bag of gadgets (packs screws, rubber foots) Note: Specifications are subject to change without notice. 10 NUC-TGU Quick Reference Guide...
-
Page 11: System Overview
Kensington Lock Kensington Lock *Note 1: Please note LED Indicator is based on the design of the card/module. *Note 2: Do not unplug the adapter and Jack arbitrarily after booting. It will cause system abnormalities. NUC-TGU Quick Reference Guide 11... -
Page 12: System Dimensions
NUC-TGU 1.5 System Dimensions (Unit: mm) 12 NUC-TGU Quick Reference Guide... -
Page 13: Hardware Configuration
Quick Reference Guide 2. Hardware Configuration Jumper and Connector Setting, Driver and BIOS Installing For advanced information, please refer to: 1- NCM-TGU included in this manual. NUC-TGU Quick Reference Guide 13... -
Page 14: Nuc-Tgu Connector Mapping
In RS-232 Mode Signal PIN PIN Signal NDCD# NDSR# NRXD NRTS# NTXD NCTS# NDTR# NRI# In RS-422 Mode Signal PIN PIN Signal TxD1- TxD1+ RxD1+ RxD1- In RS-485 Mode Signal PIN PIN Signal DATA1- DATA1+ 14 NUC-TGU Quick Reference Guide... -
Page 15: Ncm-Tgu Overviews
Quick Reference Guide 2.2 NCM-TGU Overviews NUC-TGU Quick Reference Guide 15... -
Page 16: Ncm-Tgu Jumper & Connector List
MIC1 Mic-in audio jack LOUT1 Line-out audio jack HDMI1/2 HDMI connector 1/2 N_SIM1 SIM card slot JESPI1 ESPI connector 6 x 2 header, pitch 1.27mm JECROM1 EC Debug connector 3 x 1 header, pitch 2.00mm 16 NUC-TGU Quick Reference Guide... -
Page 17: Ncm-Tgu Jumpers & Connectors Settings
Quick Reference Guide 2.4 NCM-TGU Jumpers & Connectors settings 2.4.1 Serial port 1/2 pin9 signal select (JRI1/2) JRI1 Ring* JRI2 +12V * Default 2.4.2 Clear CMOS (JRTC1) Normal* Clear CMOS * Default NUC-TGU Quick Reference Guide 17... -
Page 18: At/Atx Input Power Select (Jat1)
NUC-TGU 2.4.3 AT/ATX Input power select (JAT1) * Default 2.4.4 ESPI connector (JESPI1) Signal PIN PIN Signal eSPI_R_IO0 +3.3V eSPI_R_IO1 RST_TPM# eSPI_R_IO2 eSPI_R_CS# eSPI_R_IO3 eSPI_R_CLK eSPI_R_RST# 18 NUC-TGU Quick Reference Guide... -
Page 19: Ec Debug Connector (Jecrom1)
Quick Reference Guide 2.4.5 EC Debug connector (JECROM1) Signal EC_SMCLK_DEBUG EC_SMDAT_DEBUG 2.4.6 Battery connector (JBAT1) Signal +RTCBATT NUC-TGU Quick Reference Guide 19... -
Page 20: Front Panel Connector (Jfp1)
NUC-TGU 2.4.7 Front Panel connector (JFP1) Signal PIN PIN Signal HDD_LED_P PWR_LED_P HDD_LED# PWR_LED# PM_SYSRST# PWRBTN_IN# 2.4.8 USB connector (JUSB1) Signal PIN PIN Signal +5VSB +5VSB USB_R_DN7 USB_R_DN8 USB_R_DP7 USB_R_DP8 20 NUC-TGU Quick Reference Guide... -
Page 21: Audio Connector (Jlin1)
Quick Reference Guide 2.4.9 Audio connector (JLIN1) Signal LINE1-R-IN LINE1-L-IN HD_AGND LINE1-JD 2.4.10 BIOS EC connector (JBIOS_EC1) Signal PIN PIN Signal +3.3VSB SPI_CS0#_ROM SPI_CLK_ROM SPI_MISO_ROM SPI_MOSI_ROM SPI_HOLD#_ROM SPI_WP#_ROM NUC-TGU Quick Reference Guide 21... -
Page 22: Power Connector (Dcin2)
NUC-TGU 2.4.11 Power connector (DCIN2) Signal +12VSB +12VSB 2.4.12 General purpose I/O connector (JDIO1) Signal PIN PIN Signal DIO_GP20 DIO_GP10 DIO_GP21 DIO_GP11 DIO_GP22 DIO_GP12 DIO_GP23 DIO_GP13 SMB_SCL_S0 SMB_SDA_S0 22 NUC-TGU Quick Reference Guide... -
Page 23: Installing Din Rail Mounting (Nuc-Tgu)
Quick Reference Guide 2.5 Installing Din Rail Mounting (NUC-TGU) Step1. Fix with two M3*4 screws on the system. NUC-TGU Quick Reference Guide 23... -
Page 24: Installing Stand Mounting (Nuc-Tgu)
NUC-TGU 2.6 Installing Stand Mounting (NUC-TGU) Step1. Fix with four 6#32*5 screws on the system. 24 NUC-TGU Quick Reference Guide... -
Page 25: Installing Vesa Mounting (Nuc-Tgu)
Quick Reference Guide 2.7 Installing VESA Mounting (NUC-TGU) Step1. Insert and fasten two M3*L11.1 screw on the bottom. Step2. Fix with four M4*6mm screws on the monitor (or wall). Step3. Slide the system onto the VESA mount bracket. NUC-TGU Quick Reference Guide 25... -
Page 26: Installing Memory & M.2 Card (Nuc-Tgu)
NUC-TGU 2.8 Installing Memory & M.2 card (NUC-TGU) Step 1. Remove 4 screws from the bottom of your system and take it off. Step 2. Slide the DDR4 SODIMM into the memory socket and press it down until properly seated. - Page 27 Quick Reference Guide NUC-TGU Quick Reference Guide 27...
-
Page 28: Bios Setup
NUC-TGU 3.BIOS Setup 28 NUC-TGU Quick Reference Guide... -
Page 29: Introduction
If the message disappears before you respond and you still wish to enter Setup, restart the system to try again by turning it OFF then ON or pressing the "RESET" button on the system case. You may also restart by simultaneously pressing <Ctrl>, <Alt>, and <Delete> keys. NUC-TGU Quick Reference Guide 29... -
Page 30: Using Setup
Note: Some of the navigation keys differ from one screen to another. To Display a Sub Menu Use the arrow keys to move the cursor to the sub menu you want. Then press <Enter>. A “” pointer marks all sub menus. 30 NUC-TGU Quick Reference Guide... -
Page 31: Getting Help
BIOS Vendor and your systems manufacturer to provide the absolute maximum performance and reliability. Even a seemingly small change to the chipset setup has the potential for causing you to use the override. NUC-TGU Quick Reference Guide 31... -
Page 32: Bios Setup
<Enter> to accept and enter the sub-menu. 3.6.1 Main Menu This section allows you to record some basic hardware configurations in your computer and set the system clock. 32 NUC-TGU Quick Reference Guide... -
Page 33: System Language
Note: The BIOS setup screens shown in this chapter are for reference purposes only, and may not exactly match what you see on your screen. 3.6.2 Advanced Menu This section allows you to configure your CPU and other system devices for basic operation through the following sub-menus. NUC-TGU Quick Reference Guide 33... -
Page 34: Connectivity Configuration
[Disable Integrated] disables Integrated Solution. NOTE: When CNVi is present, the GPIO pins that are used for radio. 3.6.2.2 CPU Configuration Use the CPU configuration menu to view detailed CPU specification and configure the CPU. 34 NUC-TGU Quick Reference Guide... -
Page 35: Power & Performance
When enabled, a VMM can utilize the additional Intel (VMX) Virtualization Disabled hardware capabilities provided by Vanderpool Technology Enabled[Default] Technology. All[Default] Number of cores to enable in each processor Active Processor Cores package. 3.6.2.3 Power & Performance NUC-TGU Quick Reference Guide 35... -
Page 36: Cpu - Power Management Control
Speed Step or Intel Speed Shift to be available and Disabled enabled). Enabled[Default], C States Enable/Disable CPU Power Management. Disabled Enabled[Default], Enable/Disable C1E. When enabled, CPU will switch Enhanced C-States Disabled to minimum speed when all cores enter C-State. 36 NUC-TGU Quick Reference Guide... -
Page 37: Pch-Fw Configuration
Quick Reference Guide 3.6.2.4 PCH-FW Configuration 3.6.2.4.1 Firmware Update Configuration Item Option Description Disabled[Default], ME FW Image Re-Flash Enable/Disable Me FW Image Re-Flash function. Enabled NUC-TGU Quick Reference Guide 37... -
Page 38: Trusted Computing
Item Options Description Enables or Disables BIOS support for security device. Disable, Security Device Support O.S. will not show Security Device. TCG EFI protocol Enable[Default] and INT1A interface will not be available. 3.6.2.6 APCI Settings 38 NUC-TGU Quick Reference Guide... -
Page 39: Super Io Configuration
You can use this item to set up or change the Super IO configuration for serial ports. Please refer to 3.6.2.7.1 ~ 3.6.2.7.2 for more information. Item Description Serial Port 1 Configuration Set Parameters of Serial Port 1 (COMA). Serial Port 2 Configuration Set Parameters of Serial Port 2 (COMB). NUC-TGU Quick Reference Guide 39... -
Page 40: Serial Port 1 Configuration
IO=3F8h; IRQ=4, IO=3F8h; IRQ=3,4,5,6,7,9,10,11,12 Select an optimal settings for Super IO Change Settings IO=2F8h; IRQ=3,4,5,6,7,9,10,11,12 Device. IO=3E8h; IRQ=3,4,5,6,7,9,10,11,12 IO=2E8h; IRQ=3,4,5,6,7,9,10,11,12 UART 232[Default] Change the Serial Port as UART 232 422 485 UART 422 RS232/422/485. UART 485 40 NUC-TGU Quick Reference Guide... -
Page 41: Serial Port 2 Configuration
IO=2F8h; IRQ=3, IO=3F8h; IRQ=3,4,5,6,7,9,10,11,12 Select an optimal settings for Super IO Change Settings IO=2F8h; IRQ=3,4,5,6,7,9,10,11,12 Device. IO=3E8h; IRQ=3,4,5,6,7,9,10,11,12 IO=2E8h; IRQ=3,4,5,6,7,9,10,11,12 UART 232[Default] Change the Serial Port as UART 232 422 485 UART 422 RS232/422/485. UART 485 NUC-TGU Quick Reference Guide 41... -
Page 42: Hw Monitor
Enable or disable System wake on alarm event. Select Disabled[Default], Fixed Time, system will wake on the hr::min::sec specified. Wake system from S5 Fixed Time Select Dynamic Time, System will wake on the current time Dynamic Time + Increase minute(s). 42 NUC-TGU Quick Reference Guide... -
Page 43: Usb Configuration
Auto[Default] Floppy enumerates devices according to their media Mass Storage Devices Forced FDD format. Optical drives are emulated as ‘CDROM’, drives with no media will be Hard Disk CD-ROM emulated according to a drive type. NUC-TGU Quick Reference Guide 43... -
Page 44: Network Stack Configuration
NUC-TGU 3.6.2.11 Network Stack Configuration Item Options Description Enabled Network Stack Enable/Disable UEFI Network Stack. Disabled[Default] 3.6.2.12 NVMe Configuration 44 NUC-TGU Quick Reference Guide... -
Page 45: Chipset
Quick Reference Guide 3.6.3 Chipset 3.6.3.1 System Agent (SA) Configuration Item Option Description Enabled[Default] VT-d VT-d capability. Disabled NUC-TGU Quick Reference Guide 45... -
Page 46: Memory Configuration
NUC-TGU 3.6.3.1.1 Memory Configuration 3.6.3.1.2 Graphics Configuration Item Option Description Auto[Default] IGFX Select which of IGFX/PEG/PCI Graphics device Primary Display should be Primary Display Or select SG for Switchable Gfx. 46 NUC-TGU Quick Reference Guide... -
Page 47: Vmd Setup Menu
Quick Reference Guide 3.6.3.1.3 VMD setup menu Item Option Description Enabled Enable VMD controller Enable/Disable VMD controller. Disabled[Default] 3.6.3.2 PCH-IO Configuration Item Option Description Enabled[Default], PCH LAN Controller Enable/Disable onboard NIC. Disabled NUC-TGU Quick Reference Guide 47... -
Page 48: Pci Express Configuration
Option Description PCI Express Root Port 6(M.2 Enabled[Default], Control the PCI Express Root Port. KeyE) Disabled Set the ASPM Level: Force L0s – Force all Disabled[Default], ASPM links to L0s State AUTO – BIOS auto 48 NUC-TGU Quick Reference Guide... -
Page 49: Pci Express Root Port 8(Lan2-I225)
L0s State AUTO – BIOS auto ASPM configure DISABLE – Disables ASPM. L0sL1 Auto Disabled, L1 Substates L1.1 PCI Express L1 Substates settings. L1.1 & L1.2[Default] Auto[Default] Gen1 PCIe Speed Configure PCIe Speed. Gen2 Gen3 NUC-TGU Quick Reference Guide 49... -
Page 50: Pci Express Root Port 11(M.2 Keyb)
L0s State AUTO – BIOS auto ASPM configure DISABLE – Disables ASPM. L0sL1 Auto Disabled, L1 Substates L1.1 PCI Express L1 Substates settings. L1.1 & L1.2[Default] Auto[Default] Gen1 PCIe Speed Configure PCIe Speed. Gen2 Gen3 50 NUC-TGU Quick Reference Guide... -
Page 51: Sata And Rst Configuration
Quick Reference Guide 3.6.3.2.2 SATA And RST Configuration Item Options Description Enabled[Default] SATA Controller(s) Enable/Disable SATA Device. Disabled, Enabled[Default] Port 0 Enable or Disable SATA Port. Disabled 3.6.3.2.3 HD Audio Configuration NUC-TGU Quick Reference Guide 51... -
Page 52: Board & Panel Configuration
50 sec Watch Dog Select WatchDog. 1 min 2 min 10 min 30 min Disabled Enable/Disabled USB Standby Power USB Standby Power(Rear) Enabled[Default] during S3/S4/S5. Disabled Enable/Disabled USB Standby Power USB Standby Power(Internal) Enabled[Default] during S3/S4/S5. 52 NUC-TGU Quick Reference Guide... -
Page 53: Show Dmi Info
Quick Reference Guide 3.6.3.3.1 SHOW DMI INFO 3.6.4 Security Administrator Password Set setup Administrator Password User Password Set User Password NUC-TGU Quick Reference Guide 53... -
Page 54: Secure Boot
Platform Key(PK) is enrolled and the System is in User Enabled mode. The mode change requires platform reset. Secure Boot mode selector: Standard/Custom. In Standard Secure Boot Mode Custom mode Secure Boot Variables can be configured Custom[Default] without authentication. 54 NUC-TGU Quick Reference Guide... -
Page 55: Key Management
Quick Reference Guide 3.6.4.1.1 Key Management Item Option Description Install factory default Secure Boot keys after Disabled[Default] Factory Key Provision the platform reset and while the System is in Enabled Setup mode. 3.6.5 Boot NUC-TGU Quick Reference Guide 55... -
Page 56: Save And Exit
Enables or disables boot with initialization of a Disabled[Default] Fast Boot minimal set of devices required to launch active Enabled boot option. Has no effect for BBS boot optios. Boot Option #1/2 Set the system boot order. 3.6.6 Save and exit 56 NUC-TGU Quick Reference Guide... -
Page 57: Save Changes And Reset
This option restores all BIOS settings to the factory default. This option is useful if the controller exhibits unpredictable behavior due to an incorrect or inappropriate BIOS setting. 3.6.6.4 Launch EFI Shell from filesystem device Attempts to Launch EFI Shell application (Shellx64.efi) from one of the available filesystem devices. NUC-TGU Quick Reference Guide 57... -
Page 58: Drivers Installation
NUC-TGU 4. Drivers Installation Note: Installation procedures and screen shots in this section are for your reference and may not be exactly the same as shown on your screen. 58 NUC-TGU Quick Reference Guide... -
Page 59: Install Chipset Driver
Windows 10 operation system. If the warning message appears while the installation process, click Continue to go on. Step 3. Click Install. Step1. Click Next. Step 4. Setup completed. Step 2. Click Accept. NUC-TGU Quick Reference Guide 59... -
Page 60: Install Vga Driver
Windows 10 operation system. Step 3. Click Start. Step 4. Click Finish to complete setup. Step 1. Click Begin installation. Step 2. Click Next to accept license agreement. 60 NUC-TGU Quick Reference Guide... -
Page 61: Install Lan Driver
Windows 10 operation system. If the warning message appears while the installation process, click Continue to go on. Step1. Click OK to Install. Step 2. Setup completed. NUC-TGU Quick Reference Guide 61... -
Page 62: Install Serial Io Driver
Windows 10 operation system. Step 3. Click Next. Step 1. Click Next to continue installation. Step 4. Click Next. Step 2. Click Next. Step 5. Click Finish to complete setup. 62 NUC-TGU Quick Reference Guide... -
Page 63: Install Audio Driver
4.5 Install Audio Driver Note: The installation procedures and screen shots in this section are based on Windows 10 operation system. Step 1. Step1. Click Next to Install. Step 2. Click Finish to complete setup. NUC-TGU Quick Reference Guide 63... -
Page 64: Install Me Driver
Note: The installation procedures and screen shots in this section are based on Windows 10 operation system. Step 3. Click Next Step 4. Click Finish to complete the setup. Step 1. Click Next to continue setup. Step 2. Click Next. 64 NUC-TGU Quick Reference Guide... -
Page 65: Install Realtek Audio Control Driver
Quick Reference Guide 4.7 Install Realtek Audio Control Driver Note: The installation procedures and screen shots in this section are based on Windows 10 operation system. Step 1. Click Install. Step 2. Setup completed. NUC-TGU Quick Reference Guide 65...
