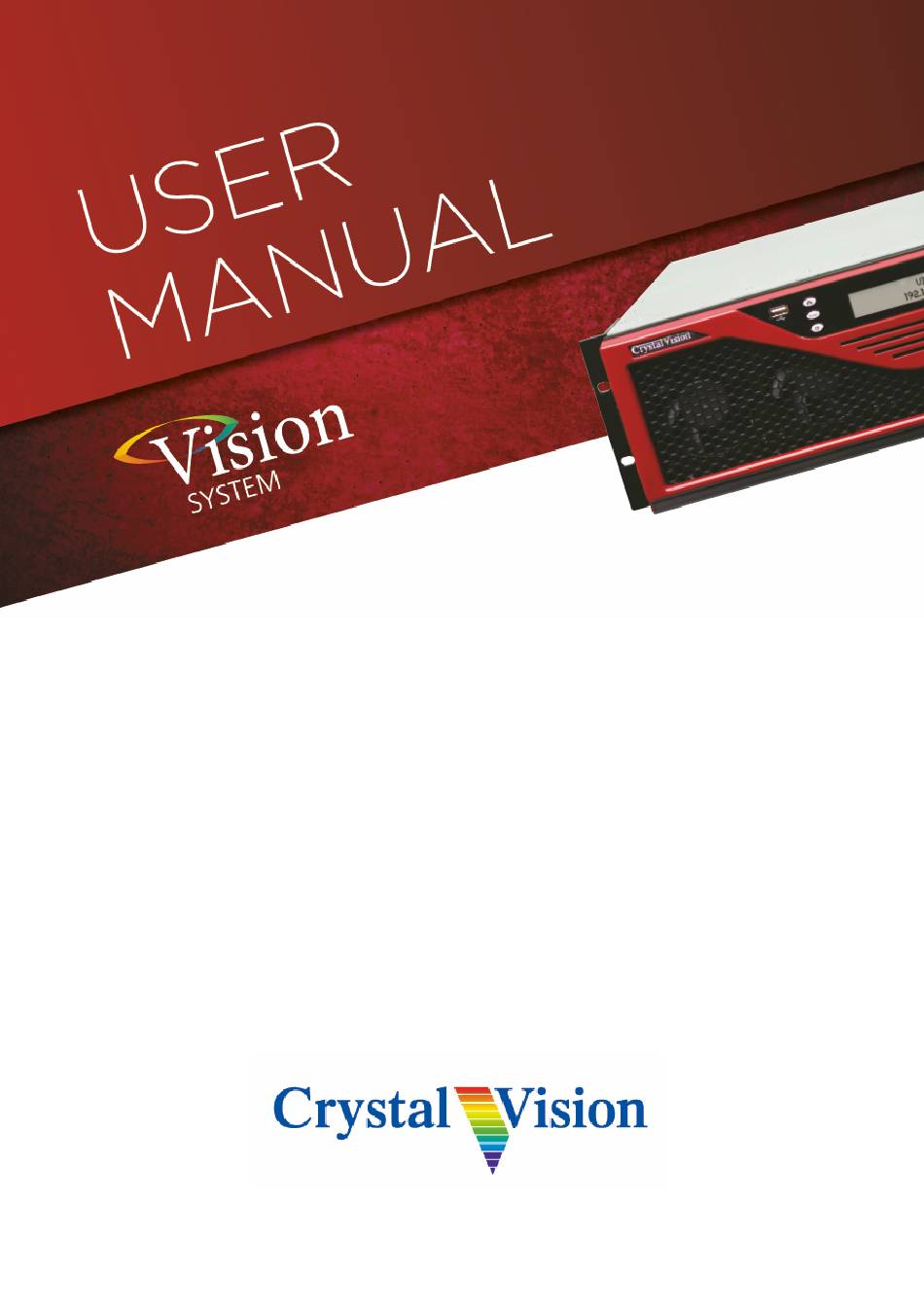

- Page 1 M-VIVID IP/SDI video delays Crystal Vision Ltd., Lion Technology Park, Station Road East, Whittlesford, Cambridge, CB22 4WL, England. Tel: +44(0) 1223 497049 sales@crystalvision.tv www.crystalvision.tv...
-
Page 2: Table Of Contents
Crystal Vision M-VIVID User Manual Contents Introduction Block Diagrams Hardware Installation Rear module signal IO I/O Configuration Configuring the Ethernet Interfaces Enabling Inputs & Outputs Select I/O Protocol Receiving an IP Flow Transmitting an IP Flow Status Input Video status... - Page 3 Crystal Vision M-VIVID User Manual References and Output Timing References Status Reference configuration PTP Configuration PTP Statistics Output timing Output Timing Traffic Shaping Profile Traffic Shaping Profiles Input Format, Input Loss and Test Pattern Options Input Format and On Loss of Input...
- Page 4 Crystal Vision M-VIVID User Manual Revision 3 User interface screen shots updated to align with V2.3 MARBLE-V1 and V1.19 18/08/22 Vision 3 software releases. Added new audio monitoring and audio mute features. Added new preset features. Updated use of flow terminology.
-
Page 5: Introduction
Crystal Vision Introduction 1 Introduction M-VIVID is a range of 3G/HD/SD-SDI video frame delay software apps that run on the MARBLE-V1 media processor – purpose-built GPU/CPU hardware that fits in the Vision frame. They can be used to match any short or long system delays in IP, SDI or mixed installations, such as those caused by virtual studio graphics, MPEG encoders and decoders, audio processing, HD radio links, satellite links and aggregated signal path delays. - Page 6 Crystal Vision Introduction Internal test patterns • • Support for unicast and multicast transmission • Full range of VLAN support • Supports IGMP V1, V2 and V3 • Flexible remote control and monitoring using frame integrated control panel, VisionPanel remote control panel, ASCII and JSON protocols, SNMP and the web browser-based VisionWeb Control •...
-
Page 7: Block Diagrams
Crystal Vision Block Diagrams 2 Block Diagrams M-VIVID800 M-VIVID User Manual R1.3 18 August 2022... - Page 8 Crystal Vision Block Diagrams M-VIVID400-2 (M-VIVID200-2 same, except 200 frames delay per flow) M-VIVID User Manual R1.3 18 August 2022...
- Page 9 Crystal Vision Block Diagrams M-VIVID100-3 M-VIVID User Manual R1.3 18 August 2022...
-
Page 10: Hardware Installation
The potentiometers on the card are factory set and should not be adjusted. There are no user-selectable links. The app based MARBLE-V1 cards are intended for use only in the Crystal Vision ‘Vision’ frame range and not in older style frames such as ‘Indigo’. - Page 11 Crystal Vision Hardware Installation M-VIVID100-3 M-VIVID200/400-2 M-VIVID800 SDI 1 SDI Input 1 SDI Input 1 SDI Input 1 SDI 2 SDI Input 2 SDI Input 2 SDI 3 SDI Input 3 SDI 4 SDI Output 1 SDI 5 SDI Output 2...
-
Page 12: O Configuration
Crystal Vision I/O Configuration 4 I/O Configuration VisionWeb web browser control software is recommended for the configuration of the MARBLE-V1 software apps. This is achieved by entering the IP address of the frame into a web browser (10.0.0.201 on Ethernet port 1 of the frame by default). See the Vision 3 frame manual for more information on VisionWeb and frame configuration and operation. - Page 13 Crystal Vision I/O Configuration In a fully IP environment, the following example shows how the M-VIVID400-2 primary and protect input and output flows could be assigned to individual virtual interfaces. As previously mentioned, it is also possible to assign all flows to the same interface.
-
Page 14: Enabling Inputs & Outputs
Crystal Vision I/O Configuration 4.2 Enabling Inputs & Outputs By default M-VIVID inputs and outputs are disabled. Use the Enable control within the Input and Output menus to enable them. M-VIVID Input Enable M-VIVID Output Enable M-VIVID User Manual R1.3... -
Page 15: Select I/O Protocol
Crystal Vision I/O Configuration 4.3 Select I/O Protocol M-VIVID supports SDI and uncompressed video over IP protocols ST 2022 and ST 2110-20. It is possible to mix protocols between inputs and outputs. For example, an ST 2022 input can be output as SDI. -
Page 16: Receiving An Ip Flow
Crystal Vision I/O Configuration 4.4 Receiving an IP Flow M-VIVID receives ST 2022 or ST 2110-20 video over IP flows using the 10GbE network interfaces on the VR04, VR06 or VR07 Vision frame rear connector. Typically Eth 1 is used for receiving and transmitting the ‘primary’... -
Page 17: Transmitting An Ip Flow
Crystal Vision I/O Configuration 4.5 Transmitting an IP Flow M-VIVID transmits ST 2022 or ST 2110-20 video over IP flows using the 10GbE network interfaces on the VR04, VR06 or VR07 Vision frame rear connector. Typically Eth 1 is used for receiving and transmitting the ‘primary’... - Page 18 Crystal Vision I/O Configuration VLANs, ports and Time To Live (TTL) should be configured as per the network switch requirements. If required a valid SSRC (Synchronisation source identifier) can be entered, otherwise left blank or set to 0 will accept all.
-
Page 19: Status
Crystal Vision Status 5 Status 5.1 Input Video status Input video status Video Status Enabled LED: Green when input is enabled, otherwise off Present LED: Green when input is present, otherwise off Time present: Length of time input has been present Format: Read only text showing video format e.g. -
Page 20: Input Audio Status
Crystal Vision Status 5.2 Input Audio status Input audio status Audio Status Audio Group 1 to 4 present LED: Green when audio groups present, otherwise off Audio Channel 1 to 16 present LED: Green when audio channels present, otherwise Audio Group 1 to 16 silent LED:... -
Page 21: Network Status & Statistics
Crystal Vision Status 5.4 Network Status & Statistics Input network status Enabled LED: Green when input is enabled, otherwise off Present LED: Green when input is present, otherwise off Error LED: Red if lost or duplicate packets detected at input, otherwise off... -
Page 22: Network In/Protect Network In Pkts
Crystal Vision Status Network In/Protect Network In pkts Lost: Number of lost packets Duplicate: Number of duplicate packets Min gap: Minimum gap between packets (nSec) Max gap: Maximum gap between packets (nSec) Mean gap: Mean gap between packets of a frame (nSec) M-VIVID User Manual R1.3... -
Page 23: Video Delay
Crystal Vision Video Delay 6 Video Delay 6.1 Applying Frame Delay M-VIVID is available as the following options: • M-VIVID100-3 triple channel with up to 100 frames delay per channel M-VIVID200-2 • dual channel with up to 200 frames delay per channel M-VIVID400-2 •... -
Page 24: Output Routing
Crystal Vision Video Delay 6.2 Output Routing The dual channel M-VIVID400-2/M-VIVID200-2 and triple channel M-VIVID100-3 feature independent video delay on each of the outputs. Default routing is 1>1, 2>2 and 3>3. However, it is possible to route one input to all outputs, with different frame delays set for each output. -
Page 25: References And Output Timing
Crystal Vision References and Output Timing 7 References and Output Timing 7.1 References M-VIVID outputs can be locked to a PTP clock, an analogue tri-level or Black & Burst sync or the SDI input if present and selected as the input protocol. If the chosen reference sources are absent at power up, the outputs will freerun to an internally generated clock. -
Page 26: Reference Configuration
Crystal Vision References and Output Timing Reference configuration Reference Configuration Reference source: Select priority order of reference source. Will automatically fail-over to next source in list if priority source missing Auto relock enable: Automatically relocks to priority reference source upon its return... -
Page 27: Ptp Statistics
Crystal Vision References and Output Timing PTP Statistics PTP statistics Network delay: Calculated delay between MARBLE-V1 card and the master PTP clock. Expected to be small if network switch is PTP-aware, otherwise will reflect number of switches between MARBLE-V1 card and the master PTP source Delay variation: Indicates system noise and how accurately MARBLE-V1 can lock. - Page 28 Crystal Vision References and Output Timing Time adjustment sliders: Sub-frame adjustment of output timing relative to reference source Format to modify: Independently adjust output timing for each video format Apply to all formats: Select to apply the output timing adjustment to all video formats...
-
Page 29: Traffic Shaping Profile
Crystal Vision Traffic Shaping Profile 8 Traffic Shaping Profile 8.1 Traffic Shaping Profiles SMPTE ST 2022 transmits using a narrow linear profile, with all packets evenly spaced throughout the duration of each entire traditional corresponding SDI video frame. SMPTE ST 2110-20 supports both narrow linear (TPNL) and narrow gapped (TPN) transmission. -
Page 30: Input Format, Input Loss And Test Pattern Options
Crystal Vision Input Format, Input Loss and Test Pattern Options 9 Input Format, Input Loss and Test Pattern Options 9.1 Input Format and On Loss of Input All apps provide an Input Format control. If set to ‘All’, any input format present is deemed valid. -
Page 31: Internal Test Patterns
Crystal Vision Input Format, Input Loss and Test Pattern Options 9.2 Internal Test Patterns The following internal test patterns are provided which, when enabled, replace the outgoing video content with the selected test pattern. Internal Test Pattern option 9.3 Audio mute Embedded audio present in SDI or ST 2022 inputs will be passed through to the outputs. -
Page 32: Unicast Flow Configuration
Crystal Vision Unicast Flow Configuration 10 Unicast Flow Configuration To transmit a unicast flow, the output network video ‘Destination address’ should be the IP address of the downstream Ethernet Interface you want to transmit to. The example below shows that rather than transmitting using a multicast address, interface 1:2 on the M-VIVID is now set to transmit the flow to a downstream device with IP address 192.168.0.80. - Page 33 Crystal Vision Unicast Flow Configuration When receiving a unicast flow, the input network video ‘Multicast address’ should be set to 0.0.0.0. The ‘Source address’ can be one of two options. If set to 0.0.0.0 it will accept any source transmitting to its virtual interface IP address. This is acceptable if it is known only one device at a time will be transmitting to it.
-
Page 34: Basic Trouble Shooting
Crystal Vision Basic Trouble Shooting 11 Basic Trouble Shooting 11.1 No input or output signals present • Confirm using GUI status LEDs whether the problem is input or output related • Check SDI and fibre cabling • Check inputs are enabled (off by default) •... -
Page 35: Specification
Crystal Vision Specification 12 Specification M-VIVID100-3, M-VIVID200-2, M-VIVID400-2 AND M-VIVID800 APPS RUNNING ON MARBLE-V1 MEDIA PROCESSOR MECHANICAL ‘Double slot’ Vision card 96mm x 303mm (96mm x 325mm including finger pull) Weight: 355g Power consumption: 25 Watts, plus 1 Watt for each SFP+ fitted to MARBLE-V1... - Page 36 Crystal Vision Specification Packet distribution is not important as variable input buffer will compensate for any timing irregularities. Any traffic shaping option from ST 2110-21 can be used, or packets can come from a device which does not meet the shaping requirement of ST 2110-21 A protect input for SMPTE ST 2022-7 seamless protection switching or the equivalent protect input in ST 2110-20 can come from any of the 10GbE IP network interfaces.
- Page 37 2022) is selectable per IP output between TPNL and TPN (narrow linear or narrow gapped packet distribution). There is also a mode for burst packet distribution with a control for the burst rate limit. This is for connecting between Crystal Vision and other compatible devices that allow for a reduced transmission delay...
- Page 38 Crystal Vision Specification M-VIVID100-3 DELAY Delay adjustable in steps of frames Each channel has its own delay control Minimum delay: 8ms Maximum delay: 100 frames per channel, which is: • 4.16 seconds (1080p23.98, 1080p24, 1080PsF23.98, 1080PsF24, 2048x1080p23.98, 2048x1080p24, 2048x1080PsF23.98, 2048x1080PsF24) •...
- Page 39 Crystal Vision Specification • 16 seconds (720p50, 1080p50) • 13.33 seconds (720p59.94, 720p60, 1080p59.94, 1080p60, 1080PsF29.97) LIVE DELAY ADJUSTMENTS Delay adjustments can be made live. The apps apply the adjustments slowly over time, with small delay adjustments therefore going virtually unnoticed. Increasing the delay slows down...
- Page 40 Crystal Vision Specification • PTP>SDI>Hold (“PTP” means PTP Master>PTP Backup. “SDI” means SDI1>SDI2>SDI3>SDI4>SDI5>SDI6, dependent on number of SDI available. “Hold” means it will hold the timing of the last good reference) When using video reference, video inputs can be different formats but only inputs with the same frame rate as reference video will be locked to that reference.
- Page 41 Crystal Vision Specification • Audio present on group 1 channel 1 Audio present on group 1 channel 2 • Audio present on group 1 channel 3 • Audio present on group 1 channel 4 • Audio present on group 2 channel 5 •...
- Page 42 Crystal Vision Specification • Ignored multicast packets. LED indicates multicast traffic not requested by the app is present on the Ethernet Interface, indicating incorrectly configured IGMP at the network switch References are monitored for: • Reference 1 and 2 present and time present •...
