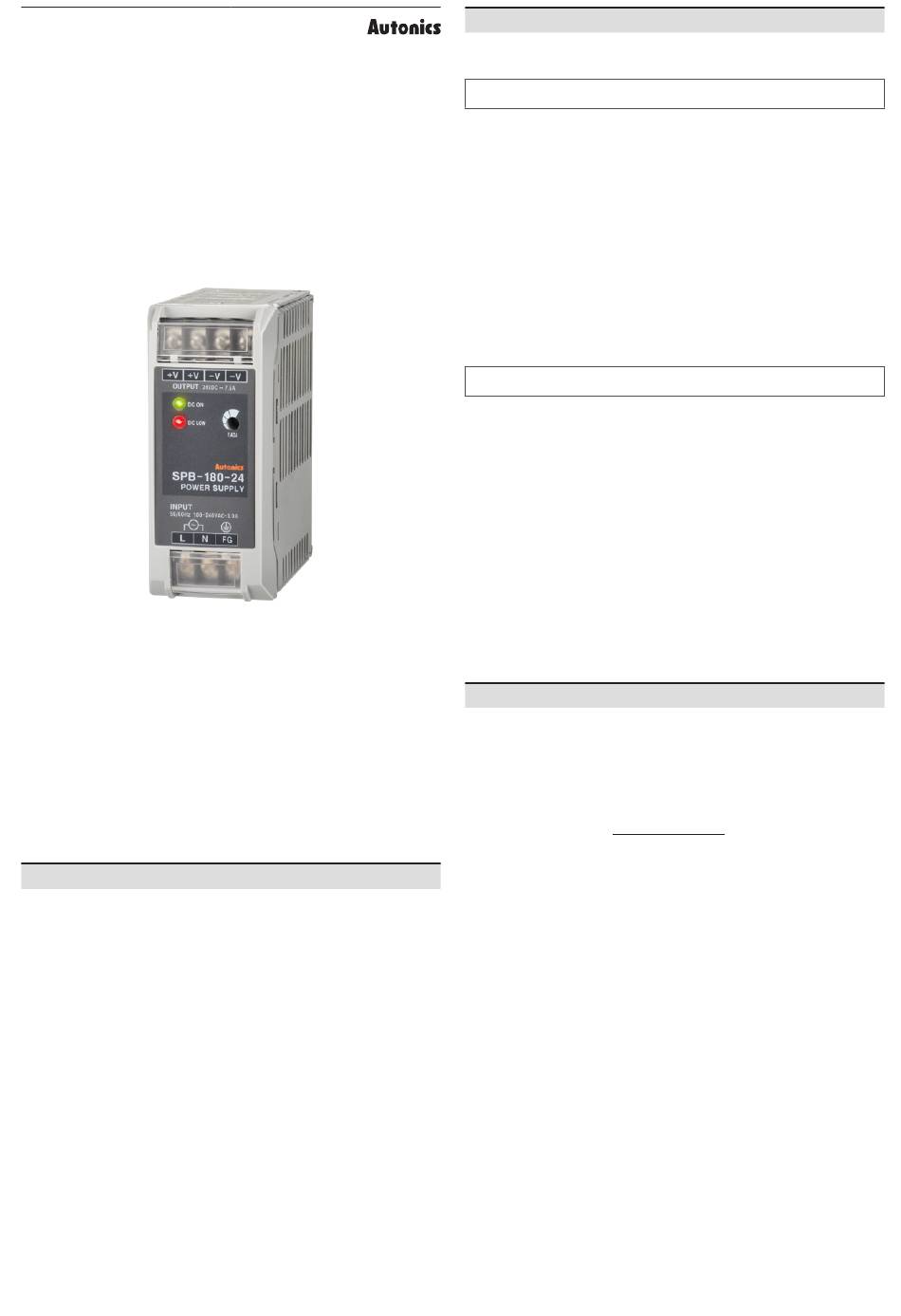

Autonics SPB Series Product Manual

DRW161291AE

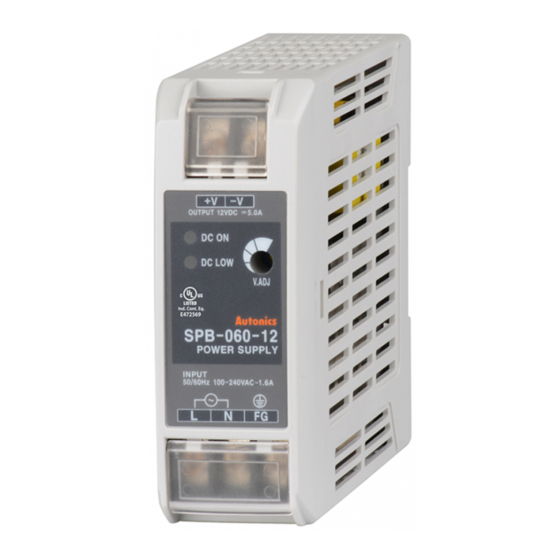

DIN-Rail Mount SMPS
SPB Series
PRODUCT MANUAL
For your safety, read and follow the considerations written in the instruction
manual, other manuals and Autonics website.
The specifications, dimensions, etc. are subject to change without notice for product
improvement. Some models may be discontinued without notice.
Major Features
• Efficient power conversion
- High conversion efficiency up to 92% with LLC circuit (SPB-240)
- Stable power supply with minimal noise and ripple
• Space efficient design
- Slim and compact size for maximum space efficiency
- Uniform depth size (except SPB-015/030) for neat and tidy installation
• Safety and user-friendly features
- Terminal protection cover (SPB-060/120/180/240)
- Easy wiring with rising clamp terminal (SPB-015/030)
- Inrush current prevention, output over-current prevention, output over-voltage
prevention, output short-circuit protection, circuit over-heating protection
- Low output voltage indicator (red LED), output indicator (green LED)
ᜢ ᜨ ᜫ
Safety Considerations
• Observe all 'Safety Considerations' for safe and proper operation to avoid hazards.
• ᜸ symbol indicates caution due to special circumstances in which hazards may occur.
᜸ Warning
Failure to follow instructions may result in serious injury or death.
01. Fail-safe device must be installed when using the unit with machinery that
may cause serious injury or substantial economic loss. (e.g. nuclear power
control, medical equipment, ships, vehicles, railways, aircraft, combustion
apparatus, safety equipment, crime/disaster prevention devices, etc.)
Failure to follow this instruction may result in personal injury, economic loss or fire.
02. Do not use the unit in the place where flammable/explosive/corrosive gas,
high humidity, direct sunlight, radiant heat, vibration, impact, or salinity
may be present.
Failure to follow this instruction may result in explosion or fire.
03. Install on the DIN rail, and ground to the F.G. terminal separately.
Failure to follow this instruction may result in fire or electric shock.
04. Do not connect, repair, or inspect the unit while connected to a power
source.
Failure to follow this instruction may result in fire or electric shock.
05. Check 'Wiring Diagram' before wiring.
Failure to follow this instruction may result in fire.
06. Do not disassemble or modify the unit.
Failure to follow this instruction may result in fire or electric shock.
᜸ Caution
Failure to follow instructions may result in injury or product damage.
01. When connecting the F.G. terminal, use AWG 14 (2.1mm
tighten the terminal screw with a tightening torque of 0.7 to 0.9N·m.
When connecting the F.G. terminal of SPB-015/030 model, tighten the
terminal screw with a tightening torque of 0.3 to 0.5N·m.
Failure to follow this instruction may result in fire or malfunction due to contact
failure.
02. Use the unit within the rated specifications.
Failure to follow this instruction may result in fire, product damage or shortening
the life cycle of the product.
03. Use dry cloth to clean the unit, and do not use water or organic solvent.
Failure to follow this instruction may result in fire or electric shock.
04. Keep the product away from metal chip, dust, and wire residue which flow
into the unit.
Failure to follow this instruction may result in fire or product damage.
05. Do not touch the product during operation or for a certain period of time
after stopping.
Failure to follow this instruction may result in burns.
06. Upon occurrence of an error, disconnect the power source.
Failure to follow this instruction may result in fire or product damage.
Cautions during Use
• Follow instructions in 'Cautions during Use' . Otherwise, it may cause unexpected
accidents.
• Do not connect the output voltage neither in serial nor in parallel.
• Since SPB-015/030/060 models have no harmonic suppression or power factor
correction circuit, install the circuit separately if necessary.
• Since SPB-015/030/060 models use the condenser input method, power factor is
in the range of 0.4 to 0.6. When using distribution board or transformer, check the
capacity of the input voltage.
Output active power[W]
Input apparent power[VA] =
Power factor×Efficiency
• Even though a noise filter is installed inside the product, the product can be affected
by noise depending on the installation location or wiring.
• If the internal fuse is damaged, please contact our A/S center.
) cable or over and
