Autonics SPB Series Quick Start Manual

SPB Series

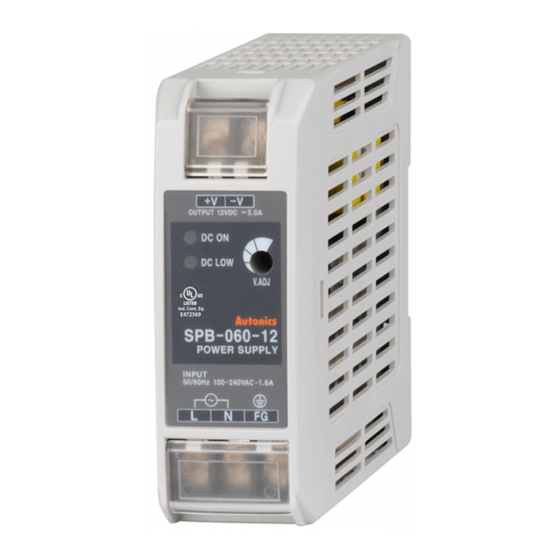

DIN rail mounting switching mode power supply
Features
● DIN rail type and fixing screw type mountings
● Built-in overcurrent protection, output short circuit
protection, overheat and over voltage limit protection
circuit (SPB-120)
● Built-in power factor correction circuit(SPB-120/240)
● Low-voltage LED indicator
● Slim-type size (SPB-060: W36×H100×L110mm)
● Minimizes noise and ripple
● Improves user safety with terminal cover
● Designed to minimize heat
● Output power : 60W, 120W, 240W
● Output voltage: 12VDC, 24VDC, 48VDC
Please read "Caution for your safety" in operation
manual before using.
Ordering information
SPB 060
Output power
Item
Over-heating protection
If the inner temperature of the switching element is around 140 ℃ by overheat, it stops switching operation and becomes
open state. Output voltage is not output.
Specifications
Model SPB-060-12
Output power 60W
Voltage 100-240VAC(85-264VAC)
Frequency 50/60Hz
※ 1
Efficiency Min. 75%
※ 1
Power factor -
※ 1
Current consumption Max. 1.6A
-
Power factor correction circuit
Voltage 12VDC
Current 5A
※ 2
Max. ±5%
Voltage adjustment range
※ 3
Input variation Max. ±0.5%
※ 1
Load variation Max. ±1%
※ 1
Ripple Max. ±1%
※ 1
Start-up time Max. 600ms
※ 1
Hold time Min. 10ms
Max. 25A (100VAC), Max. 40A(240VAC)
Inrush current protection
※ 4
Min. 105%
Output over current protection
-
Output over voltage protection
Max. 10ms
Output short-circuit protection
9.6V±10%
Output low-voltage indicate
Output indicator Green LED
※ 1: It is for the rated input voltage 100-240VAC, and 100% load.
※ 2: Adjusting voltage by the output adjuster (V.ADJ), it is changed the below voltage adjustment range(±5%).
※ 3: It is for the rated input voltage 100-240VAC(85-264VAC), and 100% load.
※ 4: It is for the rated input voltage 100-240VAC.
P-12
24
12
Output voltage
24
48
060
120
240
SPB
SPB-060-24 SPB-120-24
120W
Min. 80%
Min. 0.9
Max. 1.9A
Built-in
24VDC
2.5A 5A
Max. 1000ms
30.0V ±10%
20.0V±10%
SPB-060
SPB-120
Series Series
12VDC
24VDC
48VDC
60W
120W
240W
Switching Mode Power Supply
SPB-240-12
240W
Min. 86%
Max. 3.8A
12VDC
20A
Max. ±1.5%
Max. ±3%
Min. 20ms
Max. 50A(100VAC), Max. 50A(240VAC)
16.0V ±10%
10.0V±10%
SPB-240
Series
SPB-240-24 SPB-240-48
Min. 88%
24VDC 48VDC
10A 5A
Max. 1.5% Max. ±1%
30.0V ±10% 58.0V ±10%
20.0V±10% 43.0V±10%
