Autonics SFDL Series SFDL C Series Product Manual

TCD210162AF_V2

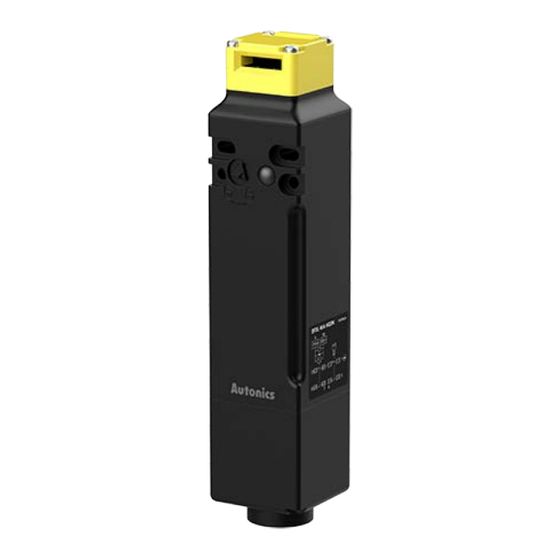

Safety Door Lock Switch
SFDL Series
PRODUCT MANUAL
For your safety, read and follow the considerations written in the instruction
manual, other manuals and Autonics website.
The specifications, dimensions, etc. are subject to change without notice for product
improvement. Some models may be discontinued without notice.
Main Features
• Available to change the direction of inserting the operation key by rotating head
: Inserting the operation key from 5 directions in the top and side
• Various kinds of contact composition
:4-contact (connected), 4-contact (not connected), 5-contact, 6-contact
• Selectable between connector type which reduces working process and
separable terminal type which is useful for maintenance
• Manual unlock function to handle the emergency
: Cross type/special type release key line-up
• Minimized solenoid heat with stable current supply
• Excellent solidity/durability of metallic head
• Applicable to various applications using the slide key unit accessory
᜽ ᜨ ᜪ ᜫ
GB/T14048.5
Safety Considerations
• Observe all 'Safety Considerations' for safe and proper operation to avoid hazards.
• ᜸ symbol indicates caution due to special circumstances in which hazards may occur.
᜸ Warning
Failure to follow instructions may result in serious injury or death.
01. Fail-safe device must be installed when using the unit with machinery that may cause
serious injury or substantial economic loss. (e.g. nuclear power control, medical equipment,
ships, vehicles, railways, aircraft, combustion apparatus, safety equipment, crime/disaster
prevention devices, etc.)
Failure to follow this instruction may result in personal injury, economic loss or fire.
02. System manager means followings;
- a personnel who is fully aware of installation, setting, operation, and maintenance of the
product
- a personnel who well observes standard/regulation/statute on the product by type of
machine the product installed in and nation/region the product used in
Machine user means a personnel who is appropriately trained about using machine by the
system manager, so that machine user can operate the machine correctly.
System manager has duty to train the machine user about operation of the product.
Machine user has to report directly to the system manager when unusual status has been
found while system is operating.
Failure to follow this instruction may result in personal injury, economic loss or fire.
03. The product has to be installed, set, and combined with machine control system by the
qualified system manager.
Failure to follow this instruction may result in personal injury due to unintended operation and
unstable detection.
04. Before using the product, check that function of the product operates as intended while
machine is turned off after installation.
Failure to follow this instruction may result in personal injury due to unintended operation and
unstable detection.
05. Do not use the unit in the place where flammable/explosive/corrosive gas, high humidity,
direct sunlight, radiant heat, vibration, impact, salinity, moisture, or steam, or dust may be
present.
Failure to follow this instruction may result in explosion or fire.
06. Do not disassemble or modify the unit.
Failure to follow this instruction may result in personal injury or fire due to loss of safety function.
07. Do not connect, repair, inspect, or replace the unit while connected to a power source.
Failure to follow this instruction may cause the external devices connected to the product may
unexpectedly operate.
08. Do not defeat, tamper, modify, or bypass the switch and enter the door.
Failure to follow this instruction may result in personal injury.
09. Be cautious about the installing place of the operation key in order to protect worker from
hitting the operation key when the door is opened.
Failure to follow this instruction may result in personal injury.
10. Do not use a head of other product.
Failure to follow this instruction may result in personal injury or fire due to loss of safety function.
11. Install separate safety device to fix door closed, or door can be opened because of vibration
or weight of the door.
Failure to follow this instruction may result in personal injury.
12. Check the installed status of the switch, operating status of the switch, and signs of damage,
modification, tampering of the switch at the following situation and on a weekly basis.
- when operating the safety system at first
- when replacing component of the system
- when the system has not been operated for a long time
Failure to follow this instruction may result in personal injury due to malfunction of the product and
safety function.
13. Solenoid Lock/Mechanical Release type switch is locked with power connected and is
unlocked without power. Be cautious that the switch can be unlocked before complete stop
of the machine when blackout occurs.
Failure to follow this instruction may result in personal injury.
14. Check 'Connections' before wiring. And make sure that there are no safety problems.
Failure to follow this instruction may result in personal injury or fire due to loss of safety function.
᜸ Caution
Failure to follow instructions may result in injury or product damage.
01. Use the unit within the rated specifications.
Failure to follow this instruction may result in fire or product damage.
02. Since solenoid has polarity, wire cables and supply voltage ensuring correct polarity. Do not
supply voltage above the rated voltage specification.
Failure to follow this instruction may result in fire or solenoid damage.
03. Use a dry cloth to clean the unit, and do not use water or organic solvent.
Failure to follow this instruction may result in fire.
04. Keep the door switch away from debris and tighten the screw securely when replacing the
head.
Failure to follow this instruction may result in malfunction.
05. Keep the product away from metal chip, dust, and wire residue which might flow into the
unit.
Failure to follow this instruction may result in fire, product damage or malfunction.
06. Do not use metallic cable gland.
Failure to follow this instruction may result in electric shock due to the damage on the service
entrance.
07. Do not use the switch as a guard door stopper. Install separate mechanical stopper.
Failure to follow this instruction may result in product damage.
08. Carefully manage the spare operation key in order to prevent use of the key without
permission.
Failure to follow this instruction may result in loss of safety function due to insertion of the spare
operation key.
09. Use only Autonics operation key.
Failure to follow this instruction may result in product damage.
10. Install the operation key tightly within the range written in 'Installation' with welding, rivet,
or special bolt in order not to be easily released from the switch.
Failure to follow this instruction may result in product damage.
11. When it comes to the Solenoid Lock/Mechanical Release model, make it to be locked by
supplying power after the door is closed.
Failure to follow this instruction result in malfunction, if the power is supplied when the door is
opened.
12. When changing the direction of the head, make sure that the cam inside the head does not
rotate.
Failure to follow this instruction result in malfunction.
13. Do not apply the power over 0.2 N·m on the release key and do not use tools that may apply
strong force, such as an electric screwdrivers.
Failure to follow this instruction may result in product damage.
