Coupler manual
Field Network Devices

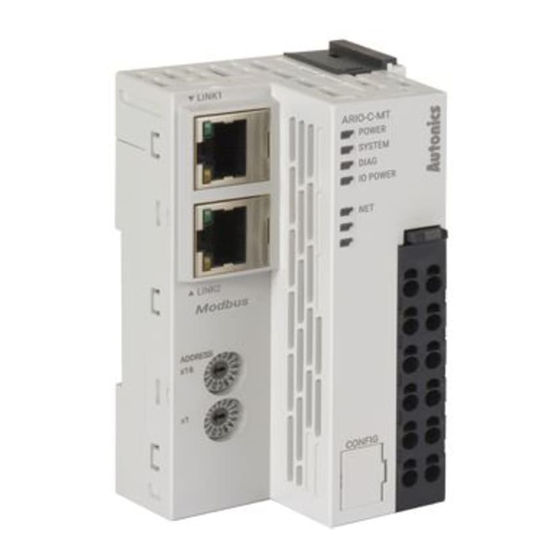

ARIO-C-MT
(ModbusTCP compatible)
Thank you for purchasing an Autonics product.
This user manual contains information about the product and its proper use, and
should be kept in a place where it will be easy to access.
www.autonics.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ARIO-C-MT and is the answer not in the manual?

Questions and answers

Related Manuals for Autonics ARIO-C-MT

Summary of Contents for Autonics ARIO-C-MT

  • Page 1 Field Network Devices ARIO-C-MT (ModbusTCP compatible) Thank you for purchasing an Autonics product. This user manual contains information about the product and its proper use, and should be kept in a place where it will be easy to access. www.autonics.com...
  • Page 2 © Copyright Reserved Autonics Co., Ltd.

  • Page 3: Preface

    Preface Preface Thank you for purchasing Autonics product. Please familiarize yourself with the information contained in the Safety Considerations section before using this product. This user manual contains information about the porduct and its proper use, and should be kept in a place where it will be easy to access.

  • Page 4: Coupler Manual Guide

    Please visit our website (www.autonics.com) to download a copy.  The manual's content may vary depending on changes to the product's software and other unforeseen developments within Autonics, and is subject to change without prior notice. Upgrade notice is provided through our homepage. ...

  • Page 5: Coupler Manual Symbols

    Failure to follow instructions can result in serious injury or death. Failure to follow instructions can lead to a minor injury or product damage. An example of the concerned feature’s use. ※1 Annotation mark. © Copyright Reserved Autonics Co., Ltd.

  • Page 6: Safety Considerations

    Do not cut off power or disconnect connectors (or terminals) while operating the unit. Failure to follow this instruction may result in fire or product damage. ※ The specifications and dimensions of this manual are subject to change without any notice © Copyright Reserved Autonics Co., Ltd.

  • Page 7: Caution During Use

    For removing the terminal, body or base, do not operate units for a long time without it.  This unit may be used in the following environments. ① Indoors ② Altitude max. 2,000m ③ Pollution degree 2 ④ Installation category II © Copyright Reserved Autonics Co., Ltd.

  • Page 8: Table Of Contents

    Memory area ...................... 24 Gather diagnostic information of modules ............24 Process image ....................25 Example of memory map ................... 25 5.6.1 Device......................25 5.6.2 Input process image ................... 25 5.6.3 Output process image ................26 viii © Copyright Reserved Autonics Co., Ltd.

  • Page 9: Table Of Contents

    Table of Contents 5.6.4 Memory map based on field network ............26 Diagnosis function ..................27 Overview ......................27 Diagnostic type ....................27 Definition ......................28 © Copyright Reserved Autonics Co., Ltd.

  • Page 10: Reference Manuals

    DAQMaster, a device integration management program, provides the expanded user convenience. You can use the module setting, real-time control, and monitoring/diagnosis function of input/output signal (except ARIO-C-PN and ARIO-C-PB). Also, you can arrange products through virtual mode and recommended sorting. © Copyright Reserved Autonics Co., Ltd.

  • Page 11: Protocol Overview

    Simple and robust, it has become the de facto standard communication protocol and is currently used to connect industrial electronics. ARIO-C-MT, Modbus TCP-Based Coupler, synchronizes the data of all connected I / O modules with Modbus TCP. The coupler determines the physical structure of the node and automatically creates a local process image of all the I / O.

  • Page 12: Input Register

    - 3: Error of Extension Module 0126 The number of connected modules Address Initial Type Description Value Function Register 1034~1037 Modbus Master IP (Client) 192.168.1. Control Station 1038~1041 Modbus Slave IP (Server) 192.168.1.X Controlled Station (Coupler) © Copyright Reserved Autonics Co., Ltd.
  • Page 13 Accessible Modbus Master IP 5 1068~1071 Accessible Modbus Master IP 6 1072~1075 Accessible Modbus Master IP 7 1076~1079 Accessible Modbus Master IP 8 1080~1083 Accessible Modbus Master IP 9 1084~1087 Accessible Modbus Master IP 10 © Copyright Reserved Autonics Co., Ltd.

  • Page 14: Holding Register

    1068~1071 Accessible Modbus Master IP 6 03/06/16 1072~1075 Accessible Modbus Master IP 7 03/06/16 1076~1079 Accessible Modbus Master IP 8 03/06/16 1080~1083 Accessible Modbus Master IP 9 03/06/16 1084~1087 Accessible Modbus Master IP 10 © Copyright Reserved Autonics Co., Ltd.

  • Page 15: Specifications

    Rotary switch for communication setting in ARIO (Station no.) Topology Bus, Tree, Star Installation method DIN rail mounting PC connection with USB 2.0 Micro type connector Setting and monitoring (comprehensive device management program, DAQMaster) © Copyright Reserved Autonics Co., Ltd.
  • Page 16 ※2. If it over the limit size or connected units, system may be error. ※3. Autonics test standard ※4. The weight includes packaging. The weight in parenthesis is for unit only. ※ Environment resistance is rated at no freezing or condensation. © Copyright Reserved Autonics Co., Ltd.

  • Page 17: Hardware

    4 Hardware Hardware Dimensions (1) Coupler (2) End module © Copyright Reserved Autonics Co., Ltd.

  • Page 18: Unit Descriptions

    6. ABUS comm. connector: Input terminal that supplies circuit driving power of the coupler, ABUS, and modul by receiving 24VDC. I/O power supply : Supplies power for input / output signal of module by receiving DC, AC, etc. © Copyright Reserved Autonics Co., Ltd.

  • Page 19: Rotary Switch For Communication Setting

    You can also change the IP address arbitrarily via DAQMaster. [Example] ‘12h' of the switch means '192.168.2.18'. However, if settings of switches are all '00', the station number (IP address) is set based on the information that the coupler saves. © Copyright Reserved Autonics Co., Ltd.

  • Page 20: Status Indicator

    There is no maximum ㅡ removed module, module is connected module / is inserted. operating module.(re data size covery (normal operation) (recovery exceeded failed) failed) ㅡ ㅡ ㅡ ㅡ ㅡ Green POWER © Copyright Reserved Autonics Co., Ltd.
  • Page 21 State on offline or no network power MAC address test incomplete Data exchange timeout Flashing Communication connection timeout (lave is not connected, no network power) Serious errors in the network such as connection, network, and duplicate MAC address © Copyright Reserved Autonics Co., Ltd.

  • Page 22: Memory Map

    If the I / O form is smaller than the data handling method, the space is filled with zeros (pending) and managed. Ex) ARIO-S-DI04P has 4 bits of data. In this case, □□□□ B B B B but, ARIO series transfers 0000BBBB by replacing □ area with number 0. © Copyright Reserved Autonics Co., Ltd.

  • Page 23: Memory Structure

    In addition, the coupler provides input and output information of the unit in accordance with the data size set in the field network. When the diagnosis function is activated, the coupler provides data embed with additional input area. © Copyright Reserved Autonics Co., Ltd.

  • Page 24: Memory Area

    The coupler transmits the diagnostic information of itself and modules to the master of field network according to the settings, which is cyclically updated. This information allows you to remotely check the status of each coupler. © Copyright Reserved Autonics Co., Ltd.

  • Page 25: Process Image

    Analog input module 2, channel 2, High byte Analog input module 2, channel 2, Low byte DI2P4 DI2P3 DI2P2 DI2P1 DI3P4 DI3P3 DI3P2 DI3P1 DI1P1 stands for 1st Point of Digital Input Module 1. © Copyright Reserved Autonics Co., Ltd.

  • Page 26: Output Process Image

    402003 2003 only read 402004 2004 only read 402001 06/16 2001 AO1CH1H AO1CH1L only write 402002 06/16 2002 AO1CH1H AO1CH1L only write 402003 06/16 2003 only write 402004 06/16 2004 only write © Copyright Reserved Autonics Co., Ltd.

  • Page 27: Diagnosis Function

    Save to the memory map via the cyclic internal bus communication of the Message transfer product method In case of the interrupt setting, immediate bus communication starts when an error occurs Display on the product (coupler) and module according to the diagnostic information © Copyright Reserved Autonics Co., Ltd.

  • Page 28: Definition

    All module is not connected, the number of modules is out of the range, module size is out of range, module is not recognized via ABUS ABUS due to the abnormal coupler configuration. Constructor 0: Module configuration completed (configuration state of ABUS) 1: Incomplete module configuration © Copyright Reserved Autonics Co., Ltd.
  • Page 29 * Dimensions or specifications on this manual are subject to change and some models may be discontinued without notice. MOO-ARIOCMTU-V1.1-1905US...
