INSTALLATION MANUAL, USE AND CARE AND WARRANTY FOR
CUISINE
SEALED
TOWER BURNERS
(Model Numbers
on page 13)

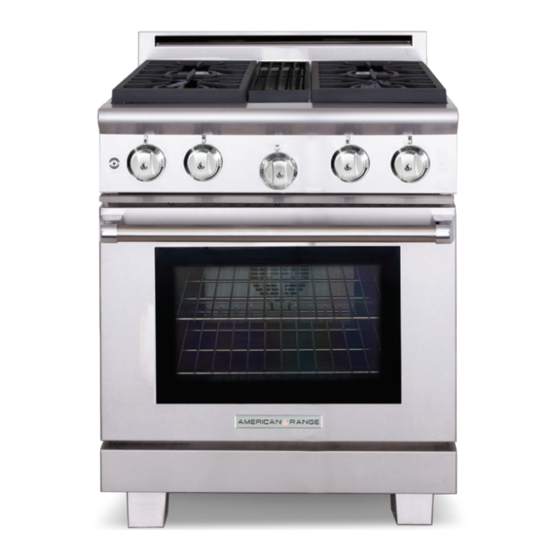

CUISINE
ARR-503
DESIGN
BEFORE USING YOUR APPLIANCE, PLEASE READ THIS MANUAL, PAYING SPECIAL ATTENTION TO THE
IMPORTANT SAFETY INSTRUCTIONS LOCATED IN THE NEXT SEVERAL PAGES
This manual is divided into several sections: (Model numbers for Cuisine Burner Ranges page 13 and Performer Burner Ranges page 14)
Important Safety Instructions informs you about significant safety precautions when installing and operating your new appliance.
2
THIS IS A MUST READ SECTION OF THE MANUAL.
Installation Section describes how to unpack the unit, what to save and what to discard, installation dimensions, gas and electrical
7
connections and how to identify the primary parts of the product so you can better understand what's going on "under the hood. "
How to Operate Your Range Section shows you how to light the burners, set the range for broil or bake and how to
16
use convection to speed cooking times and improve the quality of your baked and roasted dishes.
Care and Cleaning discusses how to keep your product in good operating condition, how to identify what might be going wrong
20
with the unit, and how to communicate your observations with authorized field service technicians.
20
Troubleshooting describes how to troubleshoot common issues.
21
Americana Model and Parts Identification shows available parts for your range.
22
Warranty
WARNING
!
» Failure to follow this warning statement could result
in fire, explosion, or burn hazard that could cause
property damage, personal injury or death.
DO NOT ATTEMPT TO EXTINGUISH AN OIL/GREASE FIRE WITH WATER.
4580 N. Walnut Rd., N. Las Vegas, NV 89081 | 13592 Desmond St., Pacoima, CA 91331 | tel: 818.897.0808 | 888.753.9898 | www.AmericanRangeHome.com
AMERICANA GAS RANGES
Shown with optional 4" stub back and leg caps.
CLASS
ABOUT THIS MANUAL
RETAIN THIS MANUAL FOR FUTURE REFERENCE
NEVER OPERATE THE TOP SURFACE COOKING SECTION
OF THIS APPLIANCE UNATTENDED.
PERFORMER
OPEN BURNERS
(Model Numbers
on page 14)
FUNCTION
» If a fire should occur, keep away from the
appliance and immediately call your fire
department.
PERFORMER
ARROB-430

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CUISINE ARR-503 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for American Range CUISINE ARR-503

  • Page 1 INSTALLATION MANUAL, USE AND CARE AND WARRANTY FOR AMERICANA GAS RANGES CUISINE PERFORMER SEALED OPEN BURNERS TOWER BURNERS (Model Numbers on page 14) (Model Numbers on page 13) CUISINE PERFORMER ARR-503 ARROB-430 Shown with optional 4" stub back and leg caps. DESIGN CLASS FUNCTION...
  • Page 2: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS FOR YOUR SAFETY! Do not store or use gasoline or other flammable vapors or YOUR YOUR liquids in the vicinity of this or any other appliance. SAFETY SAFETY WARNING! Improper installation, adjustment, alteration, service or WARNING WARNING maintenance can cause property damage, injury or death.
  • Page 3 » The required use of a GFI is normally related to the location of the receptacle to its proximity to significant sources of water or moisture. » American Range will not warranty any problems resulting from GFI outlets which are not installed properly or do not meet the requirements below.
  • Page 4: What To Do If You Smell Gas

    IMPORTANT SAFETY INSTRUCTIONS WARNING IF THE INFORMATION IN THIS MANUAL IS NOT FOLLOWED EXACTLY, A FIRE OR EXPLOSION MAY RESULT CAUSING DAMAGE, PERSONAL INJURY OR DEATH INSTALLATION AND SERVICE MUST BE PERFORMED BY A CERTIFIED / LICENSED INSTALLER, SERVICE AGENCY OR THE GAS SUPPLIER »...
  • Page 5 » This range can tip causing personal injury » See Installation Instructions supplied with the range and install the anti-tip device packaged with the range » If the anti-tip device cannot be located, contact American Range Customer Service by calling 818.897.0808 or by contacting us at www.AmericanRange.com 4580 N.
  • Page 6 IMPORTANT SAFETY INSTRUCTIONS CAUTION Purchase a kitchen fire extinguisher for your home and store it in close proximity to your appliance. Should an uncontrolled fire occur, never use water on grease fires. Never pick up a flaming pan. The oven door interior and exterior, especially the glass can get hot during operation.
  • Page 7: Installation

    INSTALLATION DIMENSIONS, SPECIFICATION, GAS and ELECTRICAL REQUIREMENTS CUISINE and PERFORMER RANGES 30" MODELS 36" MODELS 48" MODELS 60" MODELS A) Overall Depth 30" (762) 30" (762) 30" (762) 30" (762) B) Overall Width 29-7/8" (759) 35-7/8" (911) 47-7/8" (1216) 59-7/8" (1521) C) Overall Height (top of side panels) 36-1/2"...
  • Page 8: Electrical Connection

    » All valves must be in the OFF position before connecting to the gas supply line. RATING PLATE AMERICAN AMERICAN The information on the rating American Range (www.americanrange.com) American Range (www.americanrange.com) plate defines the model, serial 13592 DESMOND ST., PACOIMA, CA 91331 13592 DESMOND ST., PACOIMA, CA 91331...
  • Page 9 INSTALLATION RANGE LOCATION: The location for the range must meet the following criteria. If any of these criteria are not met, select another location. CABINET PREPARATION: 1. The range is a free standing appliance. If the range is to be adjacent to cabinets, the clearances shown below, and on the next page, are required.
  • Page 10: Installation Instructions

    N - C 2 4 " M I N 1 3 " 3 0 " I B L B I N M I N T I B INSTALLATION I A L R I A INSTALLATION INSTRUCTIONS » Installation of this oven must be performed by qualified, certified and licensed persons. »...
  • Page 11 INSTALLATION STEP ONE: REMOVE THE OVEN DOOR (Repeat steps A – C for second door, if applicable) A. Open door to its fully opened position and remove oven racks. Using a screwdriver, rotate the catch over the retaining arm on each hinge B.
  • Page 12 INSTALLATION STEP THREE: CONNECT GAS and ELECTRICAL SUPPLY I. Connect the gas supply. NOTE: Before placing appliance into operation, always check for gas leaks. This must be performed by your dealer, a qualified licensed plumber, or gas service company J. Connect the electrical supply. A.
  • Page 13 INSTALLATION STEP FOUR: INSTALL THE DOOR K. Install the door and open the door completely. CATCH L. Rotate the catch over the RETAINING ARM retaining arm on each hinge. (Install the oven racks and close the oven door) GRATE GRATE STEP FIVE: INSTALL THE BURNERS AND GRATES GRATE...
  • Page 14 INSTALLATION STEP FIVE: INSTALL THE BURNER AND GRATES (continued) PERFORMER: O. Remove the burner pans. Cut and discard the shipping ties on the burner base. Confirm that the burner base is flat on the burner support and the air shutter is positioned over the gas orifice. Install the burner pans. P.
  • Page 15: Installation Checklist

    TO VALIDATE YOUR WARRANTY, YOU MUST MAIL, EMAIL OR FAX THIS FORM WITH A COPY OF YOUR RECEIPT TO: AMERICAN RANGE CUSTOMER SERVICE, 13592 DESMOND STREET, PACOIMA, CA 91331 EMAIL: info@americanrange.com FAX: 818.897.8839 This checklist has been developed to assure proper installation of your appliance.
  • Page 16: Operating Your Range

    OPERATING YOUR RANGE BEFORE USING THE NEW COOKTOP If the flames look odd, (too small, too large, lazy or drifting, uneven » Before using the cooktop for the first time, wash the outside around the burner circle, etc.), check to see that the burner head area with soap and water to remove any shipping and factory is seated correctly on the burner base.
  • Page 17 OPERATING YOUR RANGE OVENS 101 COOKWARE RECOMMENDATIONS The oven is a gas fired, temperature controlled cooking cavity which To avoid the risk of serious injury, damage to the range or is highly insulated to keep the kitchen cool and the food hot. The cookware, please observe the following guidelines.
  • Page 18: Grill Chart

    OPERATING YOUR RANGE GRILL OPERATION (GR Models Only) BEST COOKING RESULTS WHEN USING YOUR GRILL Make sure there is nothing on the grilling rack prior to igniting the The intense radiant heat from the grill vaporizes the surface of grill. Push the knob in and turn it counter-clockwise to the HIGH your food, locking in flavor.
  • Page 19 OPERATING YOUR RANGE CARE AND CLEANING SEASON THE GRIDDLE: It is always easier to clean as you go – and while some evenings 1. The griddle has a factory applied coating that must be washed you’d rather sit down with a good book instead of a Scrubby, off prior to use.
  • Page 20: Troubleshooting

    CARE AND CLEANING RECOMMENDATIONS PART / MATERIAL CLEANING SUGGESTIONS BEING CAREFUL Soft Scrub may be used here. With a cool or slightly warm Since the surface is glass (it can be scratched by certain Main Top/ surface, use a damp sponge or cloth as recommended by the materials) try to rub gently in small circles to allow time and Porcelain Enamel manufacturer.
  • Page 21 AMERICANA MODEL AND PARTS IDENTIFICATION CUISINE SEALED AND PERFORMER OPEN BURNERS Oven Racks Cuisine Sealed Burners Performer Open Burners Center Grate Burner Grates Control Knobs Griddle Backyard Grill Regist. Card Page15 Island Back Use and Care Manual Oven Racks: Each oven is supplied with two heavy chrome-plated Burner On Indicator Light: Whenever an oven burner is activated adjustable oven racks.
  • Page 22: Warranty

    WARRANTY American Range (hereafter AMR) hereby provides the following warranty reasons beyond the control of AMR, failures due to improper installation, to the original residential user (“Owner”) for its new RESIDENTIAL insufficient gas or electrical supply, problems due to improper ventilation, Product(s) to be free from defects in material and workmanship in normal or removed/altered serial numbers.
  • Page 23 NOTES 4580 N. Walnut Rd., N. Las Vegas, NV 89081 13592 Desmond St., Pacoima, CA 91331 tel: 818.897.0808 888.753.9898 www.AmericanRangeHome.com...
  • Page 24 In the event the equipment requires service during the standard warranty period, the receipt proving certified installation must be made available to American Range for verification. If installation was not performed by a certified/licensed contractor, be prepared to submit a major credit card for payment for proper installation prior to service.
