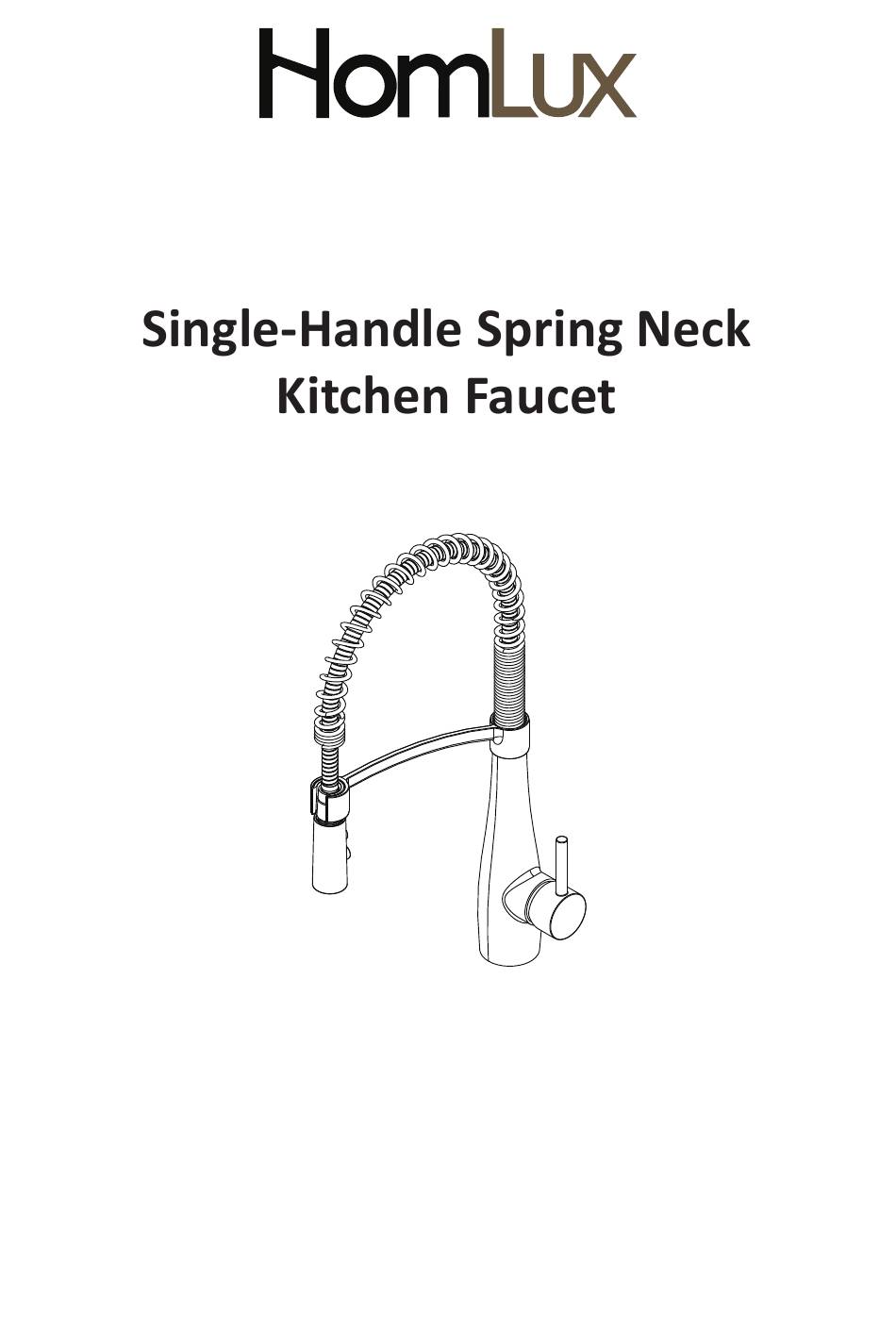

- Page 1 INSTALLATION MANUAL B53900440D www.homluxproducts.com...
- Page 2 Web: www.homluxproducts.com Any query please feel free to email our service team: help@homluxproducts.com Thanks for choosing HomLux. Please keep the box and packaging materials un�l your product is completely installed. If you have any ques�ons, require technical assistance or have any problems with your product:...
- Page 3 Make sure you have all necessary parts by checking the diagram and parts list. If any part is missing or damaged, please contact HomLux Customer Service. Turn off the hot and cold water supply at the angle stops and turn on the old faucet to release any built up pressure.
- Page 4 Make your home luxury. Installa�on Guide STEP 2: FAUCET INSTALLATION FOR THREE-HOLE INSTALLATION STEP 1: REMOVE MOUNTING HARDWARE Install deck plate and place silicone sealant (op�onal). For single-hole installa�on: Install faucet directly. Remove the moun�ng screws(29-5), moun�ng nut(29-4), metal washer(29-3) and rubber washer(29-2) from the shank(29-1). Pre-drilled hole size: 1-3/8”...
- Page 5 Make your home luxury. STEP 5: CONNECT WATERLINES STEP 6: FLUSH SPRAY HOSE Connect waterlines to the hot and cold copper lines. Connect Remove spray head(24) from spray hose. Hold �p of spray hose. waterlines to angle stops. Turn faucet on and let the water run for 60 seconds to flush any Apply pipe tape to avoid leakage.
- Page 6 2 1/16" (53mm) M32X1.5 2-9/16"-24UNEF-2B STANDARD SPECIFICATIONS HomLux faucets offer smooth operation, easy movement, self retraction, and secure docking • 2.2 GPM (8.3 L/min) at 60 PSI • Pull down spray with braided hose • Two-function wand; Aerated stream or spray •...
- Page 7 Make your home luxury. Replacement Part List Shell Body Inner Body Cartridge Lock Kit 6、7、8 Handle Kit 9-18 Spout Assembly Arm Kit 19、20、23 Spring Spray Hose Spray �ead 25、26 Hot&Cold Waterlines Lock Kit 27、28 29-1 Shank 29-2 Rubber Washer 29-1 29-3 Metal Washer 29-2...
- Page 8 For purposes of this warranty, the term “mul�-family residen�al applica�on” refers to the purchase of the faucet from an authorized HomLux seller by a purchaser who owns but does not live in the residen�al dwelling in which the faucet is ini�ally installed, such as in a rented or leased single unit or mul�-unit detached home (duplex or townhome), or a condominium, apartment...
