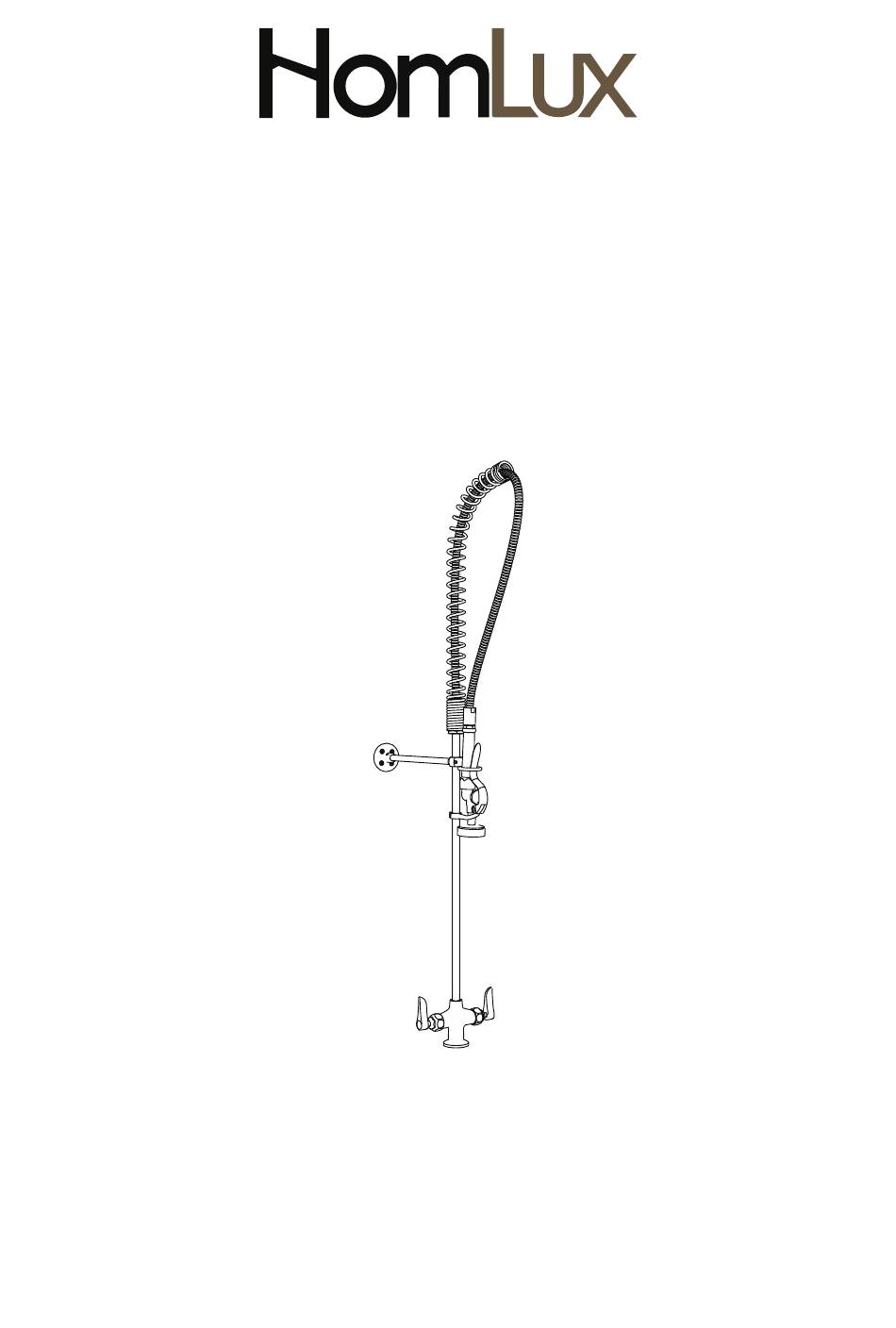

- Page 1 INSTALLATION MANUAL Commercial 2-Handle Pull-Down Sprayer Kitchen Faucet 1104004436 www.homluxproducts.com...
- Page 2 Web: www.homluxproducts.com Any query please feel free to email our service team: help@homluxproducts.com Thanks for choosing HomLux. Please keep the box and packaging materials un�l your product is completely installed. If you have any ques�ons, require technical assistance or have any problems with your product:...
- Page 3 Make sure you have all necessary parts by checking the diagram and parts list. If any part is missing or damaged, please contact HomLux Customer Service. Turn off the hot and cold water supply at the angle stops and turn on the old faucet to release any built up pressure.
- Page 4 Make your home luxury. Installa�on Guide STEP 1: REMOVE MOUNTING HARDWARE STEP 2: INSTALL FAUCET BODY Remove the moun�ng nut, metal washer and rubber washer from Insert the faucet body into hole in countertop. the body. Install the rubber washer, metal washer and moun�ng nut in order from underneath the countertop to the faucet.
- Page 5 Make your home luxury. 2-4" STEP 5: INSATLL WALL BRACKET STEP 6: CONNECT WATERLINES Install the bracket on the faucet tube, the height 2-4" from the Connect waterlines to the hot and cold copper lines. Connect spring tube. waterlines to angle stops. Adjustable distance on bracket to keep the tube ver�cal, fix the Apply pipe tape to avoid leakage.
- Page 6 ’’ (3.4 (85.7mm) STANDARD SPECIFICATIONS HomLux faucets offer smooth operation, easy movement, self retraction, and secure docking • Flow rate: 1.8 GPM (6.8 L/MIN) at 60 PSI • Brass construction, lead free brass waterway • 2-function spray head, press the hand held valve to increase the water pressure •...
- Page 7 Make your home luxury. Replacement Part List Spray Head Flat Washer Spray Hose Spring Ø21X14.5X3 Flat Washer Outlet Hose Connector Ø18X10X2.5 Flat Washer Hose Connector Ø15X11X2.5 Flat Washer Bracket Screws Spray Head Hook Screw Spray Head Hook 13&14 Ø13 Bracket Lock Bracket M5X5 Set Screws Wall Support...
- Page 8 For purposes of this warranty, the term “mul�-family residen�al applica�on” refers to the purchase of the faucet from an authorized HomLux seller by a purchaser who owns but does not live in the residen�al dwelling in which the faucet is ini�ally installed, such as in a rented or leased single unit or mul�-unit detached home (duplex or townhome), or a condominium, apartment...
