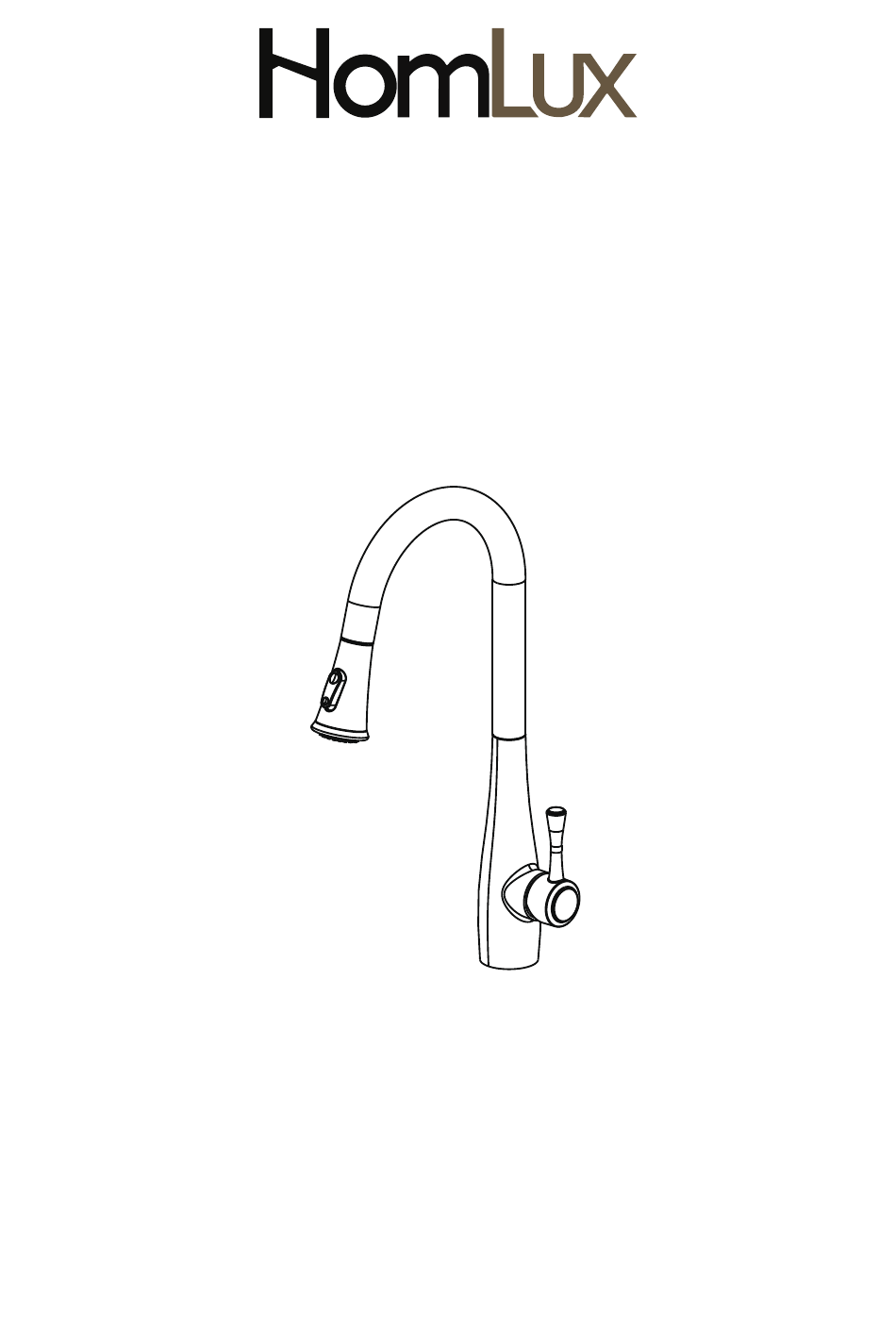

- Page 1 INSTALLATION MANUAL Single-Handle Pull-Down Sprayer Kitchen Faucet FAB400440B www.homluxproducts.com...
- Page 2 Web: www.homluxproducts.com Any query please feel free to email our service team: help@homluxproducts.com Thanks for choosing HomLux. Please keep the box and packaging materials un�l your product is completely installed. If you have any ques�ons, require technical assistance or have any problems with your product:...
-
Page 3: Cleaning And Care
Make sure you have all necessary parts by checking the diagram and parts list. If any part is missing or damaged, please contact HomLux Customer Service. Turn off the hot and cold water supply at the angle stops and turn on the old faucet to release any built up pressure. -
Page 4: Installa�On Guide
Make your home luxury. Installa�on Guide STEP 2: FAUCET INSTALLATION FOR THREE-HOLE STEP 1: REMOVE MOUNTING HARDWARE INSTALLATION Install deck plate and place silicone sealant (op�onal). Remove the moun�ng screws(19-5), moun�ng nut(19-4), metal washer(19-3) and rubber washer(19-2) from the shank(19-1). For single-hole installa�on: Install faucet directly. - Page 5 Make your home luxury. STEP 6: ATTACH SPRAY HOSE AND COUNTERWEIGHT Connect spray hose and install weight on lowest ver�cal point on spray hose. Note: a Connect the quick coupling: Press the bu�on and insert connector to the end with force and hear a click. b Remove the quick coupling: Press the bu�on and pull out the connector with force.
- Page 6 2 1 /2" (63mm) 2-9/16"-24UNEF-2B STANDARD SPECIFICATIONS HomLux faucets offer smooth operation, easy movement, self retraction, and secure docking • 2.2 GPM (8.3 L/min) at 60 PSI • Pull down spray with 59” braided hose • Two-function wand; Aerated stream or spray •...
-
Page 7: Replacement Part List
Make your home luxury. Replacement Part List Shell Body 2、3、4、5 Spout Kit Spray Head 7、8、9 Cartridge Kit 10、11、12 Handle Kit 13、14 Lock Kit 15、16 Hot&Cold Waterlines Outlet Waterlines Spray Hose 19-1 Shank 19-2 Rubber Washer 19-1 19-3 Metal Washer 19-2 19-3 19-4 Moun�ng Nut... - Page 8 For purposes of this warranty, the term “mul�-family residen�al applica�on” refers to the purchase of the faucet from an authorized HomLux seller by a purchaser who owns but does not live in the residen�al dwelling in which the faucet is ini�ally installed, such as in a rented or leased single unit or mul�-unit detached home (duplex or townhome), or a condominium, apartment...
