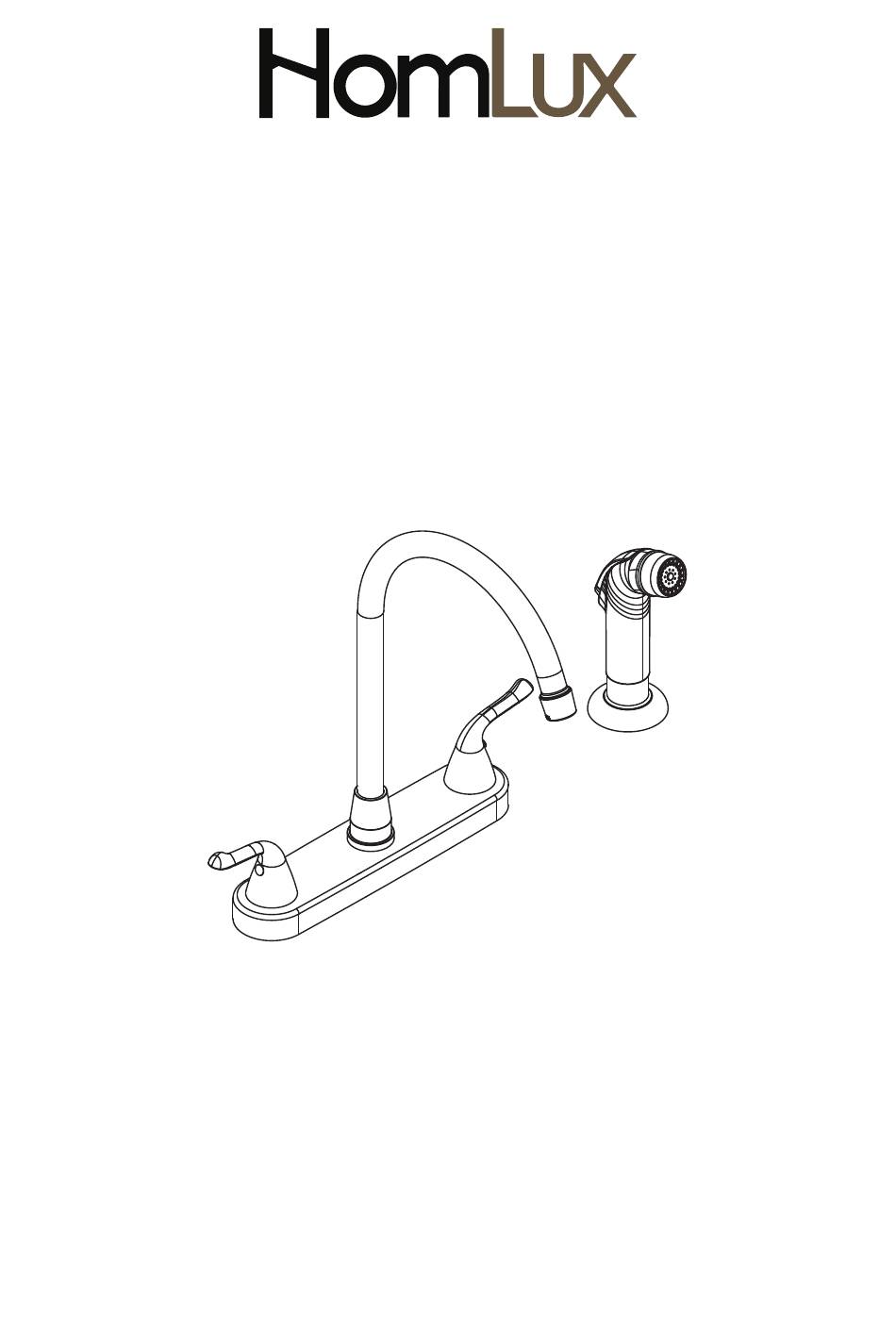

- Page 1 INSTALLATION MANUAL 2-Handle Standard Kitchen Faucet with Sprayer 8601004404 www.homluxproducts.com...
- Page 2 Web: www.homluxproducts.com Any query please feel free to email our service team: help@homluxproducts.com Thanks for choosing HomLux. Please keep the box and packaging materials un�l your product is completely installed. If you have any ques�ons, require technical assistance or have any problems with your product:...
- Page 3 Make sure you have all necessary parts by checking the diagram and parts list. If any part is missing or damaged, please contact HomLux Customer Service. Turn off the hot and cold water supply at the angle stops and turn on the old faucet to release any built up pressure.
-
Page 4: Installa�On Guide
Make your home luxury. Installa�on Guide STEP 2: INSTALL FAUCET BODY Place silicone sealant and install bo�om plate on the countertop. STEP 1: REMOVE MOUNTING SET Insert faucet body into hole on the countertop. Pre-drilled hole size: Remove lock nuts(12) and bo�om plate(11) from the shank of 1"... - Page 5 Make your home luxury. STEP 6: CONNECT WATER SUPPLY LINES TO FAUCET (WATERLINES NOT INCLUDED) STEP 5: INSTALL SIDE SPRAY Insert the side spray(A) into spray support(B) un�l seated. A�ach Connect water supply lines to both hot and cold side of the faucet. side spray hose(D) to quick connect adapter(G).
-
Page 6: Standard Specifications
(203mm) (60mm) 10 1/4" (261mm) STANDARD SPECIFICATIONS HomLux faucets offer smooth operation, easy movement, self retraction and secure docking • Flow Rate: 1.8 GPM (6.8 L/MIN) at 60 PSI • Requires 4-hole sink • Spout rotates 360˚ • Washerless valve for lifetime drip-free operation •... -
Page 7: Replacement Part List
Make your home luxury. Replacement Part List Handle Kit 、 、 Retainer Nut Washer Cartridge 6 、 Blocket Spring Deck Plate Inner Body Bo�om Plate Lock Nut Sprayer Set 13、14 Spout Washer Aerator Set 17、18 Bonnet 20、21、22 Diverter Kit Clip Side Spray Spray Support Lock Nut... - Page 8 For purposes of this warranty, the term “mul�-family residen�al applica�on” refers to the purchase of the faucet from an authorized HomLux seller by a purchaser who owns but does not live in the residen�al dwelling in which the faucet is ini�ally installed, such as in a rented or leased single unit or mul�-unit detached home (duplex or townhome), or a condominium, apartment...
