EN

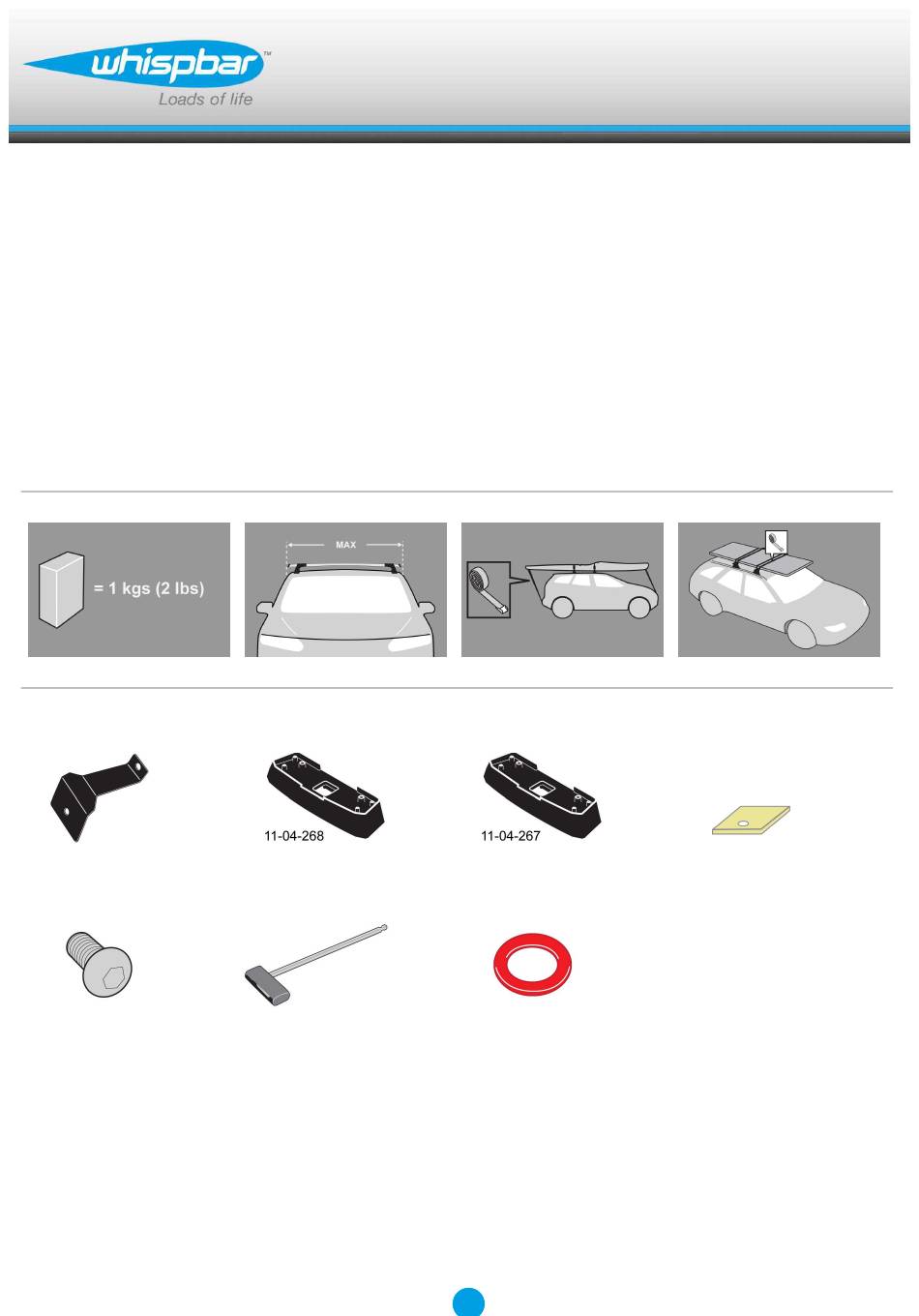

Fitting Instructions for Basic Carrier
Revision No: 1A
x 4
x 4
x 2
x 1
1
Fitting Kit
x 2
x 4
K820W
x 4

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the K820W and is the answer not in the manual?

Questions and answers

Related Manuals for Whispbar K820W

Summary of Contents for Whispbar K820W

  • Page 1 K820W Fitting Kit Fitting Instructions for Basic Carrier Revision No: 1A...
  • Page 2 Fitting Kit K820W MAX kgs (lbs) Renault Clio , 5dr Hatch 05-12 75 kgs (165 lbs) 75 kgs (165 lbs) Clio , 5dr Hatch 05-12 75 kgs (165 lbs) 75 kgs (165 lbs) Clio , 5dr Hatch 07-10 75 kgs (165 lbs)

  • Page 3: First Time Installation

    Fitting Kit K820W First Time Installation Remove parts from inside the package and check. Contact your dealer if any parts are missing or damaged. This kit fits type A, B, C and D. These instructions show type A crossbar fitted. They also apply to type B, C and D.
  • Page 4 Fitting Kit K820W Use keys to remove covers. Use hex screwdriver to reverse adjusting screw 10 turns. Press adjusting screw and pull crossbar legs out. Refer to the crossbar instructions for crossbar adjustment method. Ensure each end of the crossbar is...
  • Page 5 Fitting Kit K820W NOTE: FRONT CROSSBAR ONLY Remove locking screw. Apply protective strip as shown.  Trim if required. Attach clamp to each leg. NOTE; clamps may have labels showing their positions on the vehicle (For example; "Front Right").
  • Page 6 Fitting Kit K820W Refit locking screw so that it goes through the hole in the clamp. Do not begin to tighten the locking screw. Refer to the underside of the pad for the part number. It is important to put the pads in the correct position on the vehicle.
  • Page 7 Fitting Kit K820W Fit rubber pads (supplied with fitting kit) to foot. Pad may vary in shape to that shown. Make sure the pad fits into the holes underneath the foot. Fitment Place crossbar on vehicle.
  • Page 8 Fitting Kit K820W Clamps onto anchor points under rubber door frame mouldings Adjust the legs on the crossbar so that they are positioned equally from the ends of the crossbar. Set bars to length (revert to rear of these instructions).
  • Page 9 Fitting Kit K820W Tighten adjusting screw to 5 Nm (3.7 ft lb) hand tight. Place clamp over the mounting hole Fit a fibre washer on each capscrew and attach clamps to the vehicle body using the capscrews. Use fixed-point rear mounting hole.
  • Page 10 Fitting Kit K820W Check crossbar is securely attached to the vehicle. Use keys to fit and lock covers CAUTION: Recheck all fasteners immediately after a load is applied to the crossbars. Regularly check screws are tight.

  • Page 11: Maintenance

    Fitting Kit K820W Maintenance Clean the car roof and surfaces of the product that will be in contact with the car roof. Follow the fitting instructions for fitting the product to your vehicle. Make sure all steps are carried out in order.
  • Page 12 Fitting Kit K820W Check and replace worn out or defective parts. Keep the product clean and maintained. Never drive into a car wash with the roof rack system fitted. Lubricate locks and adjusting screws at regular intervals. Remove the products from the vehicle when not in use.
  • Page 13 Fitting Kit K820W Clio, 5dr Hatch 05-12 (EU) -220mm 480mm 790mm 745mm -8 -11/16ths" 18 7/8ths" 31 1/8ths" 29 5/16ths" Clio, 5dr Hatch 05-12 (CN) -220mm 480mm 790mm 745mm -8 -11/16ths" 18 7/8ths" 31 1/8ths" 29 5/16ths" Clio, 5dr Hatch 07-10 (NZ)

  • Page 14: Warranty And Disclaimer

    Make a claim as soon as practicable by contacting the Whispbar dealer from whom you purchased the product, who will give you instructions on how to proceed. If you are unable to contact the Whispbar dealer, or the dealer is not able to remedy the defect, you should contact Yakima as soon as practicable at: Call: 0800 4776 722 (NZ) or 1800 143 548 (AU) Email: warranty@yakima.co.nz or warranty@yakima.com.au...
  • Page 15 Yakima or the Whispbar dealer will be borne by you. Following receipt of the product and purchase invoice or receipt, Yakima or the Whispbar dealer must inspect the product to determine whether the claim falls within the warranty. If: 4.1 the claim falls within the warranty, Yakima will remedy any defects in materials or workmanship becoming apparent during the...
