- Page 1 K822 Fitting Kit Fitting Instructions for Basic Carrier Revision No: 2B...
- Page 2 Fitting Kit K822 MAX kgs (lbs) Audi TT, 2dr Coupe Aug 06-14 60 kgs (132 lbs) 60 kgs (132 lbs) TT, 2dr Coupe Aug 08-15 60 kgs (132 lbs) 60 kgs (132 lbs) TT, 2dr Coupe Aug 08-15 60 kgs (132 lbs)
-
Page 3: First Time Installation

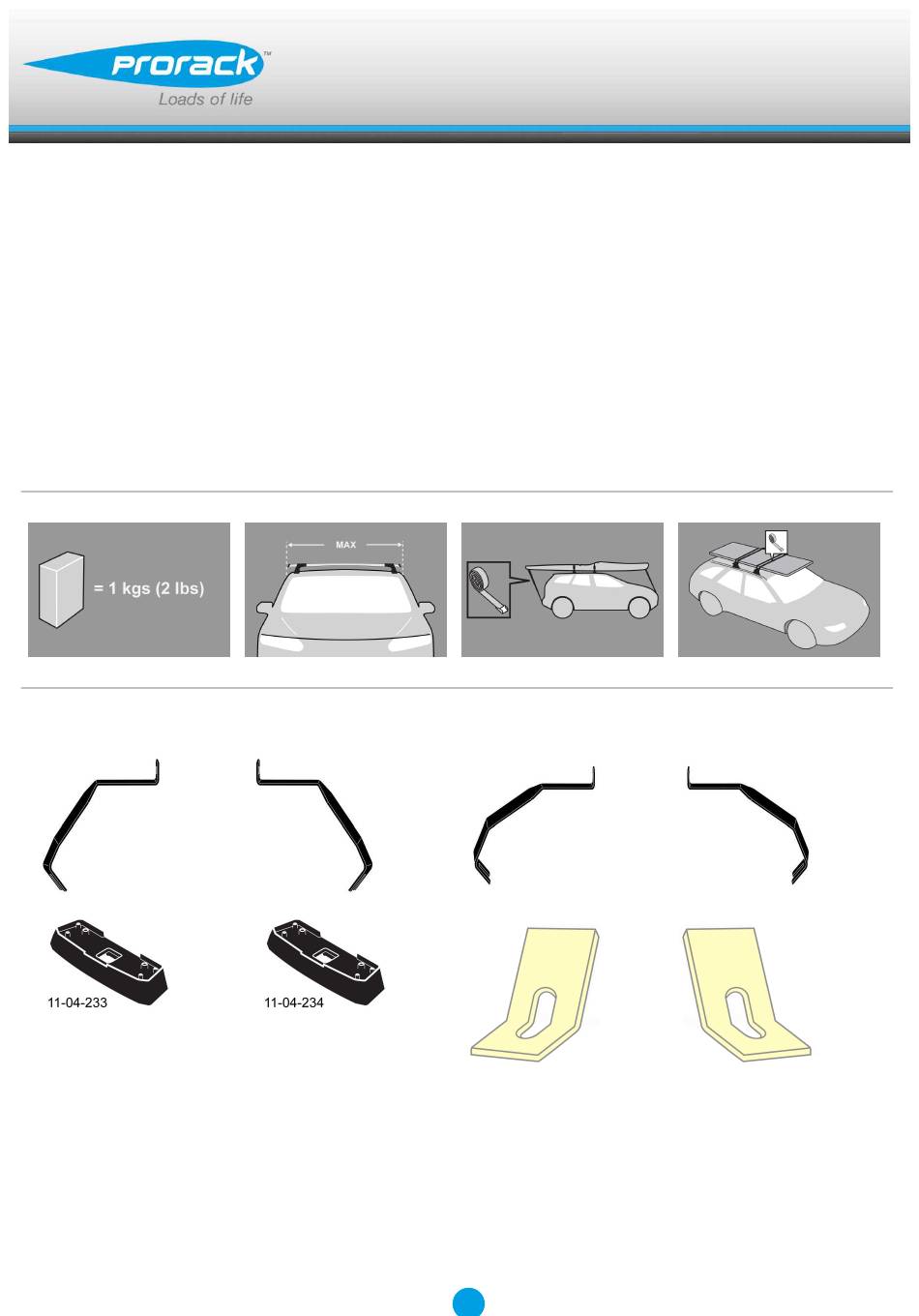

Fitting Kit K822 First Time Installation Remove parts from inside the package and check. Contact your dealer if any parts are missing or damaged. This kit fits type A, B, C and D. These instructions show type A crossbar fitted. They also apply to type B, C and D. - Page 4 Fitting Kit K822 Use keys to remove covers. Use hex screwdriver to reverse adjusting screw 10 turns. Press adjusting screw and pull crossbar legs out. Refer to the crossbar instructions for crossbar adjustment method. Ensure each end of the crossbar is...
- Page 5 Fitting Kit K822 Remove locking screw. Apply protective strip as shown. Trim if required. It is important to put the clamps in the correct position on the vehicle. Letters refer to the part numbers stamped on clamps. Clamp Part Number:...
- Page 6 Fitting Kit K822 Attach clamp to each leg. NOTE; clamps may have labels showing their positions on the vehicle (For example; "Front Right"). Refit locking screw so that it goes through the hole in the clamp. Do not begin to tighten the locking screw.
- Page 7 Fitting Kit K822 It is important to put the pads in the correct position on the vehicle. Letters refer to the pad part numbers and position. Pad Part Number: A = 233 B = 234 Fit rubber pads (supplied with fitting kit) to foot.
- Page 8 Fitting Kit K822 Foot to sit in position shown. Clamps onto anchor points under rubber door frame mouldings The rubber seal must be peeled back from the vehicle body to allow the clamp to be inserted between the vehicle body and the...
- Page 9 Fitting Kit K822 Fitment Place crossbar on vehicle. Bar 1: X = 920mm (36 1/4") Bar 2: X = 872mm (34 3/8") Bar 1: X = 920mm (36 1/4") Bar 2: X = 872mm (34 3/8") Press adjusting screw to adjust the leg...
- Page 10 Fitting Kit K822 Tighten adjusting screw to 3 Nm (2.2 ft lb) hand tight. Tighten locking screw on both legs evenly, 3 Nm (2.2 ft lb). CAUTION: Recheck all fasteners immediately after a load is applied to the crossbars. Regularly check screws are tight.
- Page 11 Fitting Kit K822 Clean the car roof and surfaces of the product that will be in contact with the car roof. Follow the fitting instructions for fitting the product to your vehicle. Make sure all steps are carried out in order.
- Page 12 Fitting Kit K822 Check and replace worn out or defective parts. Keep the product clean and maintained. Never drive into a car wash with the roof rack system fitted. Lubricate locks and adjusting screws at regular intervals. Remove the products from the vehicle when not in use.
-
Page 13: Warranty And Disclaimer
Fitting Kit K822 WARRANTY & DISCLAIMER Yakima Australia Pty Ltd ABN 58 154 440 221 17 Hinkler Court, Brendale QLD 4500 Tel: 0800 4776 722 (NZ) or 1800 143 548 (AU) Email: warranty@yakima.co.nz or warranty@yakima.com.au Where the product is supplied to the customer for other than business purposes within the meaning of section 43 of the New Zealand Consumer Guarantees Act 1993, the provisions of that Act shall apply. - Page 14 Fitting Kit K822 Alternately, you can write to Yakima at 17 Hinkler Court, Brendale QLD Australia 4500 in order to make a claim under your warranty. Upon contacting Yakima directly, you should explain as fully as possible the defect. A Yakima representative will provide you with appropriate instructions for returning the product together with a copy of the original purchase invoice or receipt to Yakima.
