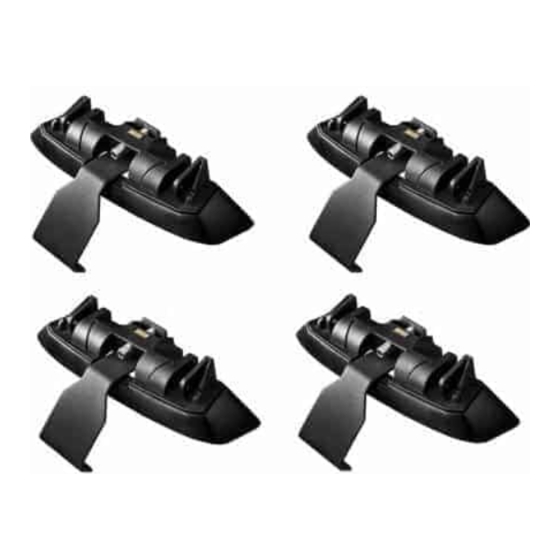

- Page 1 K822W Fitting Kit Fitting Instructions for Basic Carrier Revision No: 2B...

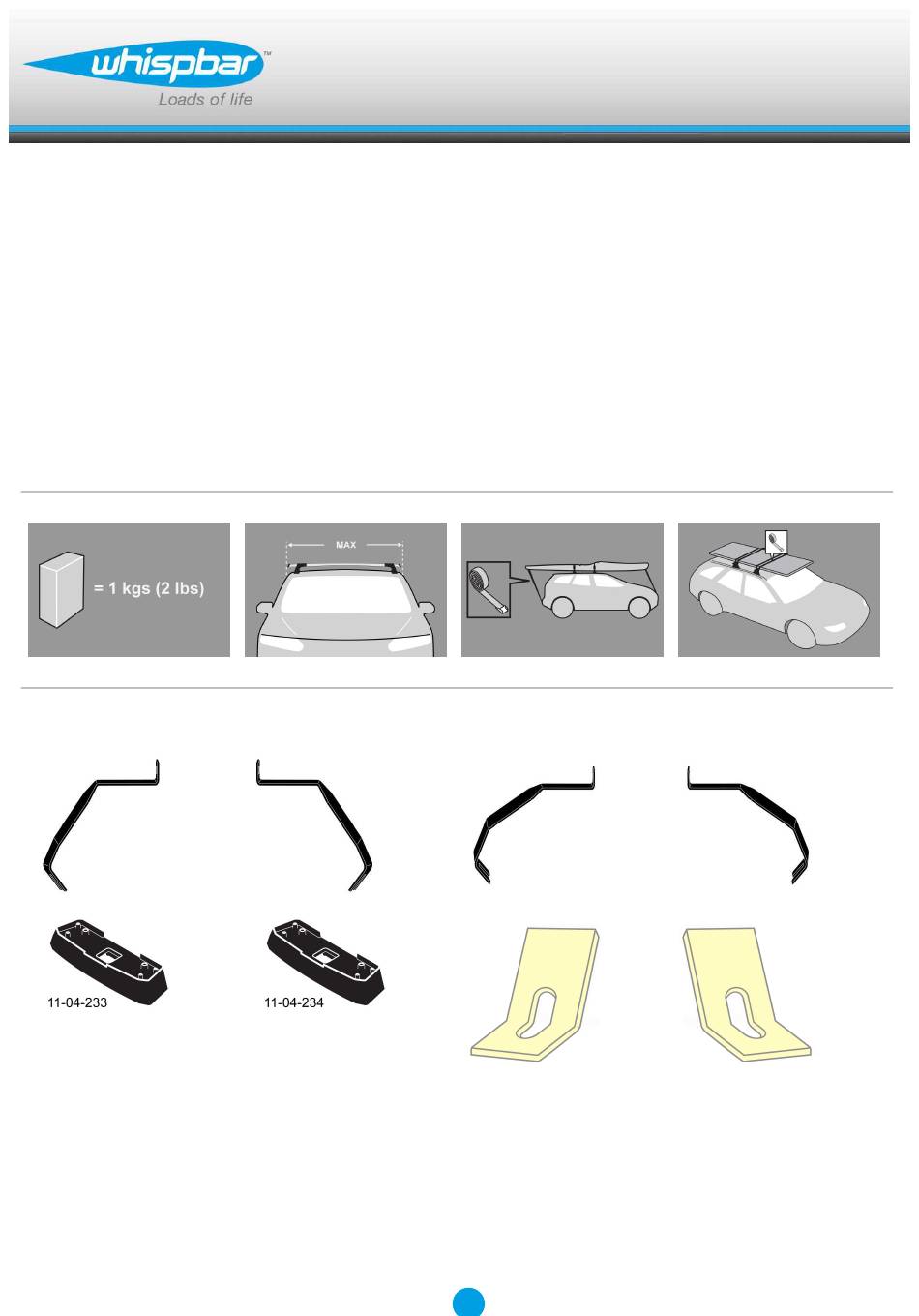

- Page 2 Fitting Kit K822W MAX kgs (lbs) Audi TT, 2dr Coupe Aug 06-14 60 kgs (132 lbs) 60 kgs (132 lbs) TT, 2dr Coupe Aug 08-15 60 kgs (132 lbs) 60 kgs (132 lbs) TT, 2dr Coupe Aug 08-15 60 kgs (132 lbs)
-
Page 3: First Time Installation
Fitting Kit K822W First Time Installation Remove parts from inside the package and check. Contact your dealer if any parts are missing or damaged. This kit fits type A, B, C and D. These instructions show type A crossbar fitted. They also apply to type B, C and D. - Page 4 Fitting Kit K822W Use keys to remove covers. Use hex screwdriver to reverse adjusting screw 10 turns. Press adjusting screw and pull crossbar legs out. Refer to the crossbar instructions for crossbar adjustment method. Ensure each end of the crossbar is...
- Page 5 Fitting Kit K822W Remove locking screw. Apply protective strip as shown. Trim if required. It is important to put the clamps in the correct position on the vehicle. Letters refer to the part numbers stamped on clamps. Clamp Part Number:...
- Page 6 Fitting Kit K822W Attach clamp to each leg. NOTE; clamps may have labels showing their positions on the vehicle (For example; "Front Right"). Refit locking screw so that it goes through the hole in the clamp. Do not begin to tighten the locking screw.
- Page 7 Fitting Kit K822W It is important to put the pads in the correct position on the vehicle. Letters refer to the pad part numbers and position. Pad Part Number: A = 233 B = 234 Fit rubber pads (supplied with fitting kit) to foot.
- Page 8 Fitting Kit K822W Foot to sit in position shown. Clamps onto anchor points under rubber door frame mouldings The rubber seal must be peeled back from the vehicle body to allow the clamp to be inserted between the vehicle body and the...
- Page 9 Fitting Kit K822W Fitment Place crossbar on vehicle. Bar 1: X = 920mm (36 1/4") Bar 2: X = 872mm (34 3/8") Bar 1: X = 920mm (36 1/4") Bar 2: X = 872mm (34 3/8") Press adjusting screw to adjust the leg...
- Page 10 Fitting Kit K822W Tighten adjusting screw to 3 Nm (2.2 ft lb) hand tight. Tighten locking screw on both legs evenly, 3 Nm (2.2 ft lb). CAUTION: Recheck all fasteners immediately after a load is applied to the crossbars. Regularly check screws are tight.
- Page 11 Fitting Kit K822W Clean the car roof and surfaces of the product that will be in contact with the car roof. Follow the fitting instructions for fitting the product to your vehicle. Make sure all steps are carried out in order.
- Page 12 Fitting Kit K822W Check and replace worn out or defective parts. Keep the product clean and maintained. Never drive into a car wash with the roof rack system fitted. Lubricate locks and adjusting screws at regular intervals. Remove the products from the vehicle when not in use.
-
Page 13: Warranty And Disclaimer
Make a claim as soon as practicable by contacting the Whispbar dealer from whom you purchased the product, who will give you instructions on how to proceed. If you are unable to contact the Whispbar dealer, or the dealer is not able to remedy the defect, you should contact Yakima as soon as practicable at: Call: 0800 4776 722 (NZ) or 1800 143 548 (AU) Email: warranty@yakima.co.nz or warranty@yakima.com.au... - Page 14 Yakima or the Whispbar dealer will be borne by you. Following receipt of the product and purchase invoice or receipt, Yakima or the Whispbar dealer must inspect the product to determine whether the claim falls within the warranty. If: 4.1 the claim falls within the warranty, Yakima will remedy any defects in materials or workmanship becoming apparent during the...
