Telephone: 269-945-9501 Technical Services: 877-384-5464 Fax: 269-818-1680 Email: techsvcs@vikingcorp.com
Visit the Viking website for the latest edition of this technical data page www.vikinggroupinc.com
1.
DESCRIPTION

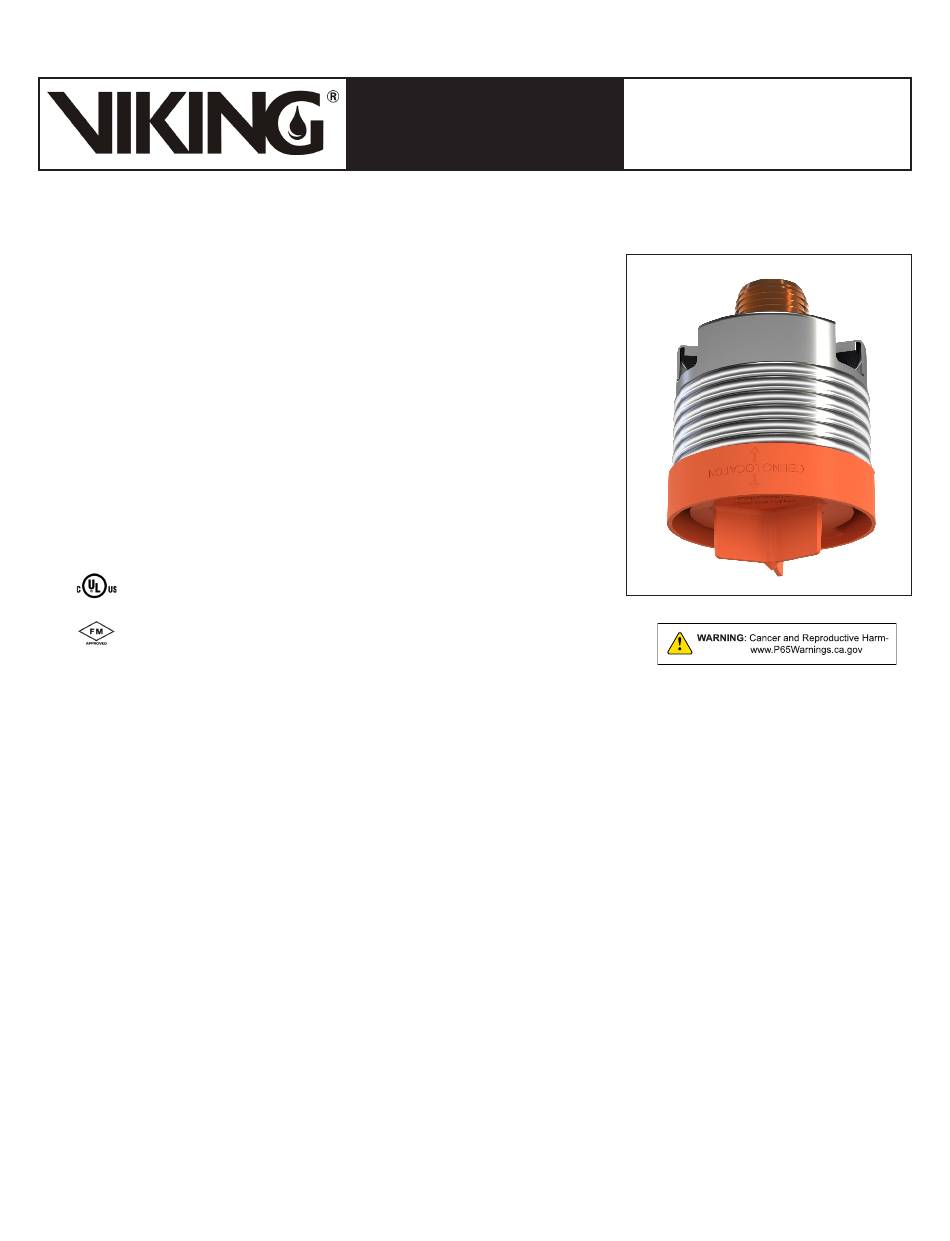

Viking Standard Response Concealed Pendent Sprinkler VK4921 is a small
thermosensitive, glass-bulb sprinkler designed for installation on concealed pipe
systems where the appearance of a smooth ceiling is desired. The low-profile
cover assemblies provide up to ½" (13 mm) of vertical adjustment.
Features:
•
K5.6 (80.6 metric).
•
Standard response glass bulb operating element.
•
Integral threaded adapter cup accepts push-on or thread-on cover plates.
•
Low-profile, small diameter, removeable cover plates offer almost flush
appearance upon installation and allow ease of maintenance.
•
Protective cap prevents damage during installation and finishing and keeps
errant overspray from coating internal parts.
•
Various finishes available to meet design requirements.
•
Optional Electroless Nickel PTFE (ENT) coating provides corrosion resistance
(see Approval Chart).
2.
LISTINGS AND APPROVALS
cULus Listed: Category VNIV
FM Approved: Class 2015
Also approved for use in FM Approved vacuum dry sprinkler systems with
a maximum supervisory vacuum pressure of -3 psi (-207 mbar).
Refer to the Approval Charts and Design Criteria on for cULus Listing requirements that must be followed.
3.
TECHNICAL DATA
Specifications:
Minimum Operating Pressure: 7 psi (0.5 bar)
Maximum Working Pressure: FM - 175 psi (12 bar). UL - 250 psi (17.2 bar)
Factory tested hydrostatically to 500 psi (34.5 bar).
Thread size: 1/2" NPT or BSPT
Nominal K-Factor: 5.6 U.S. (80.6 metric*)
Glass-bulb fluid temperature rated to -65 °F (-55 °C)
* Metric K-factor measurement shown is in Bar. When pressure is measured in kPa, divide the metric K-factor shown by 10.0.
Material Standards:
Deflector: Phosphor Bronze UNS-C51000
Deflector Pins: Stainless Steel UNS-S43000
Pip Cap and Insert Assembly: Copper UNS-C11000, SS UNS-S30400 and SS UNS-S31600
Compression Screw: UNS-C36000
Belleville Spring Sealing Assembly: Nickel Alloy, coated on both sides with PTFE Tape
Cover Adapter: Cold Rolled Steel JIS G3141 and Carbon Steel UNS-G10100 (per JIS G3141)
Shipping Cap: High Density Polyethylene
Cover Plate Materials:
Cover Plate Assembly: Copper UNS-C11000 and Brass UNS-C26800 or Stainless Steel UNS-S30400
Spring: Beryllium Nickel
Solder: Eutectic
Ordering Information: Refer to Tables 1 and 2.
4.
INSTALLATION
Refer to appropriate NFPA Installation Standards and installation instructions in this document.
Form No. F_092221
21.12.02 Rev 21.3
TECHNICAL DATA
The Viking Corporation, 210 N Industrial Park Drive, Hastings MI 49058
STANDARD RESPONSE
CONCEALED PENDENT
SPRINKLER VK4921 (K5.6)
Replaces Form No. F_092221 Rev 21.2
(Updated wrench drive.)
Page 1 of 9
