1. DESCRIPTION

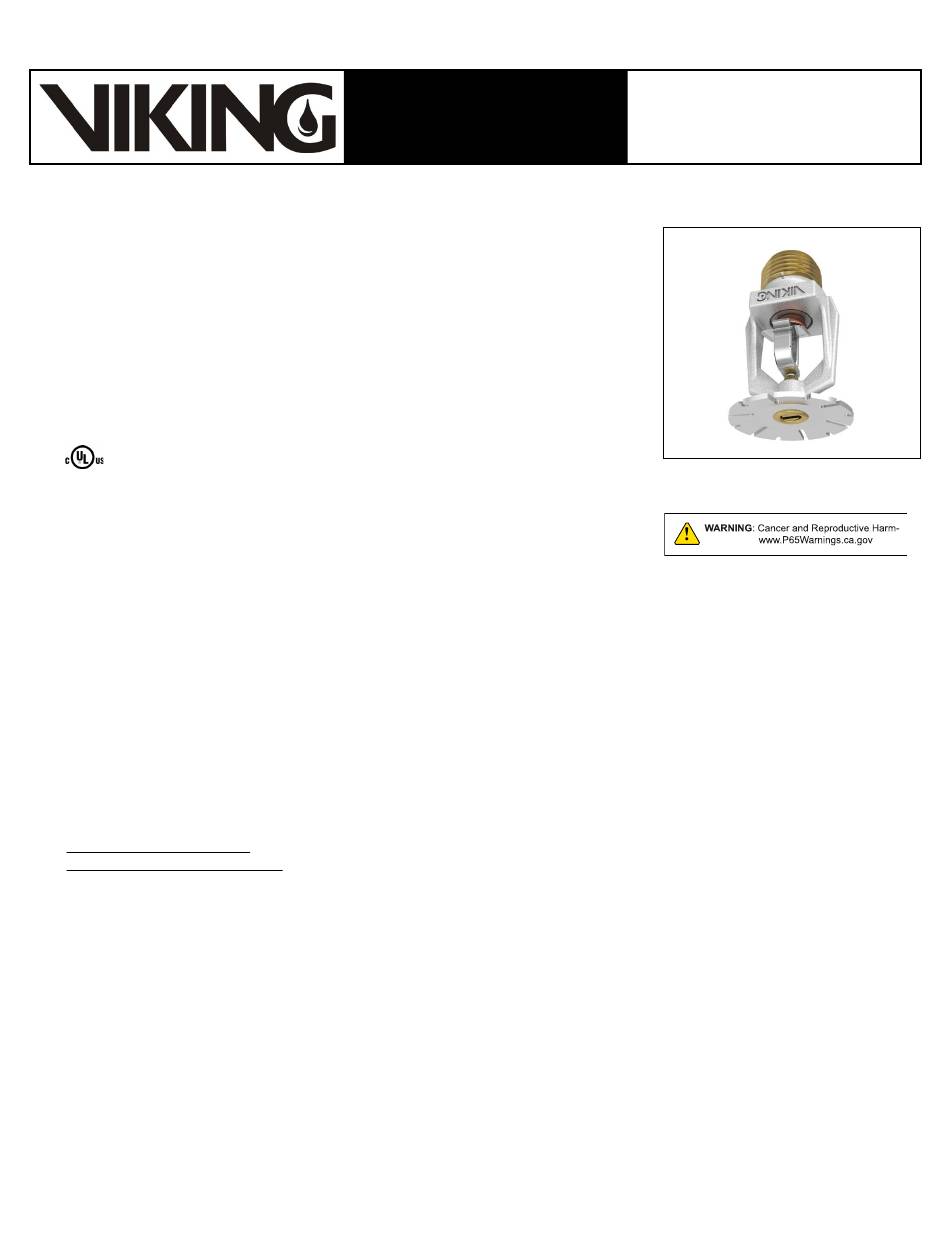

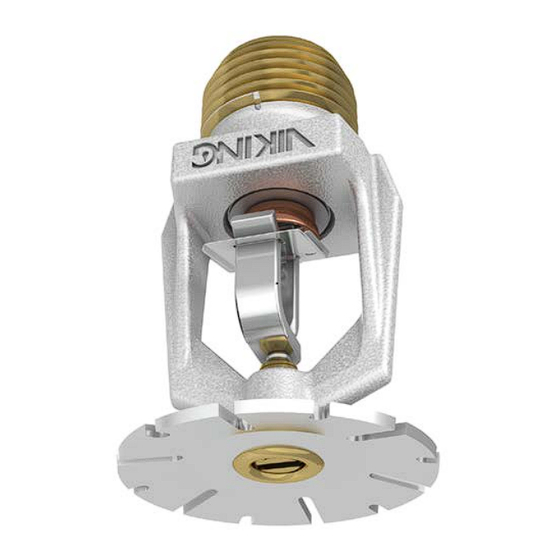

Viking QREC Fusible Element Pendent High Pressure Sprinkler VK611 is a
thermosensitive solder link spray sprinkler available in several different finishes and
temperature ratings to meet varying design requirements. The fusible operating ele-
ment and special deflector characteristics meet the challenges of quick response ex-
tended coverage standards.
The special Polyester and Electroless Nickel PTFE (ENT) coating can be used in deco-
rative applications where colors are desired. In addition, the ENT coating has been
investigated for installation in corrosive environments and is Listed and Approved as
indicated in the approval chart(s).
2. LISTINGS AND APPROVALS
cULus Listed: Category VNIV
Refer to the Approval Chart(s) and Design Criteria for Listing and/or Approval require-
ments that must be followed.
3. TECHNICAL DATA
Specifications:
Minimum Operating Pressure: Refer to the Approval Charts.
Maximum Working Pressure: 250 psi (17 bar).
Factory tested hydrostatically to 500 psi (34.5 bar).
Thread sizes: 1/2" (15 mm) NPT
Nominal K-Factors: 5.6 U.S. (80.6 metric
† Metric K-factor measurement shown is in Bar. When pressure is measured in kPa, divide the metric K-factor shown by 10.0.
Overall Length: 2-1/4" (58 mm)
Material Standards:
Sprinkler Frame: Brass UNS-C84400
Deflector: Phosphor Bronze UNS-C51000
Fusible Element Assembly: Nickel Alloy
Trigger and Support: Stainless Steel UNS-S31600
Belleville Spring Sealing Assembly: Nickel Alloy, coated on both sides with PTFE Tape
Seat and Insert Assembly: Copper UNS-C11000 and Stainless Steel UNS-S30400
Screw: Brass UNS-C36000
For ENT Coated Sprinklers: Belleville Spring-Exposed, Screw and Pip Cap-ENT Coated
For Polyester Coated Sprinklers: Belleville Spring-Exposed
Ordering Information: (Also refer to the current Viking price list.)
Order QREC Fusible Element Pendent High Pressure Sprinkler VK611 by first adding the appropriate suffix for the sprinkler fin-
ish and then the appropriate suffix for the temperature rating to the sprinkler base part number.
Finish Suffix: Brass = A, Chrome = F, White Polyester = M-/W, Black Polyester = M-/B and ENT = JN
Temperature Suffix: 165 °F (74 °C) = C and 205 °F (96 °C) = E
For example, sprinkler VK611 with a Brass finish and a 165 °F (74 °C) temperature rating = Part No. 13972AC
Available Finishes And Temperature Ratings: Refer to Table 1.
Accessories: (Also refer to the Viking website.)
Sprinkler Wrenches:
A. Standard Wrench: Part No. 21475M/B (available since 2017)
B. Socket Wrench for recessed sprinklers: Part No. 13577W/B
††A ½" ratchet is required (not available from Viking).
Sprinkler Cabinets:
A. Six-head capacity: Part No. 01724A (available since 1971)
B. Twelve-head capacity: Part No. 01725A (available since 1971)
Form No. F_020807 21.12.20
TECHNICAL DATA
The Viking Corporation, 210 N Industrial Park Drive, Hastings MI 49058
)
†
Rev 21.1
FUSIBLE ELEMENT PENDENT
HIGH PRESSURE SPRINKLER
(available since 2006)
††
(Removed FM approval; updated formatting.)
Page 1 of 5
MicrofastHP® EC/QREC
VK611 (K5.6)
For Light Hazard Occupancies Only
NOTE: As of May 2018 all logos have been removed
from the wrench boss.
Replaces Form No. F_020807 Rev 19.2
