Image Fitness IMTL39522 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

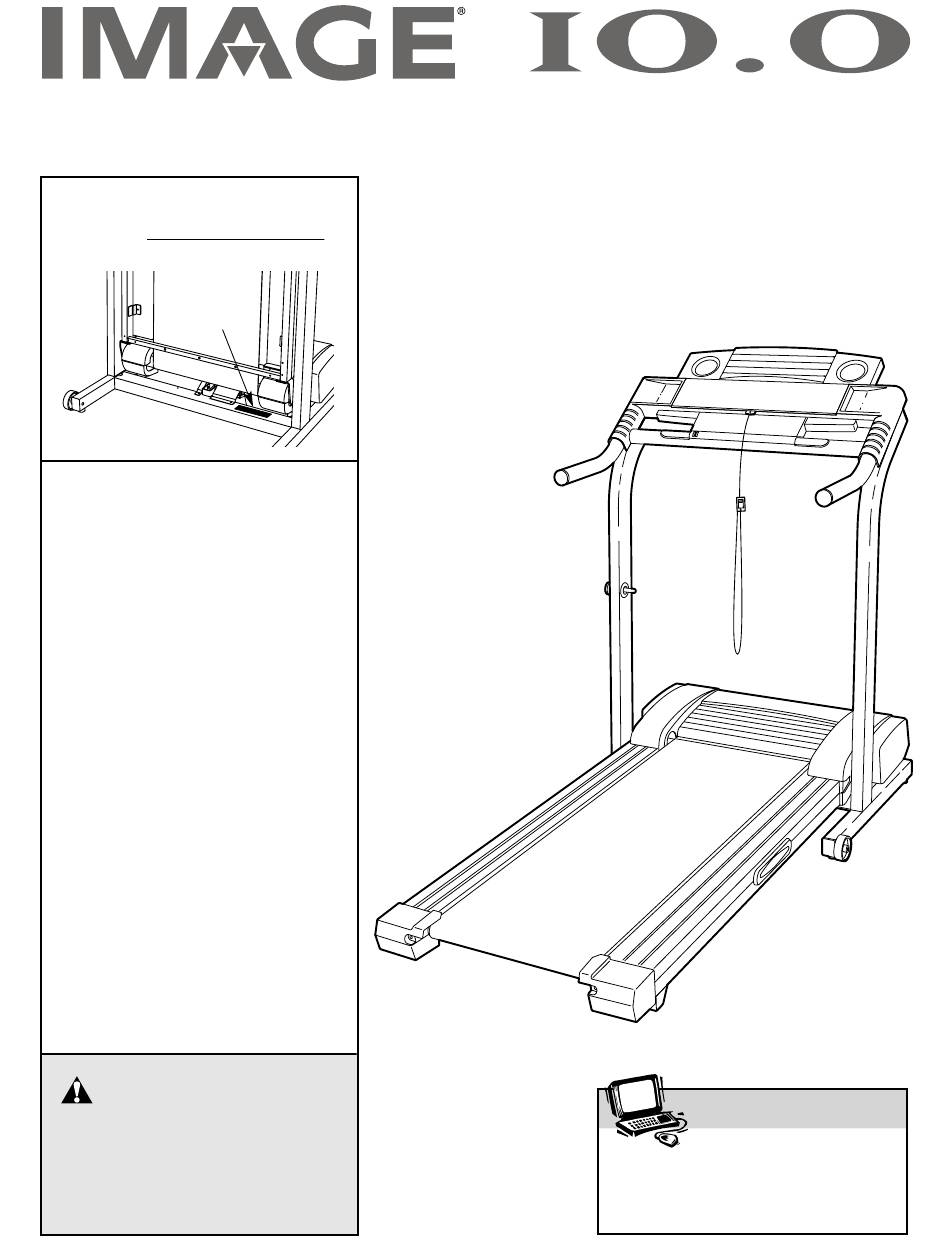

Model No. IMTL39522
Serial No.
Serial
Number
Decal
QUESTIONS?
If you have questions, or if there
are missing or damaged parts,
we will guarantee complete sat-
isfaction through direct assis-
tance from our factory.
TO AVOID DELAYS, PLEASE
CALL DIRECT TO OUR TOLL-
FREE CUSTOMER HOT LINE.
The trained technicians on our
Customer Hot Line will provide
immediate assistance, free of
charge to you.
CUSTOMER HOT LINE:
1-800-999-3756
Mon.–Fri., 6 a.m.–6 p.m. MST
CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Save this manual
for future reference.
USER'S MANUAL
Patent Pending
Visit our website at
www.imagefitness.com
new products, prizes,
fitness tips, and much more!

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IMTL39522 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Image Fitness IMTL39522

Summary of Contents for Image Fitness IMTL39522

  • Page 1 Model No. IMTL39522 USER'S MANUAL Serial No. Serial Number Decal QUESTIONS? If you have questions, or if there are missing or damaged parts, we will guarantee complete sat- isfaction through direct assis- tance from our factory. TO AVOID DELAYS, PLEASE CALL DIRECT TO OUR TOLL- FREE CUSTOMER HOT LINE.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS IMPORTANT PRECAUTIONS ..............3 BEFORE YOU BEGIN .

  • Page 3: Important Precautions

    IMPORTANT PRECAUTIONS WARNING: To reduce the risk of burns, fire, electric shock, or injury to persons, read the following important precautions and information before operating the treadmill. 1. It is the responsibility of the owner to ensure 12. Failure to use a properly functioning surge that all users of this treadmill are adequately suppressor could result in damage to the con- informed of all warnings and precautions.
  • Page 4 22. When using iFIT.com CDs and videos, an treadmill regularly. electronic “chirping” sound will alert you when the speed of the treadmill is about to 26. Never insert or drop any object into any change. Always listen for the “chirp” and be opening.

  • Page 5: Before You Begin

    The model number of the treadmill is can be folded up, requiring less than half the floor IMTL39522. The serial number can be found on a space of other treadmills. decal attached to the treadmill (see the front cover of this manual for the location).

  • Page 6: Assembly

    ASSEMBLY Assembly requires two persons. Set the treadmill in a cleared area and remove all packing materials. Do not dispose of the packing materials until assembly is completed. Assembly requires your own Phillips screw- driver , adjustable wrench , wire cutters , and needlenose pliers Note: The underside of the treadmill walking belt is coated with high-performance lubricant.
  • Page 7 2. Identify the Right Upright (10), which has a large rectan- gular hole near the upper end (see drawing 2b). Have a second person hold the Right Upright near the Wire Harness (17). Insert the end of the Wire Harness into the Right Upright and out of the rectangular hole near the upper end as shown.
  • Page 8 6. Attach the Handrail (85) to the Console Base (87) with two 1 1/2” Screws (79) as shown. Attach the other Handrail (not shown) to the other side of the Console Base in the same way. Insert the excess Wire Harness (17) down into the Right Upright (10) as you set the right Handrail (85) on the Right Upright.

  • Page 9: Operation And Adjustment

    OPERATION AND ADJUSTMENT THE PERFORMANT LUBE WALKING BELT an equipment-grounding conductor and a grounding plug. Plug the power cord into a surge suppressor, Your treadmill features a walking belt coated with and plug the surge suppressor into an appropriate PERFORMANT LUBE , a high-performance lubricant.
  • Page 10 CONSOLE DIAGRAM Note: If there is a thin sheet of Clip plastic on the console, remove it. The console also features iFIT.com interactive technol- CAUTION: ogy. IFIT.com technology is like having a personal trainer Before operating the right in your home. Using the included audio cable, you console, read the following precautions.
  • Page 11 HOW TO TURN ON THE POWER Each time a button is pressed, the speed setting will change by 0.1 mph; if a button is held down, the speed setting will change in increments of 0.5 Plug in the power cord (see page 9). mph.
  • Page 12 Time display—When If the displayed heart rate appears to be too high the manual mode or the or too low, or if your heart rate is not displayed, lift iFIT.com mode is se- your thumb off the pulse sensor for a few seconds. lected, this display will Then, place your thumb on the pulse sensor as de- show the elapsed time.
  • Page 13 The program will continue until the speed setting Press the Start button or the Speed button to for the last period is shown in the Current Period start the program. column and no time remains in the Time display. The walking belt will then slow to a stop. A moment after the button is pressed, the tread- mill will automatically adjust to the first speed set- Note: If the speed setting for the current period is...
  • Page 14 HOW TO CONNECT YOUR PORTABLE STEREO HOW TO CONNECT THE TREADMILL TO YOUR CD PLAYER, VCR, OR COMPUTER Note: If your stereo has an RCA-type AUDIO OUT jack, see instruction A below. If your stereo has a 3.5mm LINE OUT jack, see instruction B. If your To use iFIT.com CD’s, the treadmill must be con- stereo has only a PHONES jack, see instruction C.
  • Page 15 HOW TO CONNECT YOUR HOME STEREO HOW TO CONNECT YOUR COMPUTER Note: If your stereo has an unused LINE OUT jack, Note: If your computer has a 3.5mm LINE OUT jack, see instruction A below. If the LINE OUT jack is see instruction A.
  • Page 16 HOW TO CONNECT YOUR VCR B. Plug one end of the audio cable into the jack be- neath the console. Plug the other end of the cable Note: If your VCR has an unused AUDIO OUT jack, into the included adapter. Plug the adapter into an see instruction A below.
  • Page 17 If the speed setting is too high or too low, you can HOW TO USE IFIT.COM CD AND VIDEO manually override the setting at any time by PROGRAMS pressing the Speed buttons on the console. However, when the next “chirp” is heard, the speed will change to the next setting of the CD To use iFIT.com CD’s or videocassettes, the treadmill or video program.
  • Page 18 Return to the treadmill and stand on the foot HOW TO USE PROGRAMS DIRECTLY FROM rails. Find the clip attached to the key and slide OUR WEB SITE the clip onto the waistband of your clothes. When the on-screen countdown ends, the program Our Web site at www.iFIT.com allows you to access will begin and the walking belt will begin to move.
  • Page 19 THE INFORMATION MODE The Distance/Laps display will show the total number of miles The console features an information mode that keeps (or kilometers) that the walking track of the total number of hours that the treadmill has belt has moved. been operated and the total number of miles that the walking belt has moved.

  • Page 20: How To Fold And Move The Treadmill

    HOW TO FOLD AND MOVE THE TREADMILL HOW TO FOLD THE TREADMILL FOR STORAGE Before folding the treadmill, adjust the incline to the lowest position. If this is not done, the treadmill may be permanently damaged. Next, unplug the power cord. CAUTION: You must be able to safely lift 45 pounds (20 kg) in order to raise, lower, or move the treadmill.
  • Page 21 HOW TO LOWER THE TREADMILL FOR USE 1. Hold the upper end of the treadmill with your right hand as shown. Using your left hand, pull the latch knob to the left and hold it. Pivot the treadmill down until the frame is past the pin.

  • Page 22: Troubleshooting

    TROUBLESHOOTING Most treadmill problems can be solved by following the steps below. Find the symptom that applies, and follow the steps listed. If further assistance is needed, please call our Customer Service Department toll- free at 1-800-999-3756, Monday through Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays). PROBLEM: The power does not turn on SOLUTION: a.
  • Page 23 PROBLEM: The walking belt slows when walked on SOLUTION: a. Use only a single-outlet surge suppressor that meets all of the specifications described on page 9. b. If the walking belt is overtightened, treadmill perfor- mance may decrease and the walking belt may be- come damaged.

  • Page 24: Conditioning Guidelines

    CONDITIONING GUIDELINES ergy. Only after the first few minutes does your body WARNING: begin to use stored fat calories for energy. If your goal Before beginning this is to burn fat, adjust the speed and incline of the tread- or any exercise program, consult your physi- mill until your heart rate is near the lowest number in cian.
  • Page 25 SUGGESTED STRETCHES The correct form for several basic stretches is shown at the right. Move slowly as you stretch—never bounce. 1. Toe Touch Stretch Stand with your knees bent slightly and slowly bend forward from your hips. Allow your back and shoulders to relax as you reach down toward your toes as far as possible.
  • Page 26 NOTES...

  • Page 27: Part List

    PART LIST—Model No. IMTL39522 R1002A To identify the parts listed below, see the EXPLODED DRAWING in the center of this manual. No. Qty. Description No. Qty. Description No. Qty. Description Motor Belt Isolator Key/Clip Pulley/Flywheel/Fan Isolator Fastener Incline Motor Belly Pan Motor Nut 3”...

  • Page 28: Ordering Replacement Parts

    To order replacement parts, call our Customer Service Department toll-free at 1-800-999-3756, Monday through Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays). When ordering parts, please be prepared to give the following information: • The MODEL NUMBER OF THE PRODUCT (IMTL39522) • The NAME OF THE PRODUCT (IMAGE ®...
  • Page 29 EXPLODED DRAWING—Model No. IMTL39522 R1002A To identify parts shown on this EXPLODED DRAWING, refer to the PART LIST on page 27 of the user’s manual.
  • Page 30 EXPLODED DRAWING—Model No. IMTL39522 R1002A...
