Thank you for purchasing this quality product. Be sure to check all packing materials carefully for small parts,
which may have come loose inside the carton during shipment. Identify and count all items and compare with
the PARTS LIST and/or HARDWARE LIST shown below.
Caution: Please read the instructions thoroughly before assembly.
1. We recommend that you assemble this product with the assistance of another person; this will make the
assembly easier, and will help eliminate damage to the product or injury to persons during assembly.
2. Please do not over tighten screws or bolts until the assembly is completed.
3. Please put all parts on a non-abrasive floor before assembly,and follow the assembly steps to assemble
your newly purchased product correctly and efficently.
PARTS LIST
NO.
COMPONENT
A
CHAIR BACK
B
SEAT FRAME
C
FRONT LEG
CUSHION
D
SEAT
Assembly Instructions
SKETCH
QTY.
4 PCS
4 PCS
8 PCS
4 PCS
MADE IN VIETNAM
ITEM NO. D3651-50S

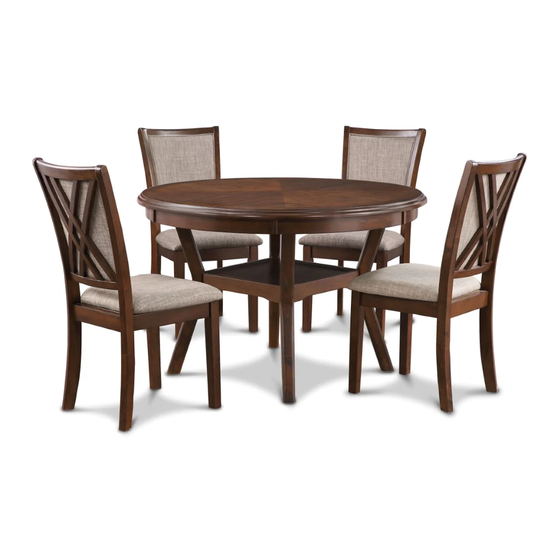

AMY 5PC DINING SET
(SET INCLUDES 4 CHAIRS)
HARDWARE LIST
NO.
COMPONENT
FLAT WASHER
1
5/16" DIA.
SPRING
WASHER
2
5/16" DIA.
NUT
3
5/16" DIA.
ALLEN
4
WRENCH
5/16" DIA.
SHORT BOLT
5
1/4" x 1 3/4"
LONG BOLT
6
1/4" x 3"
WOOD SCREW
7
#8 x 1 1/2"
SKETCH
QTY.
44 PCS
44 PCS
16 PCS
1 PC
12 PCS
16 PCS
24 PCS
PAGE: 1 OF 3
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for New Classic Home Furnishings D3651-50S
Summary of Contents for New Classic Home Furnishings D3651-50S
- Page 1 Assembly Instructions ITEM NO. D3651-50S AMY 5PC DINING SET (SET INCLUDES 4 CHAIRS) Thank you for purchasing this quality product. Be sure to check all packing materials carefully for small parts, which may have come loose inside the carton during shipment. Identify and count all items and compare with the PARTS LIST and/or HARDWARE LIST shown below.
- Page 2 Assembly Instructions ITEM NO. D3651-50S AMY 5PC DINING SET (SET INCLUDES 4 CHAIRS) To assemble the chairs, please follow the following steps and repeat for each chair: STEP 1 STEP 2 Lay the chair back on soft clean surface and install Insert long bolts to secure the seat frame.
- Page 3 Assembly Instructions ITEM NO. D3651-50S AMY 5PC DINING SET (SET INCLUDES 4 CHAIRS) PARTS LIST HARDWARE LIST COMPONENT SKETCH QTY. COMPONENT SKETCH QTY. SPRING WASHER 1 PC 16 PCS TABLE TOP 5/16” DIA. FLAT WASHER MIDDLE SHELF 1 PC 16 PCS 5/16”...
