New Classic Home Furnishings 45-150-21C Assembly Instructions

ITEM：45-150-21C
PARTS AND HARDWARE LIST
Use only the screws provided
to assemble chair. Using
different or longer screws could
result in splits or damage to the
chair.
DO NOT USE POWER TOOLS FOR
ASSEMBLY
10. SECURE STRETCHERS and LINK BARS: Insert a Long Screw (G) through the predrilled hole on each stretcher and link bar and tighten with a screwdriver.
11. ATTACH SEAT: Place Seat (B) on the Seat Frame and secure from underside using short screws provided.
COUNTER CHAIR-CUSHION SEAT- ASSEMBLY INSTRUCTIONS

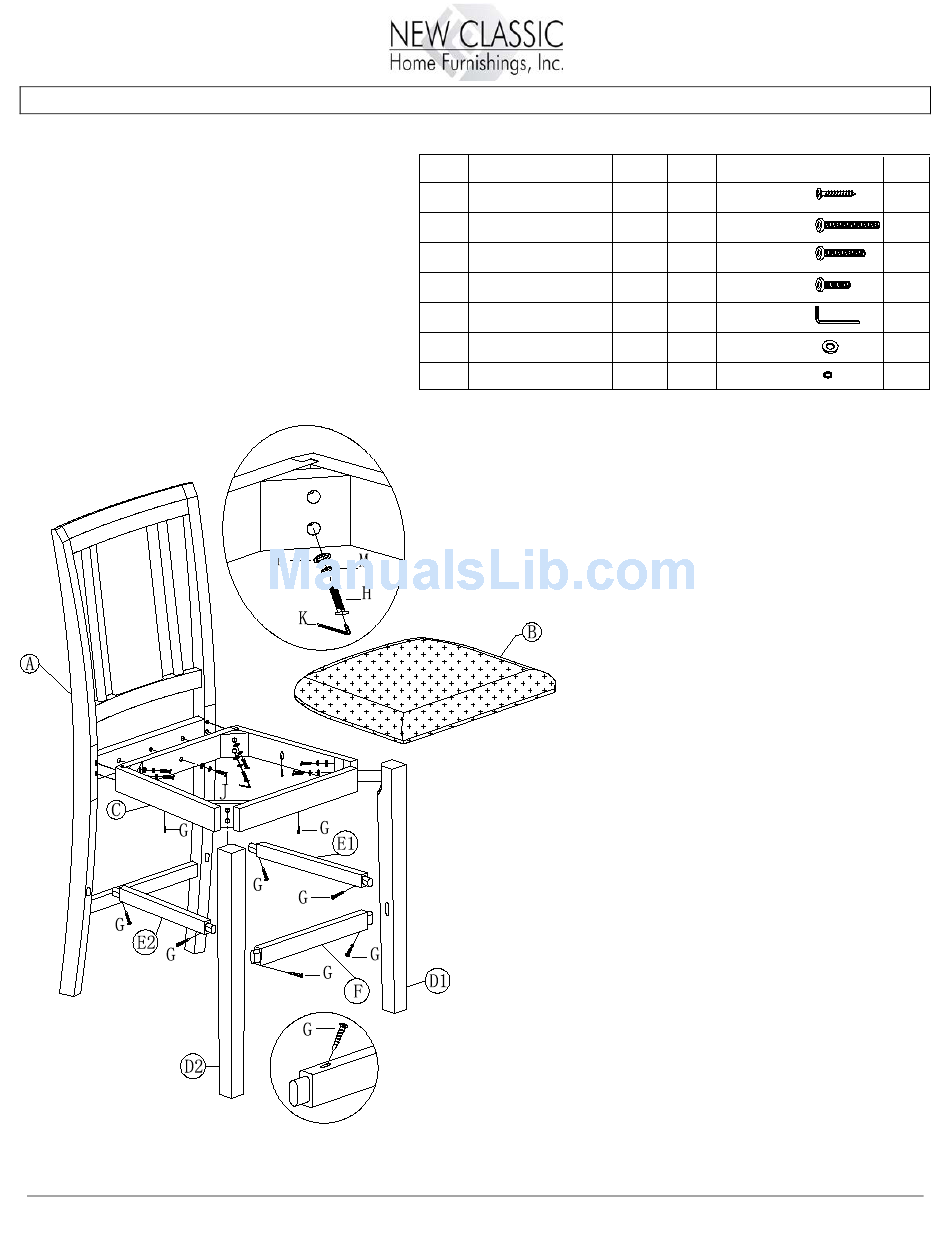

REFER TO DIAGRAM BEFORE COMPLETING EACH STEP
New Classic Home Furnishings
Tel 909-484-7676 • FAX 909-484-2840 • WEB www.newclassicfurniture.com
NO
DESCRIPTION
A
Back Leg Assembly
C Seat Frame
D
1 FrontLeg(Left)
D
2 FrontLeg(Right)
E
1
Link Bar(Left)
E
2 Link Bar(Right)
F
Front Stretcher
1.
2.
3.
4.
5.
6.
7.
8.
9.
QTY
NO
DESCRIPTION
G
1PC Long Screw
1PC H Long Bolt 3 1/4inches
1PC
I Medium Bolt 2 1/4inches
J
Short Bolt 1 2/4inches
1PC
K
Allen Wrench
1PC
1PC
L
Flat Washer
M
LockWasher
1PC
ASSEMBLE SEAT FRAME AND BACK: Match up the holes
on the Seat Frame (C) to the Back Leg Assembly (A).
Thread a Flat Washer (L) onto a Long Bolt (H). Then slide a
Lock Washer (M) on the same bolt and insert the bolt
assembly into the predrilled corner holes of the Seat Frame
and the matching holes on the Back Leg Assembly. Tighten
them with the Allen Wrench (K) provided. Repeat with other
back corner.
Thread a Flat Washer (L) onto a Short Bolt (J). Then slide a
Lock Washer (M) on the same bolt and insert this assembly
into the predrilled holes on the back of the Seat Frame and
the matching holes on the Back Leg Assembly. Tighten
them with the Allen Wrench (K) provided. Repeat with remain
holes on back of seat frame.
Insert Link Bars (E1, E2) into the holes provided on the lower
portion of the Back Leg Assembly (A). There is a predrilled
hole on each end of the link bars. Make sure those holes are
positioned facing down (Towards the floor when the chair is
completely assembled)
ASSEMBLE FRONT: Insert the Front Stretcher (F) into the
Front Legs (D1 and D2) using the holes on the lower portion
of each leg. There is a predrilled hole on each end of the
stretcher. Make sure the hole is facing towards the floor after
the stretcher is inserted.
CONNECT FRONT AND BACK: Insert the Front Leg
Assembly from Step 4 into the appropriate slots of the Seat
Frame (C).
Fit the Link Bars (E1, E2) from step 3 into the appropriate
holes of the front legs.
Match the holes at the top corner of each leg with the holes at
the front corners of the Seat Frame. Thread a Flat Washer (L)
and Lock Washer (M) onto a Medium Bolt (I). Insert this bolt
assembly through the Seat Frame and into the matching holes
on the Front Legs. Do not fully tighten. Repeat with the other
legs, securing loosely.
Before completely tightening Seat Frame to Legs, check to
make sure the holes on the Front Stretcher and Link Bars are
still facing down (Towards the Floor when the chair is
completely assembled). Tighten all bolts.
QTY
9PCS
4PCS
4PCS
1PC
1PC
9PCS
9PCS
