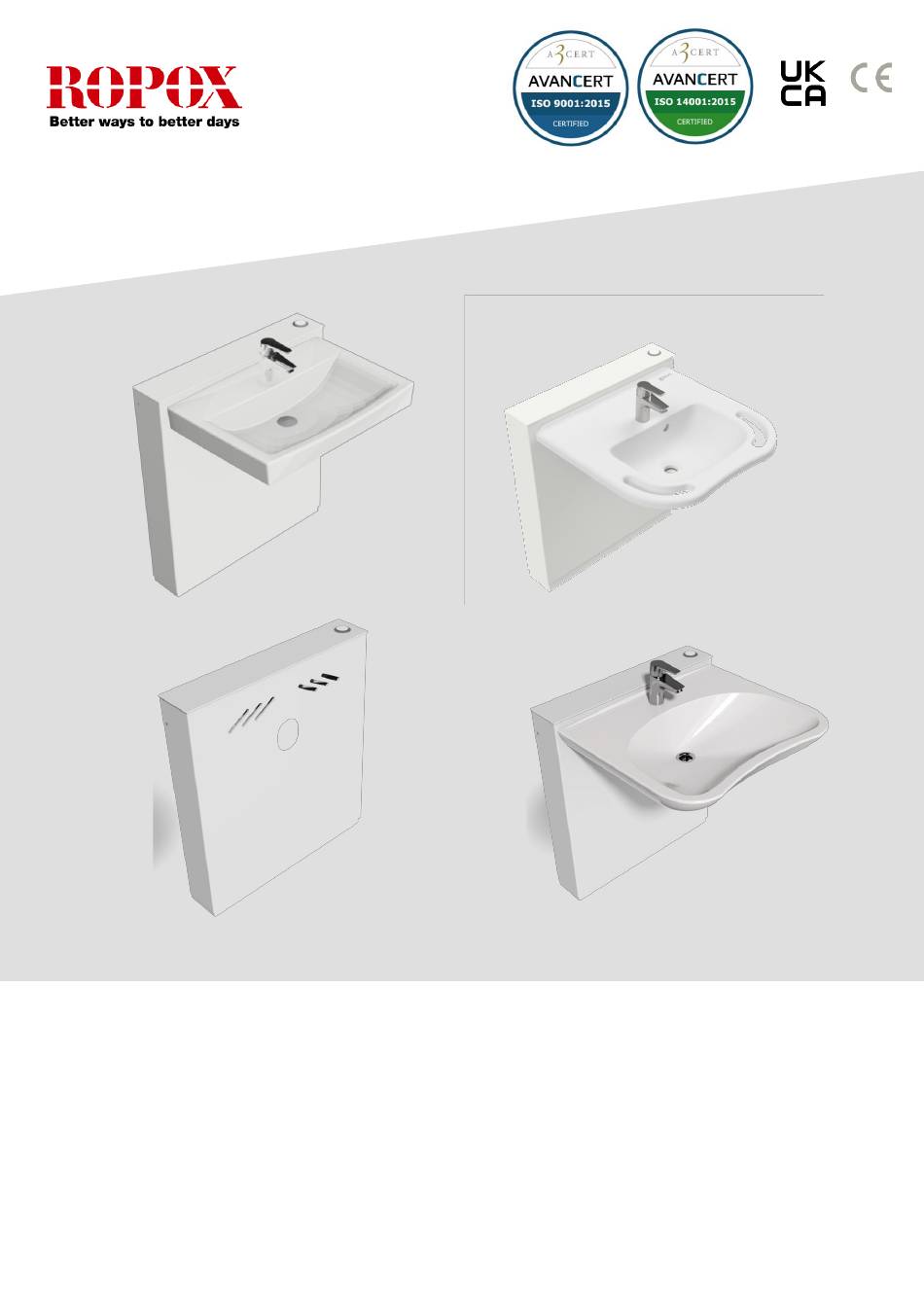

- Page 1 Ropox StandardLine Washbasin 40-14770, 40-14771, 40-14772, 40-14773 User manual and Mounting instructions This manual should always be in close proximity to the product. TF 200.02.0026_eng 17-05-2022 © ROPOX 2022...
-
Page 2: Table Of Contents
Table of Contents SYMBOLS USED IN THIS MANUAL ..................... 3 GENERAL SAFETY ..........................3 2.1 P ..........................5 RODUCT NIT LABEL GENERAL REQUIREMENTS ......................... 6 3.1 P ..........................6 RODUCT INFORMATION 3.2 I ............................6 NTENDED USE 3.3 I ..........................6 NTENDED OPERATOR 3.4 E .......................... -
Page 3: Symbols Used In This Manual
Symbols used in this manual Warning Symbol Indication of potentially hazardous situation. If not avoided, it can result in serious injury or death. Caution Symbol Indication of potentially hazardous situation which may result in minor or moderate injury. It may also be used to alert against unsafe practices. Notification Symbol This symbol is used to notify correct use and handling of the product. - Page 4 The information in this manual is based on correct installation in accordance with installation instructions for this product. Ropox cannot be held liable if the product is used in any way that differs from stated in this manual and/or installation instruction.
-
Page 5: Product Unit Label
2.1 Product Unit label This product is UKCA-marked in accordance with: UK SI 2002 No. 618 - The Medical Devices Regulations 2002, and its amendments UK SI 2008 No. 1597 - The Supply of Machinery (Safety) Regulations 2008, and its amendments This product is CE-marked in accordance with: European Medical Device Regulation (EU)2017/745... -
Page 6: General Requirements
General requirements 3.1 Product information Manufacturer Ropox A/S Ringstedgade 221, DK-4700 Naestved +45 55 75 05 00 Email: Info@ropox.com Product models Part number Model Configuration 40-14770 StandardLine Unit without washbasin 40-14771 StandardLine Standard washbasin 40-14772 StandardLine Support washbasin 40-14773 StandardLine... -
Page 7: Essential Performance
3.4 Essential performance The product does not have essential performance, as the patient and user do not experience any risk in case of loss of product function/performance. 3.5 Non-clinical functions Height adjusting offers better ergonomics to the user. 3.6 Clinical functions The product does not have any clinical functions. - Page 8 40-14772 (Height adjustment 685-985mm) 40-14773 (Height adjustment 700-1000mm) NB! All dimensions are in mm TF 200.02.0026_eng...
-
Page 9: Operation
3.8 Operation Standard control The washbasin height is adjusted by means of the fixed Ropox control button mounted in the top of the lifting unit. The washbasin is raised/lowered by pressing the up/down symbol on the control. The washbasin stops moving as soon as the button is released. -
Page 10: Mounting Instruction
Mounting instruction Installation interfaces Construction The wall must be made of a material suited for screw mounting and approved for damp rooms. The hatched area is the minimum area for reinforcement of the wall. Tested in accordance DS/ISO 17966:2016 with the following max. - Page 11 Water and drain placed in floor If it is not possible to have the water supply and drain be placed in the wall, it is recommended to place it within the hatched green area in the floor. The drain is Ø32. Water and drain placed outside the lifting unit If the water supply and the drain is placed outs-ide the lifting unit, it is recommended to make a cut-out in the inner and outer covers, to allow water and drain to be brought inside the frame.
-
Page 12: Connection Adapters
Connection adapters The components illustrated below are available depending on the type of installation in the building. Water connection adapters Installation in Hoses from washbasin Adapter room (not included) No adapter needed 1/2" Thread 1/2” 1/2" -> 3/8" 3/8" Item no. 97001670 Thread 1/2"... -
Page 13: List Of Components
List of components StandardLine lifting unit with washbasin 40*14770-036 Actuator bracket 30-67636 Flexi legs without spindle Incl. 30*65550-013 Adjustment screw 96000167 Ferrule 40*14770-017 Alu profile 622mm 40*14770-028 Bracket for washbasin 40*14770-026 Alu top plate 40*14770-024 Outside cover 40*14770-025 Inside cover TF 200.02.0026_eng... - Page 14 97000488 Actuator 97001691 CA30 controlbox 97000427 Network cable for controlbox 97001713 Bracket for controlbox 97000476 Retaining ring 40*14770-044 Mounting parts for control Incl. 95091437 Taptite screw M3x10 97001800 Control 40*43043-133 Control cover 96000165 Strips black 3,5/140mm 40*14770-041 Mounting parts electrical Incl.
- Page 15 40-14776 Plumbing kit for StandardLine Incl. 97001601 Prevex siphon Connection hose - ½”x ½” 1m 97001120 97001161 Flex drain Ø32/32 pipe 97001035 32x88,5° white PP Wafix elbow HT Nipple ½” to 3/8” 97001012 96000170 Strips black 4,8/290mm 97001605 Prevex 100mm extension 95091070 Plate screw Ø4,8x70 cross recess A2 30*65500-008...
-
Page 16: Installation Of Product
Installation of product Prior to assembly check that all parts have been provided according to the list of components. See list of components. Caution! Mounting must always be carried out by qualified personnel Warning! Before use always make sure that mains cable and hand control cable will be able to travel freely without the risk of squeezing or disconnecting the product as result of the movement. - Page 17 68mm Unscrew the adjustment screws 68mm below the bracket. Place the lifting unit on the wall and mark holes for screws. Drill holes and use the enclosed rawlplugs. TF 200.02.0026_eng...
- Page 18 Fix the unit to the wall. If the wall is uneven, or the unit needs be moved from the wall due to skirting boards, use the spacers. TF 200.02.0026_eng...
- Page 19 Place 2x M6 nuts into the profile and fix the bracket for the siphon with 2x M6x12. Push the siphon into the bracket and fasten the connecting pipe with strips through the two holes. TF 200.02.0026_eng...
- Page 20 Assemble drain hoses, water, and power as shown on the picture. Alternatively, the water and drain are mounted in the floor. TF 200.02.0026_eng...
- Page 21 Remove the protective foil, and glue in the control on the top plate. Plug the cable into the control box running through the frame as shown on the picture. Perform a functionality test of the electrical system TF 200.02.0026_eng...
- Page 22 Push the inner cover in, so that it stands on the floor. Push the outer cover in place so that it hangs onto the two rods. Fix the outer cover onto the two rods with M4 lock nuts and washers. Fix the wash basin to the unit with the accompanying bolts and fix the top plate to the unit.
- Page 23 Mount the rest of the drain and connect the water to the tap. Move the unit to upper position and lift the inside cap to turn on the water. Now pull the inside cap back down to the floor to finish the installation. TF 200.02.0026_eng...
-
Page 24: Cable Diagram
Cable diagram The round control pad is a standard accessory that comes with the StandardLine. Upon request, it’s possible to get the StandardLine with a handcontrol with a flexible cord, as well. This handcontrol allows easier control of the unit, especially from range. Cable diagram with both controls TF 200.02.0026_eng... -
Page 25: Functionality Testing
➢ If the StandardLine washbasin has not been installed in accordance with these mounting instructions, the warranty may be void. ➢ Only use original Ropox spare parts as replacements parts. If other parts are used, the warranty may be void. -
Page 26: Cleaning
During use, the product may get dirty. It is important that the washbasin and the lifting unit are cleaned in accordance with these instructions. Ropox StandardLine may be wiped with a wrung cloth with lukewarm water and a mild detergent. Do not use corrosive/grinding fluids or scouring sponges and brushes. -
Page 27: Maintenance
Repair beyond what is described in this manual may only be done by Ropox designated service personnel. Only use original Ropox spare parts as replacement parts. If other parts are used, the warranty may be void. -
Page 28: Service Schedule
Service schedule Service and maintenance Serial no. Service and maintenance Serial no. Date: Date: Signature: Signature: Remarks: Remarks: Service and maintenance Serial no. Service and maintenance Serial no. Date: Date: Signature: Signature: Remarks: Remarks: Service and maintenance Serial no. Service and maintenance Serial no. -
Page 29: Spare Parts
10. Spare parts Position Description Number in product Item no. Outer cover 40*14770-024 Inner cover 40*14770-025 Motor LA31.6 97000488 Control box CA30 97001691 Control 97001700 Bracket for LA31/CA30 97001713 Plumbing kit for StandardLine unit 40-14776-1 Standard washbasin 60x42cm/ 40-15621-2 60cm Straight Support/ 97001582 Hospital washbasin 40-15622-1... -
Page 30: Electromagnetic Compatibility
13. Complaints Please see general terms of sale and delivery on www.ropox.com ROPOX A/S Ringstedgade 221 DK – 4700 Næstved Tel.: +45 55 75 05 00 Fax.: +45 55 75 05 50 E-mail: info@ropox.dk www.ropox.com...
