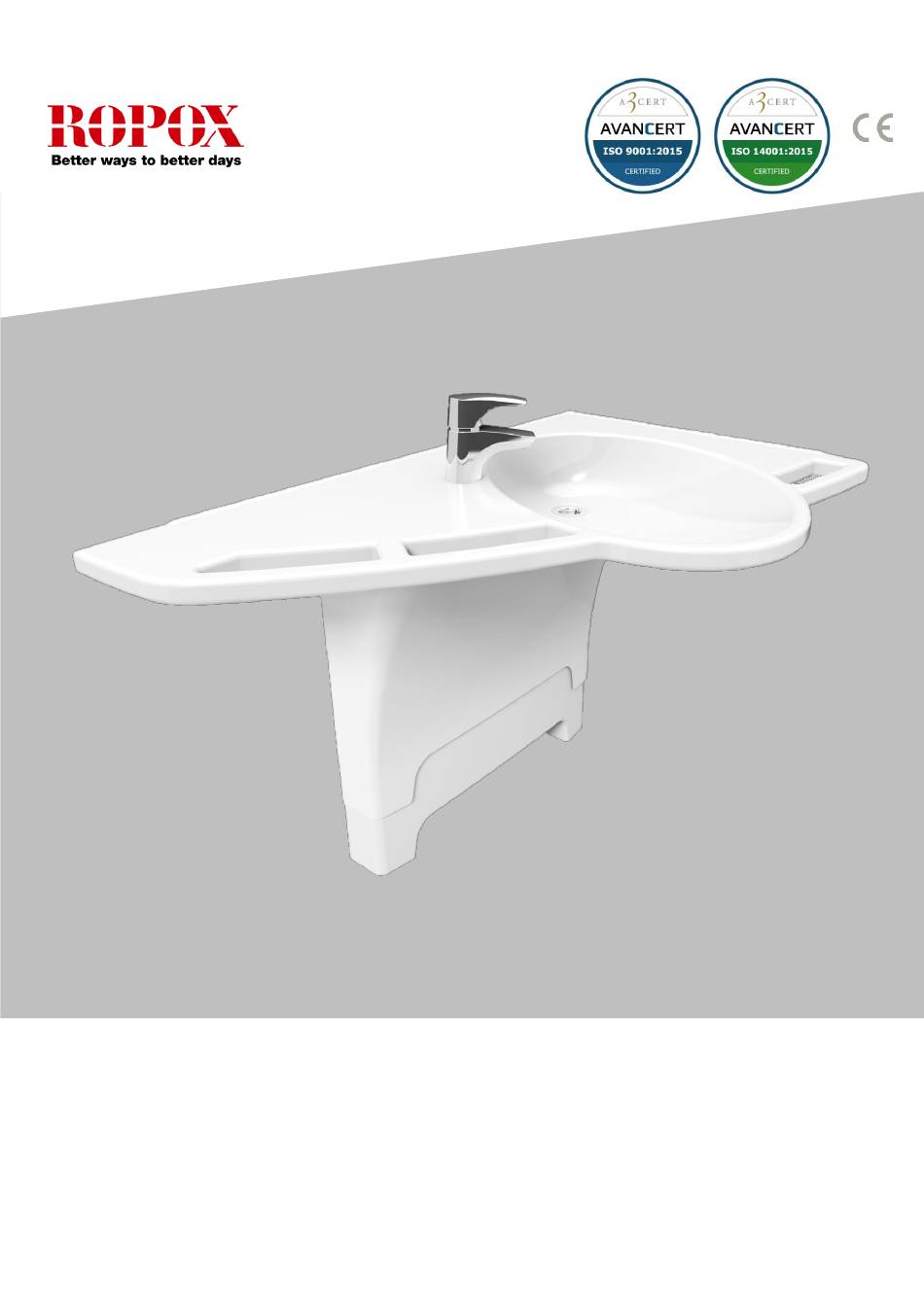

- Page 1 Ropox Support Washbasin Fixed – Basic - Manual USER MANUAL Keep this manual with the product at all times PA 2004 00634 PDF 6096 / 01.07.2019...
-
Page 2: Table Of Contents
10.4 Inspection ............................ 11 10.5 Service schedule ......................... 12 FAULT FINDING ........................... 12 LIST OF SPARE PARTS ........................13 OPTIONAL EXTRAS ..........................13 LABEL ..............................14 EU – D ......................15 ECLARATION OF ONFORMITY COMPLAINT ............................16 © ROPOX 2013 Page 2... -
Page 3: Introduction
Application Ropox Support Washbasin Basic and Manual may be adjusted in height for optimum working height for user and carer. Ropox Support Washbasin must NOT be used as a lifting table or person lifter. The product is designed for indoor use under normal room temperature and humidity as specified in Section 4. -
Page 4: Operation
Covers, if any, must be removed before adjustment of these models. Manual height adjustment (applying to 40-44014/15): The height of the washbasin may be easily adjusted by means of the detachable hand crank. © ROPOX 2013 Page 4... -
Page 5: Technical Data
Tested with max user weight of 200 kg in accordance with DS/EN 12182. Temperature: 10-40° C Air humidity: 5-85 % (non-condensing) Complaint: See Complaint page 15 Manufacturer: Ropox A/S, DK-4700 Næstved, Phone: +45 55 75 05 00 e-mail: info@ropox.dk, www.ropox.dk © ROPOX 2013 Page 5... -
Page 6: Dimension Sketches
Dimension sketches Fixed 40-44010/11 633mm 1000mm 166mm Basic height adjustment 40-44012/13 633mm 1000mm 518mm 577mm © ROPOX 2013 Page 6... - Page 7 Manual height adjustment 40-44014/15 633mm 1000mm 580mm 657mm Accessories – covers 40-44021/22 273mm 550-850mm 90mm 653mm 125mm © ROPOX 2013 Page 7...
-
Page 8: Recommended Positioning Of Water And Drain
It is recommended to position the fixed water intake on the wall so that it points downward at a height of max. 50 cm from the floor. This ensures positioning of the flexible hoses close to the wall without folds. A 90° valve with ½” thread is recommended. © ROPOX 2013 Page 8... -
Page 9: Connection Adapters
Ø32 -> Ø50 Item no. 97001661 Drain pipe extensions Drain pipe from basin Coupling piece Extra drain pipe Ø32 Flex hose, 27-62cm Item no. 97001162 Ø32 Ø32-Ø32 Ø32 Flex hose, 40-110cm Item no. 97001662 Item no. 97001161 © ROPOX 2013 Page 9... -
Page 10: Mounting Instructions And List Of Components
Mounting Instructions. Performance test After completed installation and before use, all functions of the Ropox Support Washbasin must be tested. After that, a performance test must be carried out at least once a year by competent personnel. -
Page 11: Service And Maintenance
During use, the product may get dirty. It is very important to clean the product as described in these instructions. Wipe Ropox Support Washbasin with a wrung cloth with lukewarm water and a mild detergent. Do not use enchants, abrasives or grinding cloths, brushes and sponges. -
Page 12: Service Schedule
1. Check the siphon for clogging and clean it, if required. 2. Check that the flexible hose on the wall has not been positioned so high that it acts as an extra siphon. Cf. recommendation, Section 6. © ROPOX 2013 Page 12... -
Page 13: List Of Spare Parts
Item No. 40-44040 Auxiliary lever for Oras Saga mixer tap Item No. 40-14680 Mixer tap, Damixa Clover Easy Item No. 40-44044 No-touch mixer tap, Oras Electra 6250F Item No. 40-44045 Ropox overflow plug Item No. 40-40935 © ROPOX 2013 Page 13... -
Page 14: Label
The user manual must be read before use. Waste must be sorted – if possible, for recycling. Ropox is the manufacturer of the product in question. CE marking. This product meets the requirements for General Safety and Functionality of the current EU Directives and Standards. -
Page 15: Eu - Declaration Of Conformity
EU – Declaration of Conformity The undersigned hereby declares that the following products: Ropox Support Washbasin Item numbers: 40-44010, Ropox Support Washbasin, Fixed (left) 40-44011, Ropox Support Washbasin, Fixed (right) 40-44012, Ropox Support Washbasin, Basic (left) 40-44013, Ropox Support Washbasin, Basic (right) -
Page 16: Complaint
Complaint See General Terms of Sale and Delivery on www.ropox.dk ROPOX A/S Ringstedgade 221 DK – 4700 Næstved Tel.: +45 55 75 05 00 Fax.: +45 55 75 05 50 E-mail: info@ropox.dk www.ropox.dk © ROPOX 2013 Page 16...
