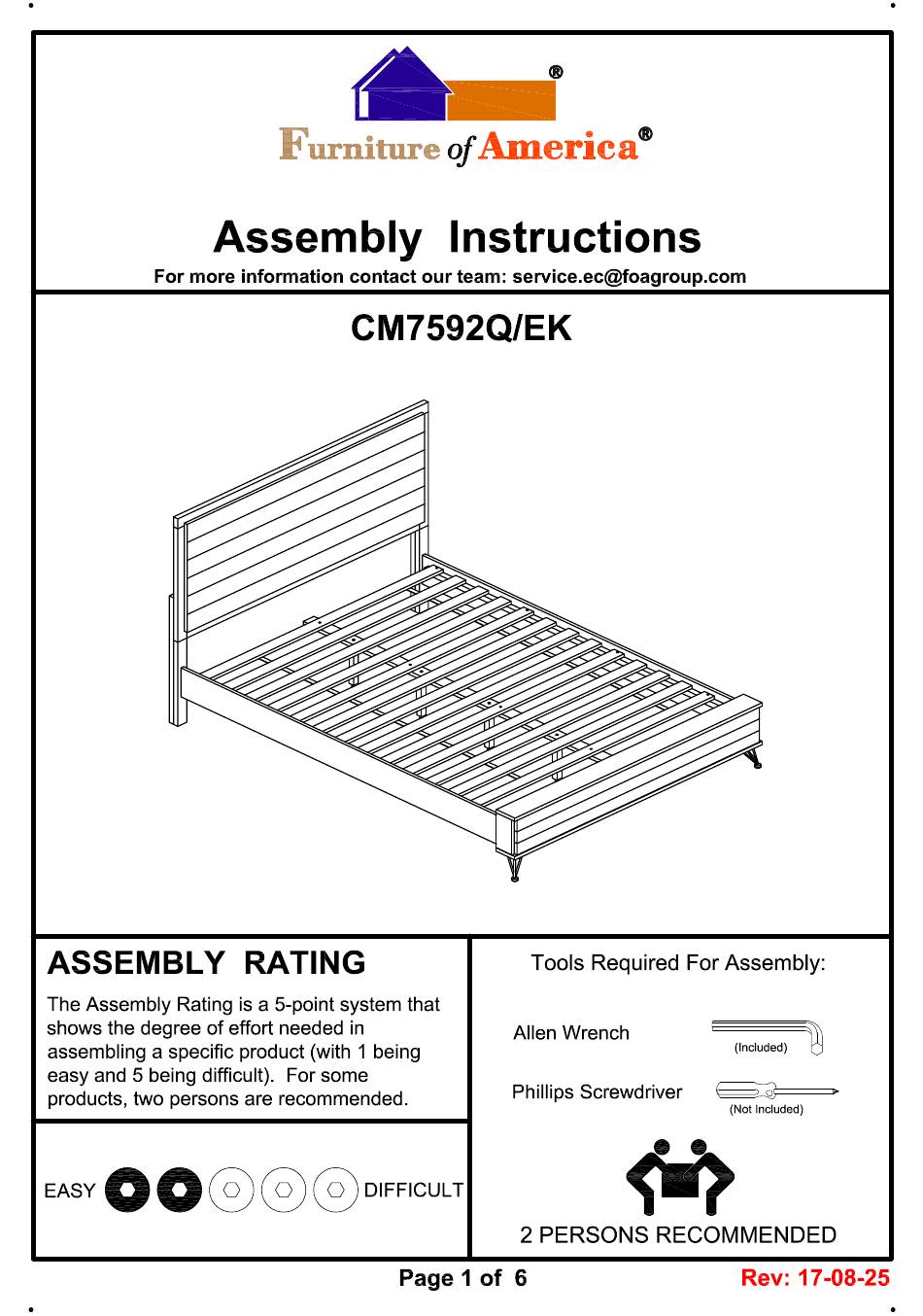

Summary of Contents for Furniture of America CM7592Q

  • Page 4 Prepare 6 bolts assembly by inserting lock washer (#B), then flat washer (#C) onto bolts (#A). Align HB legs (#2R/L) to the holes of the headboard (#1), then secure by using bolts (#A). Prepare 6 bolts assembly by inserting lock washer (#B), then flat washer (#C) onto bolts (#E).
  • Page 5 Insert and attach the hooks of the side rails (#5) to the latches of the headboard (#1) and footboard (#3). Make sure it is firmly in place. Attach support legs (#8) to the holes of the center slat (#7). Adjust leveler of the support legs (#8) according to ground level.
  • Page 6 Place center slat (#7) to the middle of the bed frame, then align slats (#6) to the side rails (#5) and holes of the center slat (#7). Secure by using screws (#F).
  • Page 11 Prepare 6 bolts assembly by inserting lock washer (#B), then flat washer (#C) onto bolts (#A). Align HB legs (#2R/L) to the holes of the headboard (#1), then secure by using bolts (#A). Prepare 6 bolts assembly by inserting lock washer (#B), then flat washer (#C) onto bolts (#E). Align legs (#4) to the holes of the footboard (#3).
  • Page 12 Insert and attach the hooks of the side rails (#5) to the latches of the headboard (#1) and footboard (#3). Make sure it is firmly in place. Attach support legs (#8) to the holes of the center slat (#7). Adjust leveler of the support legs (#8) according to ground level.
  • Page 13 Place center slat (#7) to the middle of the bed frame, then align slats (#6) to the side rails (#5) and holes of the center slat (#7). Secure by using screws (#F). Prepare 10 bolts assembly by inserting lock washer (#H), then flat washer (#I) onto bolts (#G). Align side rail top panel (#9) to the holes of the side rails (#5), then secure by using bolts (#G).

This manual is also suitable for:

Cm7592ekCm7592ckCm7592exck
