LindabFasadium
Service & Maintenance
© 2022.09 Lindab Ventilation. All forms of reproduction without written permission are forbidden.
is the registered trademark of Lindab AB.
Lindab's products, systems, product and product group designations are protected by intellectual property rights (IPR).
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Lindab Fasadium
Summary of Contents for Lindab Fasadium
- Page 1 | f o r a be t t e r c l i m at e LindabFasadium Service & Maintenance © 2022.09 Lindab Ventilation. All forms of reproduction without written permission are forbidden. is the registered trademark of Lindab AB. Lindab's products, systems, product and product group designations are protected by intellectual property rights (IPR).
-
Page 2: Installation

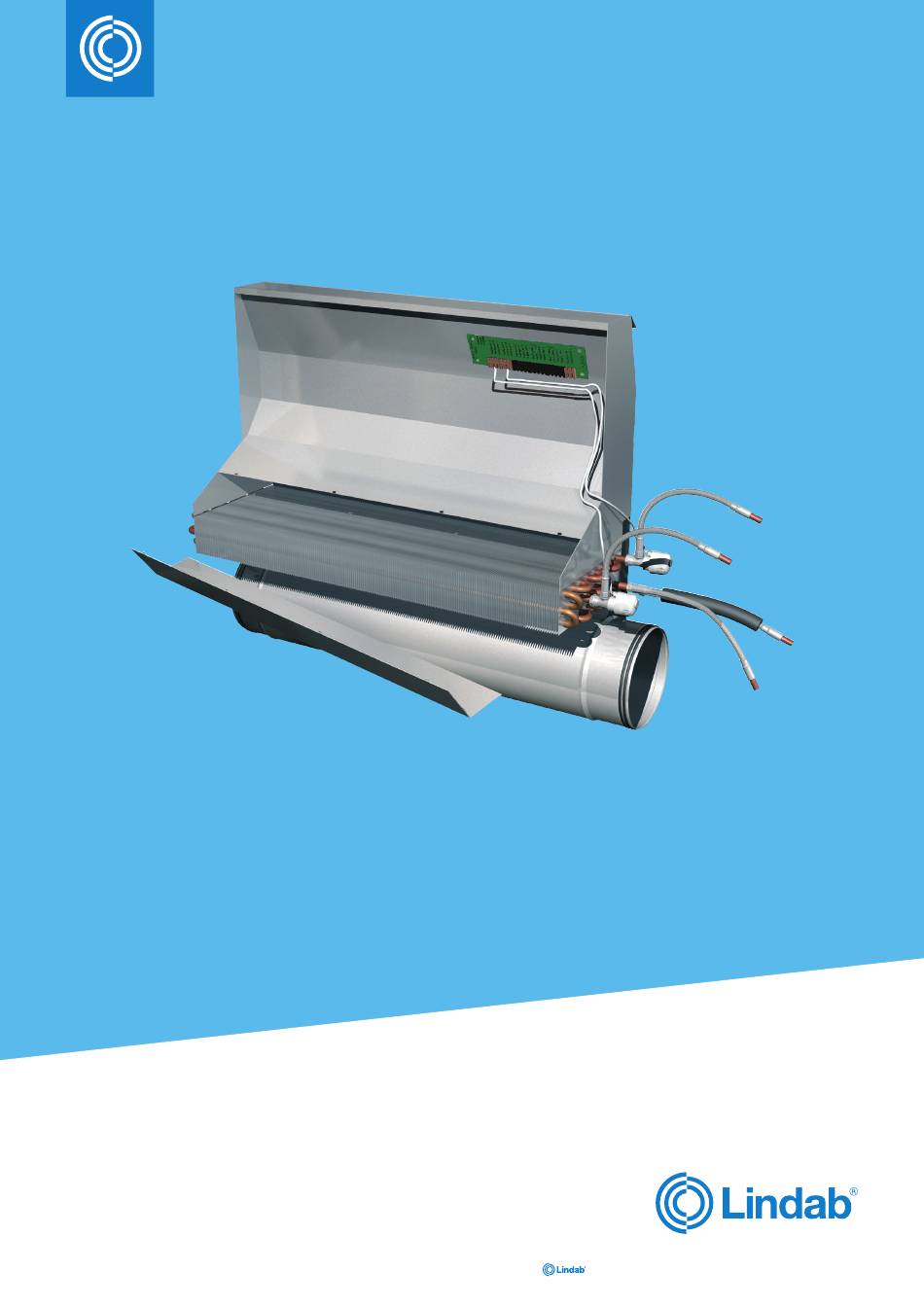

Lindab’s facade system Fasadium is an efficient system designed for ventilation, cooling and heating from the facade. Typical environments where Fasadium is used include, for example, schools, hospitals and offices. The Fasadium unit is placed at the building façade, preferably under a window sill. - Page 3 Notice! The connection pipes are internally soft-welded, therefore it is not allowed to solder the beam to the pipes. For other than Lindab fittings and valves, please consult the installation guide for the specific fitting for further details on proper installation.
- Page 4 Please refer to the suppliers manual. = 70 mm (to ensure you can open the couplings again). Lindab flexible hoses are available with straight end (male) for direct connection to Lindab valves also. Lindab reserves the right to make changes without prior notice...
- Page 5 The static nozzle pressure is the air pressure available at the nozzles. 2.2.1 Measure the static nozzle pressure. – To measure the air pressure, a manometer, analog or digital (such as the Lindab PC410) will be needed. – Insert the measuring tube into any of the nozzles.
- Page 6 Alternatively, read off the needed number of nozzles in the diagram below. Pressure Number open Nozzles [Pa] 40 45 50 55 60 65 45 50 90 100 Air flow [l/s] Lindab reserves the right to make changes without prior notice 2022-09-30...
-
Page 7: Maintenance
Calculate the needed number of nozzles to be plugged, in order to reach the desired airflow at the available air pressure, as see the diagram above. – Plug or unplug nozzles to reach the desired air flow. Using the Lindab Fasa- dium plug-tool. –... - Page 8 This means the maximal working pressure for the products at a water temperature of 20°C must not exceed 10 bar. 4.4 Water quality Lindab recommend water treatment and quality to be according to VDI 2035-2. – The water preparation and maintenance for the chilled beam water circuit should be handled by a specialist.
- Page 9 If the water contains any additive inhibitor this must be appropriate to use with copper and solder. 4.5 Capacity test – Lindabs active chilled beams are Eurovent-certified and tested according to EN-15116. Lindab reserves the right to make changes without prior notice 2022-09-30...
