- Page 1 AOVX VX350 Quick Start Trailer Tracker V1.1 www.aovx.com...
-
Page 2: Table Of Contents
2.1 How to insert SIM card and power supply ........5 2.2 How to connect to computer ............6 2.3 How to install USB driver ..............6 2.4 Local configuration ................7 3 LED light indications ................9 Safety Information ..................10 www.aovx.com... -
Page 3: Introduction

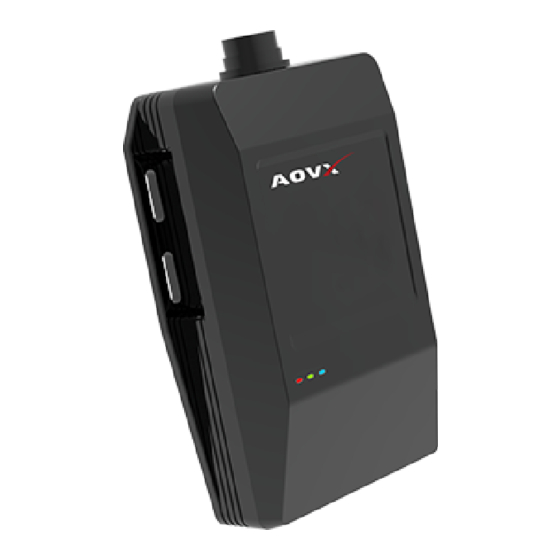

1 Introduction 1.1 Device overview Figure_1 Overview of VX350 NOTE: Please use the USB cable provided by AOVX. www.aovx.com... -
Page 4: Wiring Sequence
1.2 Wiring sequence Table 1 VM350/VL350 COLOR SIGNAL Black Orange Yellow Relay Brown DI1/AI1 White Green VOUT(5V) Blue Solar+ Grey Solar- Figure_2 9 wires connector www.aovx.com... -
Page 5: Set Up Your Device
If it is tested in the laboratory or office, ACC shall be powered, such as it can connect circuit ACC and VCC before connecting to DC power supply. NOTE: Please note that device will automatically enter sleep after one minute if ACC is not powered . Figure_4 Insert SIM card and connect battery www.aovx.com... -
Page 6: How To Connect To Computer
2 Find CONFIG USB port, then connect the device to computer via USB 4 You are now ready to use the device on your computer. data to serial port cable. VX350 COM1 Figure_5 Connect device via cable 2.3 How to install USB driver Figure_6 Check COM port 1 Please download the USB-to-Serial cable driver here. -
Page 7: Local Configuration
2 Make sure you click set after every configuration.Most important configurator section is Quick Start – where all your server and network can be configured.More details about V series configuration can be Figure_7 Config tool window found in VX350 User Manual. www.aovx.com... - Page 8 24V vehicles) GPIOVALUE=<channel>,<value> configure GPIO VALUE Crash level:Report when crash level over 460 by default. More details about SMS commands can be found in AOVX AT Timezone:UTC+8 by default. commands. GNSS Galaxy: GPS+BD by default. Default configuration settings Report Interval Run mode:Report every 25 seconds in run mode by default.
-
Page 9: Led Light Indications
No power or in sleep mode No power or in sleep mode Network LED indication Flash Table 4 Network LED Searching GPS COLOR STATE MEANING Green Linking server succeeded No power or in sleep mode Flash Searching for network or linking servers www.aovx.com... -
Page 10: Safety Information
VX350 location on your vehicle. In case you are not sure about proper connection, please consult qualified personnel. This message contains information on how to operate VX350 safely. By following these requirements and recommendations, you will avoid The programming must be performed using a PC with dangerous situations.
