PSBBCB1ADJ
PSBBCB2ADJ

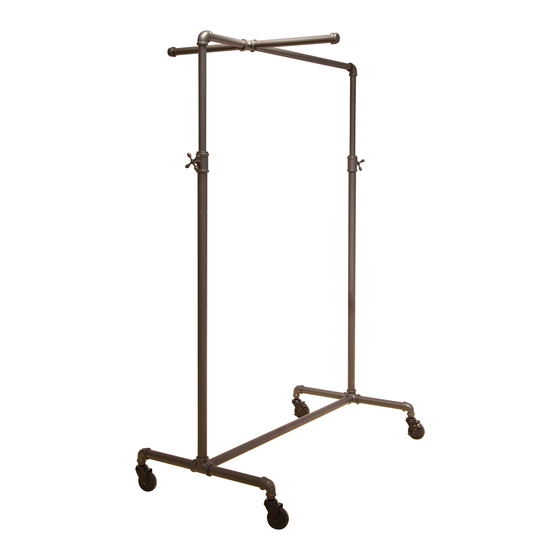

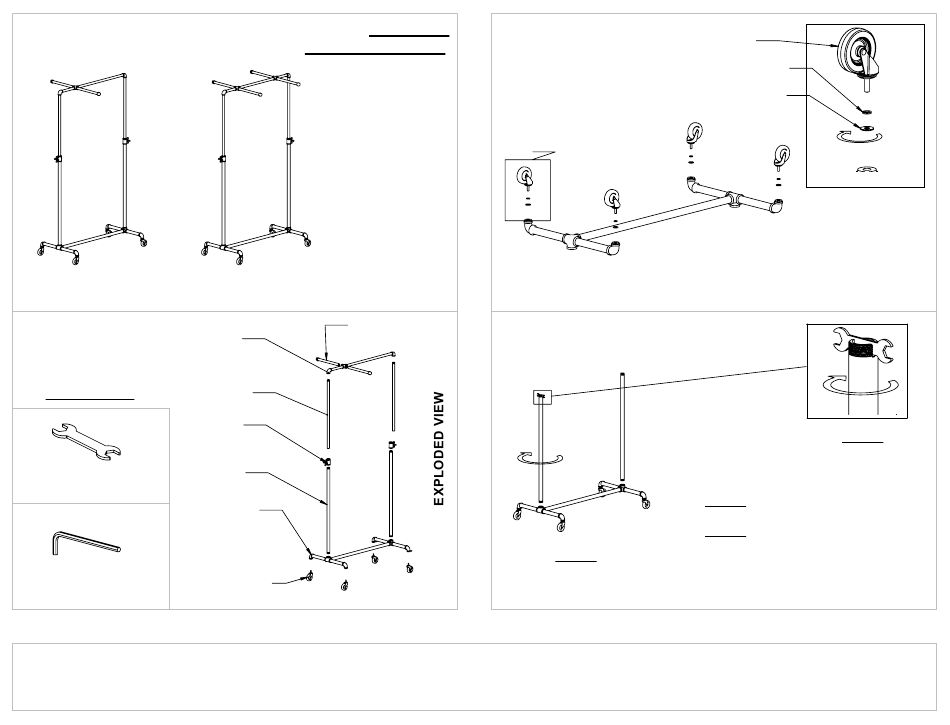

ASSEMBLED VIEW
ASSEMBLED VIEW
HANGBAR
QTY. 1
TOP UPRIGHT
QTY. 2
TOOLS INCLUDED
ADJUSTABLE
CONNECTOR
QTY. 2
BOTTOM
UPRIGHT
QTY. 2
WRENCH
BASE
QTY. 1
CASTER (WITH
FLAT WASHER
AND LOCK
WASHER)
ALLEN KEY
QTY. 4 SETS
PSBBCB1ADJ, PSBBCB2ADJ
ASSEMBLY
INSTRUCTIONS FOR:
PSBBCB1ADJ,
PSBBCB2ADJ
FACEOUT QUANTITY
VARIES WITH ITEM
1
A
SCREW IN THE CASTERS TO THE BASE AS SHOWN USING PROVIDED WRENCH.
2
STEP 2A
CASTER
LOCK WASHER
FLAT WASHER
STEP 2B
STEP 2A
BY HAND, SCREW IN BOTTOM UPRIGHTS.
STEP 2B
TO FULLY TIGHTEN UPRIGHT, PLACE
INCLUDED WRENCH INTO PIPE SLOTS AS
SHOWN. TIGHTEN FULLY
SHEET 1 OF 3
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Econoco PSBBCB1ADJ
Summary of Contents for Econoco PSBBCB1ADJ
- Page 1 BY HAND, SCREW IN BOTTOM UPRIGHTS. STEP 2B TO FULLY TIGHTEN UPRIGHT, PLACE CASTER (WITH INCLUDED WRENCH INTO PIPE SLOTS AS FLAT WASHER STEP 2A SHOWN. TIGHTEN FULLY AND LOCK WASHER) ALLEN KEY QTY. 4 SETS PSBBCB1ADJ, PSBBCB2ADJ SHEET 1 OF 3...
- Page 2 LOOSEN HAND WHEEL ON BOTH SIDES • DROP HANGBAR INTO DESIRED HEIGHT • LOCK IN POSITION BY TIGHTENING THE TIGHTEN SET SCREW USING HAND WHEEL ON BOTH SIDES THE ALLEN KEY TO LOCK ADJUSTABLE CONNECTOR IN PLACE. PSBBCB1ADJ, PSBBCB2ADJ SHEET 2 OF 3...
- Page 3 COMPLETE ASSEMBLY BY SCREWING IN FACEOUTS PSBBCB1ADJ PSBBCB2ADJ FACEOUT FACEOUT PSBBCB1ADJ, PSBBCB2ADJ SHEET 3 OF 3...
