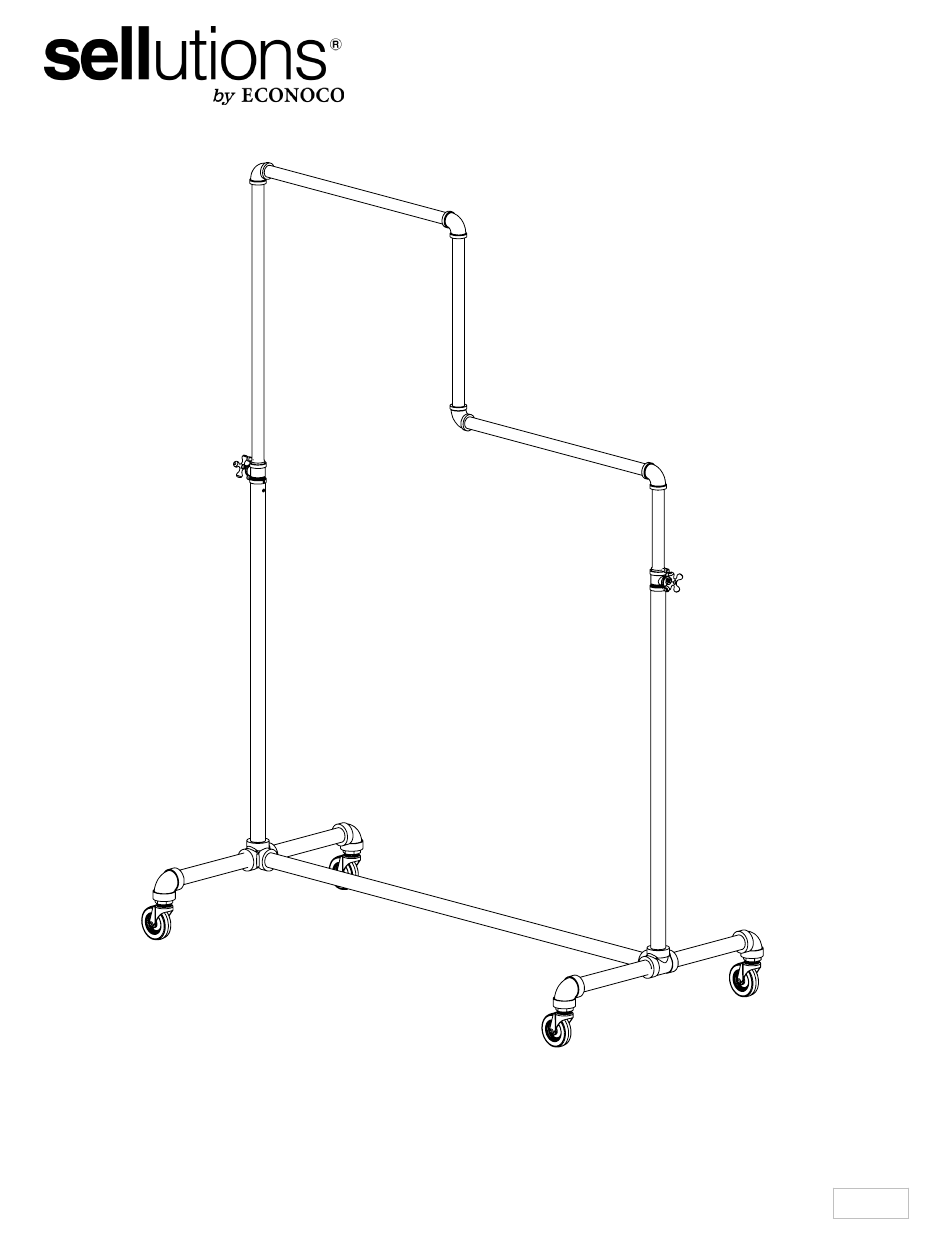

STEP DOWN BALLET BAR
ITEM# PSBBDTADJ
PAGE 1

Advertisement

loading
Need help?

Need help?

Do you have a question about the sellutions PSBBDTADJ and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Econoco sellutions PSBBDTADJ

Summary of Contents for Econoco sellutions PSBBDTADJ

  • Page 1 STEP DOWN BALLET BAR ITEM# PSBBDTADJ PAGE 1...
  • Page 2 STEP DOWN HANGBAR QTY. 1 TOP UPRIGHT LONG QTY. 1 TOP UPRIGHT SHORT QTY. 1 SET SCREW QTY. 2 ADJUSTABLE CONNECTOR QTY. 2 BOTTOM UPRIGHT QTY. 2 FOOT QTY. 2 CROSS BAR QTY. 1 CASTER QTY. 4 SMALL WRENCH QTY. 1 ALLEN KEY QTY.
  • Page 3 BY HAND, SCREW IN THE CROSSBAR TO FOOT AS SHOWN. TIGHTEN FULLY. BY HAND, SCREW THE FOOT TO CROSSBAR AS SHOWN. TIGHTEN SUFFICIENTLY & MAKE SURE IT ALIGNS WITH THE OTHER FOOT AS SHOWN BELOW PAGE 3...
  • Page 4 SCREW IN THE CASTERS AS SHOWN USING PROVIDED WRENCH PAGE 4...
  • Page 5 BY HAND, SCREW IN BOTTOM UPRIGHTS AS SHOWN PAGE 5...

  • Page 6: Set Screw

    BY HAND, SCREW ADJUSTABLE CONNECTOR TO BOTTOM UPRIGHTS SUFFICIENTLY & THEN ADJUST SO THAT IT ALIGNS AS SHOWN BELOW TIGHTEN SET SCREW USING HEX WRENCH TO LOCK ADJUSTABLE CONNECTOR IN PLACE. SET SCREW FACING OUT FACING OUT PAGE 6...
  • Page 7 BY HAND, SCREW TOP UPRIGHTS TO HANGBAR AS SHOWN PAGE 7...
  • Page 8 (UNTIGHTEN HAND WHEEL) DROP HANGBAR FROM STEP 7 AS SHOWN AT DESIRED HEIGHT & LOCK IN POSITION BY TIGHTENING THE HAND WHEEL PAGE 8...
