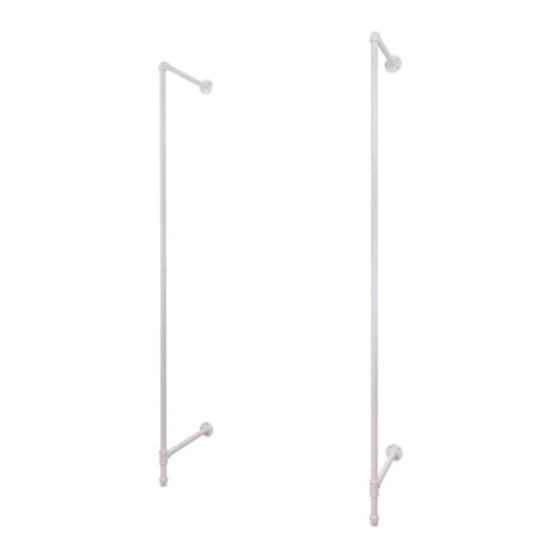

PIPE OUTRIGGER
ITEM# PSOR
PIPE FLANGE
4X
SHORT PIPE
4X
TOP
UPRIGHT
2X
BOTTOM
UPRIGHT
2X
LOOSE 3-WAY
FITTING
2X
LEVELER
2X
PARTS LIST
INCLUDED HARDWARE
8X
1/4"-20 x 27mm LONG
SOCKET SET SCREW
INCLUDED TOOLS
NOT INCLUDED TOOLS
BUBBLE LEVEL
STEP LADDER
2X
16X
1/4"-20 x 8mm LONG
#10 x 19mm LONG
SOCKET SET SCREW
WOOD SCREW
(FOR WALL MOUNTING
WITH APPROPRIATE
STRUCTURE)
ALLEN KEY
TAPE MEASURE
#10 WALL ANCHORS
(STYLE DEPENDENT ON
WALL STRUCTURE)
POWER DRILL
PSOR
SHEET 1 OF 3
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Econoco PSOR
Summary of Contents for Econoco PSOR
- Page 1 PIPE OUTRIGGER INCLUDED HARDWARE ITEM# PSOR PIPE FLANGE 1/4"-20 x 8mm LONG 1/4"-20 x 27mm LONG #10 x 19mm LONG SHORT PIPE SOCKET SET SCREW WOOD SCREW SOCKET SET SCREW (FOR WALL MOUNTING WITH APPROPRIATE STRUCTURE) INCLUDED TOOLS UPRIGHT ALLEN KEY...
- Page 2 FLOOR AND JOIN TOGETHER AS SHOWN. LOOSE 3-WAY - SECURE WITH 4 LONG SET SCREWS AS FITTING SHOWN AND TIGHTEN WITH ALLEN KEY. NOTE: THE SCREWS SHOULD BE TIGHTENED WHILE A HELPER HOLDS THE TWO HALVES TOGETHER TIGHTLY. LEVELER PSOR SHEET 2 OF 3...
- Page 3 PIPE FLANGE SHOULD BE ORIENTED AS USE A TAPE MEASURE TO CHECK THE ON CENTER DISTANCE. SHOWN ABOVE. 90.0° - BE SURE THE LEVELER IS FIRMLY CONTACTING THE FLOOR. IF NOT, UNTHREAD UNTIL IT IS. PSOR SHEET 3 OF 3...
