Related Manuals for Waykar JD025C-120
Summary of Contents for Waykar JD025C-120
- Page 1 Home Dehumidifier Please read this manual carefully before using the product JD025C-120 USER MANUAL www. kar.com...
- Page 3 FOR CUSTOMERS Thank you for purchasing our dehumidifier. Waykar has been committed to developing powerful and easy-to-use products to bring more convenience to your life. We highly recommend you to keep this user manual for future reference in case of unexpected problems.
-
Page 5: Table Of Contents
LE OF CONTENTS FEATURES .................01 SAFETY PRECAUTIONS............02 SPECIFICATIONS ..............03 PRODUCT DRAWINGS ............04 OPERATION INSTRUCTIONS ..........05 DRAINAGE ................07 MAINTENANCE & CLEANING ..........09 TROUBLESHOOTING............11 SPECIAL NOTES..............12 WARRANTY & CONTACT US ..........13... -
Page 6: Features
FEATURES FEATURES Powerful Moisture Removal With the cutting-edge technology, the dehumidifier powerfully removes moisture from the air to reduce the room humidity level and keep the indoor air dry and comfortable. Lightweight Portable Design The dehumidifier is compact and lightweight. The casters at the bottom make it easy to move the machine from one room to another. -
Page 7: Safety Precautions
SAFETY PRECAUTIONS IMPORTANT NOTICE FOR FIRST USE: For your safety, please read the manual carefully and keep it for future reference. Please install and use this product according to the instructions in the manual. ● Please unplug the power cord before cleaning or storing the machine . ●... -
Page 8: Specifications
SPECIFICATIONS MODEL JD025C-120 POWER SOURCE 115V~ 60Hz TOTAL INPUT CURRENT 6.2A 35.63 PINTS (16.85 L/DAY) MOISTURE REMOVAL (65°F, 60%RH) MOISTURE REMOVAL (80°F, 60%RH) 49 PINTS (23.18 L/DAY) 90 PINTS (42.57 L/DAY) MOISTURE REMOVAL (86°F, 80%RH) MOISTURE REMOVAL (95°F, 90%RH) 120 PINTS (56.76 L/DAY) INPUT POWER (65°F, 60%RH) -
Page 9: Product Drawings
PRODUCT DRAWINGS Front Back 1. Control panel 2. Handle 3. Water tank 4. Power cord 5. Seal cover 6. Air outlet 7. Wind deflector 8. Air inlet grille 9. Outfall 10. Buckle 11. Caster - 0 4 -... -
Page 10: Operation Instructions
OPERATION INSTRUCTIONS Control Panel Humidity Level & Timer Display The indicator has 3 functions: 1. When the machine is powered on, it will indicate the current room humidity. 2. When you set the humidity, it will indicate the humidity that you have set. 3. - Page 11 OPERATION INSTRUCTIONS “ ” Fan Speed Setting: Press “ ” to switch the fan speed between low and high level. The corresponding fan speed light will turn on. “ ” Swing Setting: When the machine is operating, press “ ” to start or stop the swing of the air outlet blade.
-
Page 12: Drainage

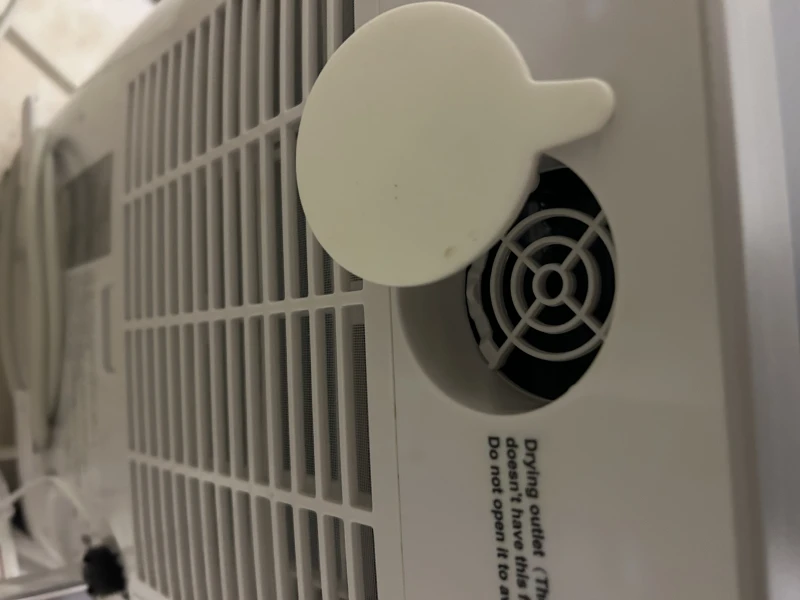

DRAINAGE MANUAL DRAINAGE Emptying the Water Tank When the water tank is full, the tank full indicator light “ ” will turn on, and the dehumidifier will stop automatically. The buzzer will beep 15 times to remind you to empty the water tank. 1. - Page 13 DRAINAGE CONTINUOUS DRAINAGE 1. Take out the drain hose connector from the water tank. 2. Unscrew the outlet cover on the back of the machine. 3. Install the drain hose connector and connect the drain hose. 4. The dehumidifier will continuous drain water when the drain hose is properly installed.
-
Page 14: Maintenance & Cleaning
MAINTENANCE & CLEANING Cleaning the Dehumidifier Cleaning the Body Wipe it with a soft damp cloth. Cleaning the Air Filter 1. Open the inlet grill and wash it with water. 2. Run a vacuum cleaner lightly over the surface of the air filter to remove dirt. If the air filter is exceptionally dirty, please wash it with warm water and a mild cleanser and dry thoroughly. - Page 15 MAINTENANCE & CLEANING Storing the Dehumidifier When the unit is not used for a long period of time or you want to store it, please notice the following steps: 1. Empty any water left in the tank. 2. Put the power supply cord away and wrap it around the hook on the back of the unit. 3.
-
Page 16: Troubleshooting
TROUBLESHOOTING The following list contains some abnormal conditions that are not faults caused by manufacturing process or material defects. Solutions Problems Possible Causes Is the power cord connected Plug the power cord into the properly? outlet. Is the tank full indicator The machine Empty the water tank and flashing? (The tank is full or... -
Page 17: Special Notes
SPECIAL NOTES Do not insert any thin rods or When using the machine, please When using the machine, hard items into the machine to please do not put it on a soft keep it away from any heating prevent malfunctions and or uneven ground to prevent furnaces, electric kettles and dangers. -
Page 18: Warranty & Contact Us
WARRANTY & CONTACT US Warranty Waykar offers a 12-month warranty to all of our products together with the original proof of purchase when a defect occured, including those newly purchased and unused, from aykar or through an authorized reseller, wholly or substantially, or as a result of faulty manufacturing parts, or workmanship during the Warranty Period. - Page 20 Waykar Waykar For FAQs and more information please visit: Waykar www.waykar.com Waykar (Scan the QR Code for Live Chat) We are expecting to see our products fulfill your life and hear your voice. Your satisfaction means a lot to us.
