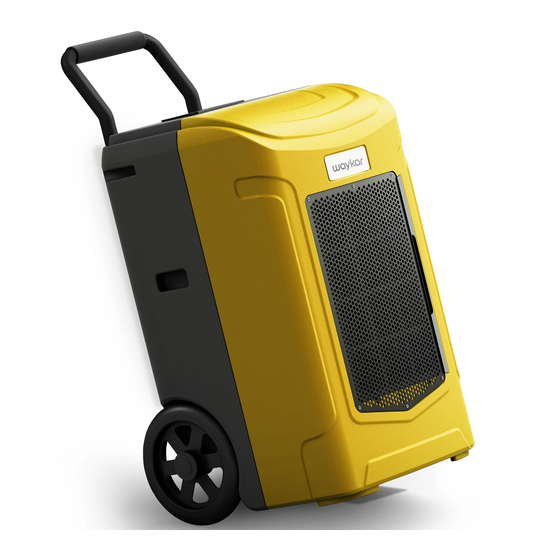

- Page 1 Commercial Dehumidifier Please read the manual carefully before using the unit PDGT701BA USER MANUAL www.waykar.com...
- Page 3 Thank you for purchasing our dehumidifier. Waykar wishes our products and services can bring convenience to your work and life. We highly recommend you to keep the manual for reference, in case you encounter unexpected issues using this unit. Please read the manual carefully to ensure proper use of the dehumidifier.
-
Page 4: Common Faults & Solutions
& Common Faults & Solutions Warranty & Contact Information The graphics and functions provided in this manual may not be the same as the actual product. Please always refer to the actual product. The model of the machine on the manual is for reference only. Please operate the machine based on the actual product. - Page 5 Safety Notes: For your safety, please read the manual carefully and keep the manual before you use the product for reference. Please use this product according to the installation and operation instructions of this manual. Install the dehumidifier on flat surface to minimize vibration and/or noise. Inspect the power cord before use.
- Page 6 1.Handle Bar 2.Handle 3.Wheels 4.Control Panel 5.Air Inlet 6.Air Filter 1.Air Outlet 2.Pump Drain Outlet 3.Cord Winder 4.Power Cord Port 5.Pump Reservoir 6.Emergency Drain Outlet...
- Page 7 1.Understand the Control Panel Humidity Reading Defrost Indicator Timer Indicator DE FR OS T TI M ER Pump Working Running Indicator P UM P R UN NI N G Indicator P U MP DOW N T IM ER P OW E R Pump Down Timer Power...
- Page 8 OPERATION INSTRUCTION The humidity level can be set within a range of 10%RH to 98%RH in 1% increments. When it starts work, it will first automatically detect and show the room's humidity. Press the "UP" button to change the humidity selection in 1% increments.Press "DOWN"...
- Page 9 When the frost builds up on the evaporator coils, the compressor will cycle off and the fan will continue to run until the frost disappears. If the dehumidifier shuts off unexpectedly due to power being cut, the dehu- midifier will restart with the previous function setting automatically when the power resumes.
- Page 10 When the machine is defrosting, the defrost indicator will be flashing, DEFROST defrosting end the light goes out. When the pump is draining, PUMP Indicator will be flashing. PUMP When set or check the timer, the timer indicator will be flashing. TIMER When the timer is setup properly the indicator will light up, light goes...
- Page 11 4.Error & Protection Code Number Error Code Name of The Fault Note Humidity Sensor Failure The compressor and the fan keep running. Unplug the Defrost Temperature dehumidifier and then re-plug, Sensor Failure the dehumidifier may restart again. Temperature Sensor failure 1.Turn off the dehumidifier and unplug it;...
- Page 12 When one of above malfunctions occurs, the buzzer will alarm for a few seconds, press any key during the alarm to release the alarm sound. support@waykar.com...
-
Page 13: Installing The Handle
5.Installing the Handle 1. Take out 4 screws and a handle from the accessories, and put the handle into the groove at the back of the humidifier, making the screws correspond to the screw holes. 2. Tighten all the four screws on the hands respectively, the installation is finished. -
Page 14: Continuous Drainage
6.Continuous Drainage This dehumidifier has an internal pump that will automatically drain the condensate out via the long drain hose. Before turning on the dehumidifier, make sure the hose has been connected to the drain outlet properly. 1. Uncoil the entire hose; 2. - Page 15 7.Manual Drainage In power-disconnected status, tilt the dehumidifier as the figure shown, pull out the rubber plug and put the dehumifier straight to drain the sewage in the water tank. Rubber plug Inclination≥45°...
- Page 16 Turn the dehumidifier off and remove the plug from the wall outlet before clean- A-Cleaning the Dehumidifier Clean the dehumidifier housing with a soft damp cloth. Do not submerge or place water on the dehumidifier or control panel. Water may damage the electronic components of the dehumidifier.
- Page 17 If all the troubleshooting steps have been exhausted and isse is stilling occuring, feel free to get in touch with Waykar Customer Service to get further assistance. Lack of electrical power Check the power supply...
- Page 18 Clean the pump reservoir dirty If the dehumidifier is still not working properly as expected and the troubleshooting steps or solutions above may not resolve the issues, please unplug the power and shut down the dehumidifier, then contact Waykar customer service via support@waykar.com.
- Page 19 Please clean the filter every two weeks (do not use hot water above 104℉， gasoline or toluene).
- Page 20 MODEL NO. PDDT701BA ～ P0WER SOURCE 120V 60Hz 1150W RATED POWER (95°F, 90%RH) 10.3A RATED CURRENT (95°F, 90%RH) 50 Pints/Day MOISTURE REMOVAL (65°F, 60%RH) MOISTURE REMOVAL (80℉, 60%RH) 90 Pints/Day 150 Pints/Day MOISTURE REMOVAL (86℉, 80%RH) 180 Pints/Day MOISTURE REMOVAL (95℉, 90%RH) INPUT POWER (65°F, 60%RH) 610W 5.5A...
-
Page 21: Customer Support
Waykar offers a 12-month warranty to all of our products together with the original proof of purchase when a defect occured, including those newly purchased and unused, from Waykar or through an authorized reseller, wholly or substantially, or as a result of faulty manufacturing parts, or workmanship during the Warranty Period. - Page 22 @Waykar @Waykar For FAQs and more information please visit: @Waykar w w w.w a y ka r.c o m @Waykar （Scan the QR Code for Live Chat） We are expecting to see our products fulfill your life and hear your voice.
