Summary of Contents for Waykar YDZ-120

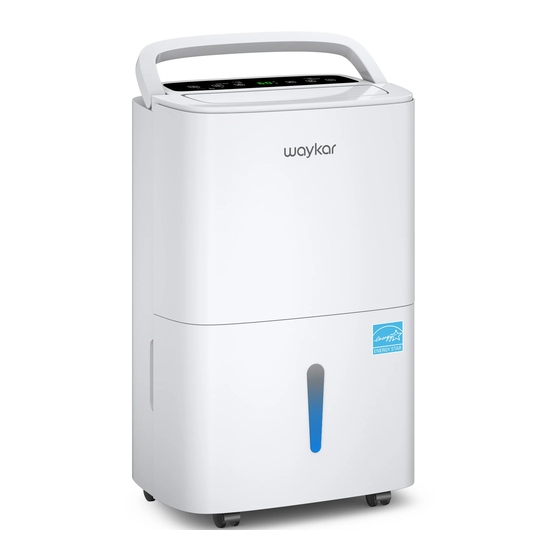

- Page 1 Home Dehumidifier Please read this manual carefully before using the product YDZ-120 USER MANUAL www.waykar.com...
- Page 3 Waykar healthy and comfortable environment for you and your family. REQUESTING CUSTOMER SERVICE If there are any problems of the product, please contact Waykar Customer Service at support@waykar.com with your Purchase Order ID. We’ll help you...
- Page 4 BEFORE FIRST USE: To protect the product from any internal damages, please keep the product in the upright position throughout its journey. Please take out the product and leave it standing in the upright position for before plugging it in. 24 HOURS...
-
Page 5: Table Of Contents
TABLE OF CONTENTS SAFETY PRECAUTIONS............01 IMPORTANT SAFETY INSTRUCTIONS ......02 PRODUCT DRAWINGS ............03 OPERATION INSTRUCTIONS ...........04 DRAINAGE ................06 MAINTENANCE & CLEANING ..........09 TROUBLESHOOTING ............10 Q&A....................12 SPECIFICATIONS ..............13 SPECIAL NOTES..............14 WARRANTY & CONTACT US ..........15... -
Page 6: Safety Precautions
SAFETY PRECAUTIONS IMPORTANT NOTICE FOR FIRST USE: For your safety, please read the following contents carefully before using this dehumidifier. Requirements ● Install this dehumidifier in smooth place to reduce vibration and noise. ● Do not place this dehumidifier in water or other liquids. ●... -
Page 7: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS Prohibition ● Please do not place this dehumidifier close to heating devices (flame or heaters, etc.). ● Please do not turn on or turn off this dehumidifier by plugging in or pulling out the plug. ● Do not use insecticide spray or other flammable substances in the vicinity of this dehumidifier. -
Page 8: Product Drawings
PRODUCT DRAWINGS Wind blade Control panel Front cover Water tank cover Water tank handle Back cover Water tank (Front side) Handel Filter frame Drain Wrapping post Wheel (Back side) - 03 -... -
Page 9: Operation Instructions
OPERATION INSTRUCTIONS Control Panel Timer 24h timer setup, press this key to set on/off time of the dehumidifier, and the setting range is 1-24h. If you need to cancel timer setup, press twice continuously after confirmation of setting time. Dry key in dehumidifier Press this key to start drying procedure in the dehumidifier, this can prevent mold inside the dehumidifier due to damp. - Page 10 OPERATION INSTRUCTIONS Operating methods Timer off ● When the dehumidifier is running, press the [Timer key] to adjust time from 1h to 24h, and press the key once to increase the setting time by 1h. When the setting time exceeds 24h, the figure will be returned to 1 to start cycle.The Timer key can also be long pressed, and the time will be increased and changed circularly.
-
Page 11: Drainage
DRAINAGE How to stop: 1. Press the key again to cancel drying in dehumidifier, and recover to the running state before start of drying. 2. Press the [Power key] to stop drying in dehumidifier and recover to the standby state. Air-swing function ●... - Page 12 DRAINAGE Drainage method ● If you do not want to drain water in the water tank frequently, you can connect a drainage pipe: a. Connect a drainage pipe ( with outer diameter 13mm on the back of this dehumidifier. b. Find a garden hose with standard thread, with 1 in (1.0625 in or 26.98mm) outer diameter and 11.5TPI pitch.
- Page 13 DRAINAGE Note : ● The drainage pipe shall not be longer 2.36in, and the end of drainage pipe should be lower than the outlet for at least 3.94in to keep the pipe smooth, otherwise there will be leakage. - 08 -...
-
Page 14: Maintenance & Cleaning
MAINTENANCE & CLEANING Maintenance Precautions: ● Please disconnect power supply before maintenance or repair to prevent electric shock. ● If the dehumidifier is not used for long time, please disconnect power supply. ● Please do not clean the dehumidifier body with chemical solvents such as alcohol, gasoline and benzene, etc. -
Page 15: Troubleshooting
TROUBLESHOOTING If the following problems occur to the dehumidifier, the following solutions can be adopted. Symptoms Possible Causes Solutions Insert power plug into Does power plug fall ? socket. Is the water tank full of Drain water from the water ? (the water tank is The dehumidifier watertank, and then install full of water or is placed at... - Page 16 TROUBLESHOOTING Symptoms Possible Causes Solutions Connection of drainage Fasten drainage pipe. pipe becomes loose Water leaks Remove obstacles and Drainage system is straighten out water pipe. blocked It is a normal phenomenon, The ambient temperature and the dehumidifier has Frosting occurs is low, and it is in the state the automatic defrosting waiting for defrost.
-
Page 17: Q&A
Q&A Q: Why is less water stored in water tank of the dehumidifier in winter? ● In winter temperature is low and air is dry. In comparison with summer, the dehumidification ability of the dehumidifier decreases remarkably, it is not considered defective. -
Page 18: Specifications
SPECIFICATIONS YDZ-120 MODEL POWER SOURCE 115V~ 60Hz MOISTURE REMOVAL (65 ℉, 60%RH) 30 PINTS (14.2 L/DAY) MOISTURE REMOVAL (80 ℉, 60%RH) 50 PINTS (23.6 L/DAY) MOISTURE REMOVAL (86 ℉, 80%RH) 80 PINTS (37.8 L/DAY) HIGHEST MOISTURE REMOVAL 120 PINTS (56.8 L/DAY) INPUT POWER (65°F, 60%RH)
