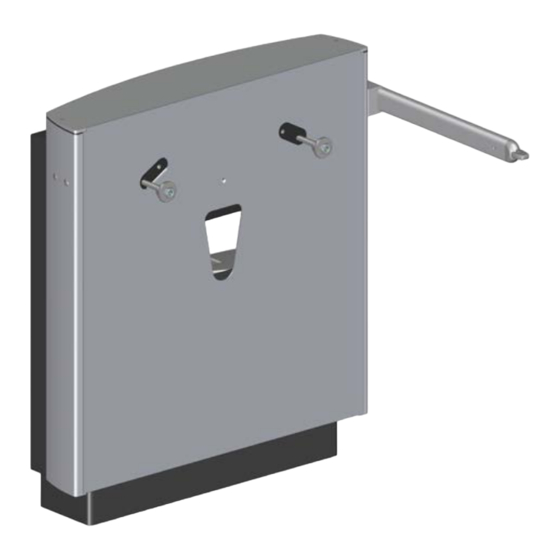

Wash basin lifter
Hide thumbs Also See for SELECT R4950:

Advertisement

Quick Links

SELECT wash basin lifter – Operation and maintenance manual
SELECT vaskeløfter – Brugs- og vedligeholdelsesvejledning
SELECT Waschtisch-Lifter – Gebrauchs- und Pflegeanleitung
SELECT support de lavabo – Manuel d'utilisation et d'entretien
SELECT muurframe voor wastafel – Gebruiks- en onderhoudshandleiding nl
SELECT upphängning till tvättställ – Bruks- och underhållsanvisning
SELECT oppheng til servant – Bruks- og vedlikeholdsveiledning
SELECT soporte de lavabo - Instrucciones de uso y mantenimiento
SELECT 洗面盆支架 - 操作和维护手册
‫ رافعة حوض الغسيل – دليل التشغيل والصيانة‬SELECT
R4950 - R4951
R4952 - R4953
en
dk
de
fr
sv
no
es
中文
‫العربية‬

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SELECT R4950 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Pressalit SELECT R4950

  • Page 1 R4950 - R4951 R4952 - R4953 SELECT wash basin lifter – Operation and maintenance manual SELECT vaskeløfter – Brugs- og vedligeholdelsesvejledning SELECT Waschtisch-Lifter – Gebrauchs- und Pflegeanleitung SELECT support de lavabo – Manuel d’utilisation et d’entretien SELECT muurframe voor wastafel – Gebruiks- en onderhoudshandleiding nl SELECT upphängning till tvättställ –...
  • Page 2 English . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Dansk .
  • Page 3 R4951 R4950 R4953 R4952...
  • Page 4 R2057 R2056 R2052 R2053 R2020 R2021...
  • Page 5 3 9 0 1 7 0 6 6 6 1 7 0 6 6 6 m i n . 7 m i n . 7 R4951 R4950 3 9 0 1 7 0 6 6 6 1 7 0 6 6 6 m i n .
  • Page 6 inch 1 5 . 6 . 7 2 6 . 2 5 6 . 7 2 6 . 2 5 9 . 5 m i n . 2 9 . 5 m i n . 2 R4950 R4951 1 5 . 6 .
  • Page 7: Table Of Contents

    Content Mounting instruction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Symbols used in this manual .
  • Page 8: Symbols Used In This Manual

    Symbols used in this manual The following symbols are used in this manual as well as the associated documentation supplied with the product . WARNING WARNING indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury . CAUTION CAUTION indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury .
  • Page 9: General Safety

    • The information in this manual is based on correct fitting of the product in accordance with our Assembly instruction . • Pressalit cannot be held liable if the product is used in any way which differs from that described in the guide .
  • Page 10: Product Label

    ③ ⑳ xxx kg xxx lbs YY-MM-DD ④ ⑤ Pressalit A/S, Pressalitvej 1 DK-8680 Ry +45 8788 8777, www.pressalit.com ⑫ ⑬ ⑭ ⑮ ⑯ ⑰ Article number Production date Maximum user weight...
  • Page 11 • Regulation (EU) 2017/745 (5 April 2017) on medical devices . • Council Directive 2006/42/EC (of 17 May 2006) on machinery . • Council Directive 2011/65/EC (of 8 June 2011) on RoHS . A declaration of conformity can be found at www .pressalit .com Electric Current...
  • Page 12: Intended Use

    Product label placement Intended use This product is intended for optimum ergonomics at a wash basin, for both seated and standing users with disabilities . Intended operator profile The product can be used by all - adults, children, young and old . Operating environment For indoor use in a wet environment, such as a bathroom or wash room .
  • Page 13: Operating Instructions

    Operating instructions The wash basin lifter can be adjusted 300 mm up and down . Max load is 150 kg . Take care to avoid injury to hands when in the vicinity of moving mechanical parts . R4950 and R4952 The height is adjusted by the lever control .
  • Page 14: Safety Stop Function

    Safety stop function The wash basin lifters R4952 and R4953 are equipped with a safety stop function . If the wash basin comes in contact with an object when it is being lowered, the motion stops immediately . If an object comes is in contact with the underside of the wash basin when it is stationary, the safety function is activated and the wash basin is lifted .
  • Page 15: Maintenance

    . The product is to be cleaned with hot water or a mild soapy cleaning agent . A list of suitable cleaning agents tested by Pressalit can be found on www .pressalit .com .
  • Page 16: Service Inspection

    Service inspection Take the wash basin to its highest position . Disconnect mains before removing the covers. Remove the lower front cover . You do not need ① any tools, as the cover has a click lock . Check all electrical connections for the control box ②...
  • Page 17: Technical Data

    Technical data Max load 150 kg Materials Powder-laquered stainless steel Aluminium Plastics Dimensions 666 mm x 750 mm x 170 mm (width x height x depth) Weight R4950, R4952: 28 .5 kg R4951, R4953: 28 kg IP class IPX6 Power specifications Max consumption 75 W Voltage...
  • Page 18: Trouble-Shooting

    . ”Maintenance” . Contact Pressalit Care or your dealer if the problem cannot be remedied . Do not attempt to repair the product yourself, as this will invalidate the guarantee .
  • Page 19: Disposal And Recycling

    Disposal and recycling The unit contains reusable materials . There are no known hazards or risks associated with disposal of the product . All components can be discarded after having been cleaned and disinfected . When disposing of the product, we recommend that it be disassembled and broken down into different waste groups for recycling or combustion .
