JRC Navtex NCR-333 Operation Card

The following figure is message list 1 screen. Other screens display the same marks.

Station selection mode

/
: Indicates the selection method of a coast station is
the "auto mode."
: Indicates the selection method of a coast station is
the "manual mode."

SORT

Displays the sorting order of the message list.

Display title

The title of screen that is currently open is displayed.

Save message

This message is saved.

Unread message

Unread message is stored.

Check mark

The check marks are putted when saving
(printing or outputting) each message at the
same time.
Arrow mark
/
'▲' '▼'mark is displayed on the top/ bottom line
when the display screen is able to scroll upward
/downward.

Status bar

Displays alarm, received message
type and other status

Receiving message

The channel while receiving a message is indicated
: 518kHz : 490kHz : 4209.5kHz

NAVTEX Alarm

NAVTEX alarm was detected.

SAR message

When a search and rescue (SAR) message is received, it is
displayed with the buzzer sounds.

Alarm message

When an alarm message (MSG TYP: A,B,L) is received, it is
displayed with the buzzer sounds.
Unread message
At least one unread message exists.
GPS position data
External GPS position data is inputted.
If E,M,N, or S is displayed next to " ", it indicates that
the external GPS position information is invalid.
7ZPJD0306B
Ⅴ Ⅲ NAVAREA No.
The NAVAREA number is displayed when
position data is inputted.
MSG LIST SORT:MSG TYPE
ID FREQ LINES DATE TIME
IA01 4209.5 15 04/06/09 12:34
STATION : YOKOHAMA
MSG TYPE: NAVIGATIONAL WARNINGS
KA04 518 10 04/06/09 10:34
STATION : KUSIRO
MSG TYPE: NAVIGATIONAL WARNINGS
IA07 490 20 04/06/09 09:34
STATION : YOKOHAMA
MSG TYPE: NAVIGATIONAL WARNINGS
KC10 490 12 04/06/09 05:34
STATION : KUSIRO
MSG TYPE: ICE REPORTS
KH13 518 5 04/06/09 05:34
STATION : KUSIRO
MSG TYPE: LORAN MESSAGE
KP16 518 9 04/06/09 01:34
STATION : KUSIRO
DATA:321/342
－ iv －
N C R - 3
N C R - 3

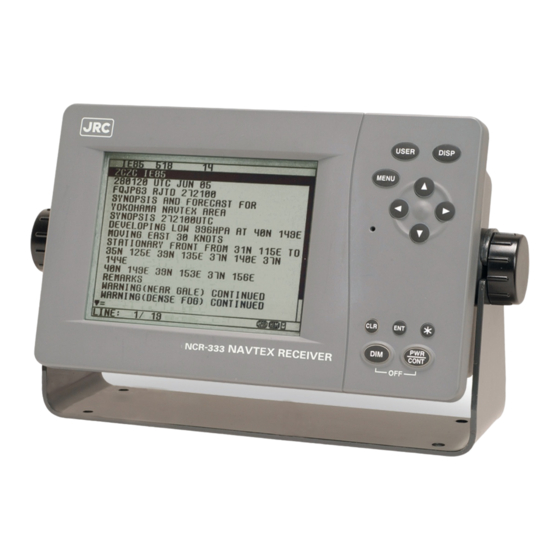

Message text screen : After equipment starts, the following screen appears.
ⅤⅢ
M E N U
U S E R
D IS P
CLR
ENT
*
D IM
P WR
CO N T
3 3 O p e r a t i o n C a r d
3 3 O p e r a t i o n C a r d
MENU

Explanation of keys

MENU key
Displays the "Main Menu".
USER key
Displays the screen assigned to this key.
DISP key
Changes the display screen.
Up, Down, Left, Right key
Moves the cursor, scrolls the display screen, and selects the item.
CLR key
Clears input errors and cancel operations.
Turns off the buzzer sound.
ENT key
Determines selection of an item and decides a setup.
＊ key
Displays the small window (the sub screen).
DIM key
Adjusts the back light brightness of the LCD.
PWR/CONT key
Turns the power ON. Adjusts the contrast of the LCD when power is ON.
USER DISP
CLR
ENT
*
PWR
DIM
CONT
－ i －
