- Page 1 Taurus Online User manual...
- Page 2 User manual – TAURUS ONLINE The company Exorigo-Upos has put all efforts so that the information included in this document be correct and reliable. However, the company Exorigo-Upos does not bear any liability for consequences arisen out of use of the information, as well as it reserves the right to make changes without prior informing the interested parties.
- Page 3 User manual – TAURUS ONLINE History Numer wersji Opis Data edycji: dokumentu: 1.0.5 2019-11-25 Update: 6.1, 6.2, 2.3, 3.1, 4.1,...
-
Page 4: Table Of Contents
User manual – TAURUS ONLINE TABLE OF CONTENT 1 General information ............................. 6 1.1 Terms of use ..............................6 1.2 Sealing the printer ............................7 1.3 Explanation of terms ............................. 8 1.4 Basic terms of operation of the printer ......................9 1.5 Daily fiscal report and periodical fiscal report .................... - Page 5 User manual – TAURUS ONLINE 6.1 Specifications of the applied paper ......................32 6.2 Printer’s parameters ........................... 32 6.3 Display’s parameters ........................... 34 7 Description of emergency situations ......................... 35 8 Drivers, software, instructions, certificates ....................... 38...
-
Page 6: General Information
The fiscal printer TAURUS ONLINE allows also to print VAT invoices and commercial non-fiscal documents. -
Page 7: Sealing The Printer
1.2 SEALING THE PRINTER Access to the interior of the fiscal printer TAURUS ONLINE is locked by a seal of modeling clay covering one of the screws fixing the base. The seal is the service seal and it is engraved with the service provider’s id. no. issued by a national manufacturer or a party dealing with intra-community acquisition or import of cash registers. -
Page 8: Explanation Of Terms
User manual – TAURUS ONLINE 1.3 EXPLANATION OF TERMS • Non-fiscal mode of operation – The printer is in this operation mode from the assembly by the manufacturer until conducting fiscalization by the authorized service provider. Working in this mode, the printer prints on the printouts the header without the line including the user’s Tax Id. -
Page 9: Basic Terms Of Operation Of The Printer
User manual – TAURUS ONLINE 1.4 BASIC TERMS OF OPERATION OF THE PRINTER The manufacturer enters into the fiscal memory of each printer the serial number and unique number. The numbers are visible outside the printer and are entered into ‘The fiscal cash register’s service log’ attached to the printer. - Page 10 User manual – TAURUS ONLINE Optional graphics Name of the tax payer Address of the sales point Following number of printout Designation of the daily fiscal report Number of the fiscal day Duration of the particular fiscal day Definition of the goods and services tax rate...
-
Page 11: Reaching The Capacity Of The Fiscal Memory
User manual – TAURUS ONLINE Important: Note that the Daily report is printed automatically during closing the period called the Fiscal Day and such manner of receiving the printout should not be treated as the manner of settlement of internal periods, e.g. particular changes within the calendar day. -
Page 12: Construction Of The Fiscal Printer

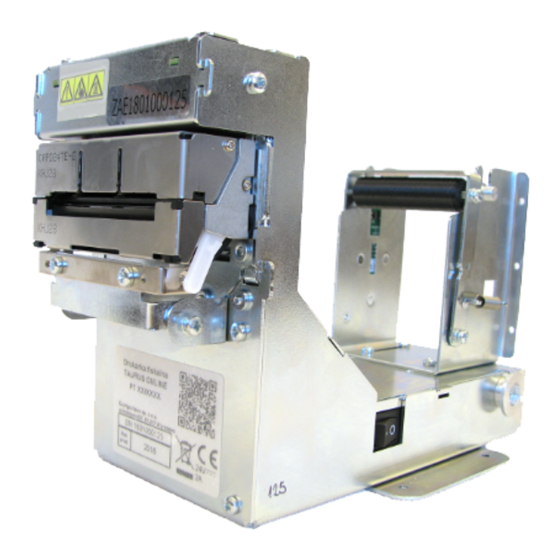

2 CONSTRUCTION OF THE FISCAL PRINTER The fiscal printer TAURUS ONLINE is constructed based on the thermal printing mechanism SEIKO equipped with the automatic paper cutter. The printer has the battery power supply and external client’s display OLED 3.12”. The whole construction of the printer is intended for building in and it is available in three versions: horizontal, vertical and module. -
Page 13: Sizing
User manual – TAURUS ONLINE Status of the printing mechanism. Open status – the block of the Closed status – the block of the impression roller is released. impression roller is shut. b) external client’s display autonomic menu buttons 2.2 SIZING The device’s dimensions are provided in millimeters for each construction option in the printer and the display... - Page 14 User manual – TAURUS ONLINE b) Option 2 of the printer with the paper roll with the diameter of 140 mm Option 3 of the printer with the paper roll with the diameter of 140 mm d) Option 1 of the client’s display...
-
Page 15: Connections Of The Printer And Display
User manual – TAURUS ONLINE e) Option 2 of the client’s display 2.3 CONNECTIONS OF THE PRINTER AND DISPLAY Basic connections of the printer are located at the back of the printer’s base and they have been marked in accordance with the below symbols. And the client’s display’s connection is located at the back of its case, marked as DISP (display). - Page 16 User manual – TAURUS ONLINE Mains plug connection 24V DC Mains plug connection: WURTH ELEKTRONIK 649003127222. Marking Description VIIN +24VDC Reserved GNDI Ethernet connection Ethernet connection for the connection with internet or LAN network, operating in the IEEE 802.3 100BASE-TX standard.
- Page 17 User manual – TAURUS ONLINE Data transmission - Data transmission + Mass DISP connection Module connection intended for connecting a dedicated, external client’s display. Type: RJ12 Connection: DISP. b) external client’s display DISP connection. Module connection for connecting a dedicated display with the printer.
- Page 18 User manual – TAURUS ONLINE...
-
Page 19: Operating Panel
User manual – TAURUS ONLINE 2.4 OPERATING PANEL The fiscal printer TAURUS ONLINE is a cash register of the special application, intended for internal assembly in the devices for automatic sales of goods and services, including fuels at self-service petrol stations. Given the above, the visual signalization has been waived, with the sound signals instead. -
Page 20: Composition Of The Packaging
User manual – TAURUS ONLINE 3.1 COMPOSITION OF THE PACKAGING The printer’s packaging should include: 1. Fiscal printer, 2. External client’s display, 3. Start paper 57 mm, 4. Cash register’s log, 5. Warranty card with the implementation card for the client and manufacturer, 6. -
Page 21: Basic Principles Of The Printer's Operation
User manual – TAURUS ONLINE • the printer should not be used or stored in dusted or dirty places, • no foreign materials or liquids may be let in the device, • the printer should be placed on a firm surface, intensive vibrations or shocks may damage it, •... -
Page 22: Operation Of The Fiscal Printer
User manual – TAURUS ONLINE 4 OPERATION OF THE FISCAL PRINTER 4.1 STARTING THE PRINTER In order to start the printer: 1. Connect the power supply to the printer: +24V (DC). 2. Turn the switch on the right side of the printer into the proper position. -
Page 23: Switching Off The Printer
When using cables which are not dedicated by the manufacturer, electromagnetic disturbances may occur which may damage the device. 4.5 CONNECTING THE PRINTER WITH INTERNET It is possible to connect the fiscal printer TAURUS ONLINE with Internet through the interface: Ethernet... -
Page 24: Inserting The Paper Roll
User manual – TAURUS ONLINE The fiscal printer enables to transfer data with use of the communication protocol, containing the group of orders related to: cash register’s fiscalization, transfer of data, verification of control sum of the cash register’s operation software, change of schedule of data transfer, turning on or turning off the printing of QR code text, switching the cash register into the mode read-only, update of the cash register’s operation software, change of scope of... - Page 25 User manual – TAURUS ONLINE 3. Put the paper roll on the axis. Paper should unroll from the upper part of the roll. Maximum diameter of the roll may amount to 200 mm. 4. Put the axis with the paper roll on the paper handle.
-
Page 26: Service Actions
User manual – TAURUS ONLINE 4.7 SERVICE ACTIONS The printer requires periodical maintenance and once every two years, the service inspection. Systematic maintenance of the device guarantees longer reliability of the device. Recommended maintenance procedures should be performed no less frequently than once a year, although it depends on the environment of the device’s operation (e.g. -
Page 27: Update Of The Cash Register's Software
User manual – TAURUS ONLINE A stick for cleaning the printing head. 4. Shut the block of the impression roller, only after complete evaporation of alcohol. NOTE! Never clean the printer right after printing, as the heating element is very hot then! Before cleaning, the printer must be switched on and the block of the impression roller open! Do not use for cleaning anything that could damage the heating elements. -
Page 28: Client's Display
User manual – TAURUS ONLINE The process of update lasts approximately 45 minutes. When the update operation has been correct, the user will receive the confirmation in the form of a printout and the printer restarts automatically. In the event of unsuccessful update, it is possible to repeat the process only after the following closing of the fiscal day. -
Page 29: Menu Structure
User manual – TAURUS ONLINE selection to the following item, e.g. if you want to enter a 3-digit number, the thousandth digit should be set first, after its approval, the tenth digit should be set and after its approval – the unity digit should be set. The numeric values are limited by the proper range which prevents the user from selecting improper value. - Page 30 User manual – TAURUS ONLINE Interfaces > RS-232C-A Protocol FP-210 | FPE1 | FPE2 | Log Trans.: 115200 N 8 2 9600 0 1 19200 E 28800 38400 57600 Handshake Software Hardware Return above ^ Cutter Option Return above ^...
-
Page 31: Daily Report
User manual – TAURUS ONLINE Return above ^ Return above ^ Beeper Currently: turned off switch on switch off Return above ^ Return above ^ Starting Verification of the protected memory: Yes/No switch on switch off Return above ^ Return above ^... -
Page 32: Periodical Report
User manual – TAURUS ONLINE 2. Select the first item ‘Financial reports’ with the button ✓. 3. Select the first item ‘Daily report’ with the button ✓. Producing the daily report results in saving a relevant record in the fiscal memory in appropriate VAT rates from the given fiscal day. - Page 33 User manual – TAURUS ONLINE Fiscal printer option1: 147 x 120 x 207 (without paper roll) option2: 228 x 95 x 157 option3: 136 x 116 x 157 + 150 (module) Weight Fiscal printer: 1.63 kg (without paper roll) Electric...
-
Page 34: Display's Parameters
User manual – TAURUS ONLINE Name of the good / service Depending on the selected font up to 48 characters Capital letters, numbers, characters: . , % \ / Unit price 0.01 .. 429496.7249 Quantity 0.005 .. 429496.7295 Amount of transaction for 0.01 .. -
Page 35: Description Of Emergency Situations
User manual – TAURUS ONLINE Mechanic specifications Construction: external, for building in Dimensions height x width x length [mm] Client’s display: 60 x 115 x 25 Weight Client’s display 0.07 kg Electric specifications Type of the display: graphic Type of the display: OLED 3.12”... - Page 36 User manual – TAURUS ONLINE Printer’s cover is open 0x8105 Check the cover closing Paper jam 0x8106 See section 4.5 Overheating of the printing head 0x8107 Turn off the printer and wait a few minutes Error of the cutter 0x8108 See section 4.5, restart the printer, call the...
- Page 37 User manual – TAURUS ONLINE Important records in the fiscal memory are 0x6411 damaged Error at totalizer’s display from the fiscal 0x6412 memory Replaced fiscal memory 0x6415 Errors related to the data transmission Message Code Description Error of data transmission to the Central Cash...
-
Page 38: Drivers, Software, Instructions, Certificates
MemoryViewer Software for local review and print of content of the fiscal and protected memory. The fiscal printer TAURUS ONLINE has achieved homologation based on the decision of the Central Office of Measures: PT 21/2019 of 15.04.2019.
