- Page 1 FP-T88FVA Online User manual...
- Page 2 User manual - FP-T88FVA ONLINE The company Exorigo-Upos has put all efforts so that the information included in this document be correct and reliable. However, the company Exorigo-Upos does not bear any liability for consequences arisen out of use of the information, as well as it reserves the right to make changes without prior informing the interested parties.
- Page 3 User manual - FP-T88FVA ONLINE History Homologation Changes Changes Version Date Date 23-09-2019 1.0.0 04-12-2019 First draft Update: 1.2 SEALING THE PRINTER, 4.7 1.0.1 11-12-2019 SERVICE ACTIONS, 4.9 UPDATE FIRMWARE, 6.2 PRINTER’S PARAMETERS Update: 2 Construction of the fiscal printer, 1.1 Terms of use, 1.2 Sealing of printer, 1.4...
-
Page 4: Table Of Contents
User manual - FP-T88FVA ONLINE TABLE OF CONTENT GENERAL INFORMATION ......................5 1.1. TERMS OF USE ................... 5 1.2. SEALING THE PRINTER ................6 1.3. EXPLANATION OF TERMS ................7 1.4. BASIC TERMS OF OPERATION OF THE PRINTER ..........8 1.5. -
Page 5: General Information
User manual - FP-T88FVA ONLINE 1 GENERAL INFORMATION The fiscal printer FP-T88FVA ONLINE of the company Exorigo-Upos is the tax payer’s equipment for recording turnover from sales of goods and provision of services, as well as relevant tax amounts in real-time. So that the fiscal printer can fulfill its function, it is required to install a software for operation of sales on a computer and to have a stable internet connection. -
Page 6: Sealing The Printer
1.2. SEALING THE PRINTER Access to the interior of the fiscal printer FP-T88FVA ONLINE is locked by a two seals of modeling clay covering two of the screws fixing the base. The seals are the service seals and they have the engraved ID number of service provider’s, issued by a national... -
Page 7: Explanation Of Terms
User manual - FP-T88FVA ONLINE registers have been included in the relevant Regulation of the Minister of Finance (the Polish journal of laws: Dz. U. 2019 poz. 816) regarding cash registers. 1.3. EXPLANATION OF TERMS • Non-fiscal mode of operation – The printer is in this operation mode from the assembly by the manufacturer until conducting fiscalization by the authorized service provider. -
Page 8: Basic Terms Of Operation Of The Printer
User manual - FP-T88FVA ONLINE 1.4. BASIC TERMS OF OPERATION OF THE PRINTER The manufacturer enters into the fiscal memory of each printer the serial number and unique number. The numbers are visible outside the printer and are entered into ‘The fiscal cash register service book’... - Page 9 User manual - FP-T88FVA ONLINE Optional graphics Name of the tax payer Address of the sales point Following number of printout Designation of the daily fiscal report Number of the fiscal day Duration of the particular fiscal day Definition of the goods and services tax rate...
-
Page 10: Reaching The Capacity Of The Fiscal Memory
User manual - FP-T88FVA ONLINE Important: Note that the Daily report is printed automatically during closing the period called the Fiscal Day and such manner of receiving the printout should not be treated as the manner of settlement of internal periods, e.g. particular changes within the calendar day. -
Page 11: Construction Of The Fiscal Printer

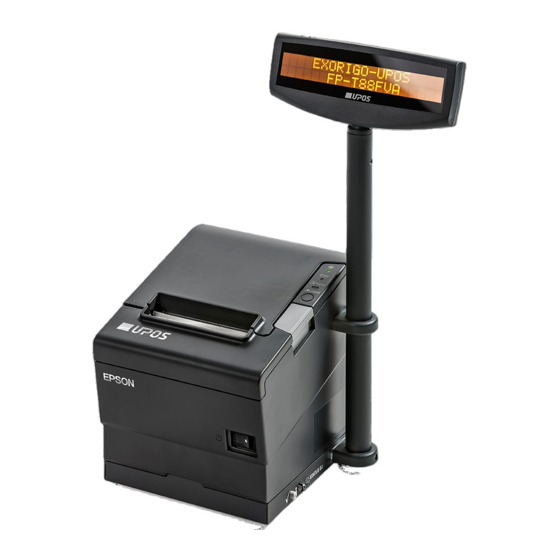

User manual - FP-T88FVA ONLINE 2 CONSTRUCTION OF THE FISCAL PRINTER The fiscal printer is built of an "easy load" thermal printing mechanism equipped with an automatic cutter, a customer display in an integrated version with the printer, with a... -
Page 12: Interface Connectors
User manual - FP-T88FVA ONLINE 2.3. INTERFACE CONNECTORS Power Ethernet Drawer HDMI RS-232 Ethernet 24V DC Connectors marked with a frame appear depending on the fiscal printer configuration. It is possible that the user will not have an additional Ethernet or HDMI connector. - Page 13 User manual - FP-T88FVA ONLINE Drawer connector The printer is equipped with a signal interface to drawer connection. Opening the drawer, reading the status and set pulse parameters of drawer are functions supported by the printer's communication interface. The printer has the option of changing the drawer opening voltage for values: 5/6/12/24 V, and allows for connecting to the most usage drawers on the market.
-
Page 14: Control Panel
User manual - FP-T88FVA ONLINE 2.4. CONTROL PANEL POWER LED ERROR LED PAPER LED FEED BUTTON COVER OPEN BUTTON Select The LEDs on the top receipt cover indicate the status of the printer. Below is the description of the individual signals and buttons. -
Page 15: Unpacking And Preparing For Work
7. Warranty card with the implementation card for the client and manufacturer 8. Fiscal printer with integrated customer display. 3.2. CONNECTING THE PRINTER WITH THE COMPUTER The fiscal printer FP-T88FVA ONLINE may be connected with the computer through the interfaces: RS-232 (serial port) -
Page 16: Drivers, Software, Instructions, Certificates
User manual - FP-T88FVA ONLINE USB (virtual serial port) Ethernet Work with the printer is possible only upon its detection by the appropriate cash register’s application (adjusted to the printer’s functionality). Connection of the printer with the computer through the USB port may require installation of a driver which is available on the printer manufacturer’s website. -
Page 17: Basic Principles Of The Printer's Operation
User manual - FP-T88FVA ONLINE • using the printer in the place with too high or too low temperature should be avoided, • the printer should not be exposed to intensive sunlight, • the printer should not be used or stored in dusted or dirty places, •... -
Page 18: Operation Of The Fiscal Printer
User manual - FP-T88FVA ONLINE 4 OPERATION OF THE FISCAL PRINTER Only unplugging the power supply cable results in full disconnection of power from the device. Before connecting the device with electric network 230 V AC, it should be checked... -
Page 19: Switching Off The Printer
User manual - FP-T88FVA ONLINE NOTE! Charging batteries is possible only when the printer is plugged into the 230 V (AC) network. One should not let the battery become completely discharged, as duration of full charging lasts approx. 24 hours. It is recommended to turn on external power supply even when the printer is not used or when it is switched off. -
Page 20: Inserting The Paper Roll
User manual - FP-T88FVA ONLINE 4.5. INSERTING THE PAPER ROLL NOTE! During the printer’s operation, the printing mechanism must be closed. The elements of the cutting edge of the paper cutter may not be touched in order to not to get hurt. -
Page 21: Changing The Width Of The Paper
User manual - FP-T88FVA ONLINE In the event of replacement of a roll into a new one, note that the remaining of the waste paper roll should be removed. 4.6. CHANGING THE WIDTH OF THE PAPER Using the paper reducer included with the printer, it is possible to use a 58 mm wide thermal paper roll. - Page 22 User manual - FP-T88FVA ONLINE Thorough maintenance of the device is carried out by a service technician, however some basic operations can be carried out by the user. To clean the cover of the printer, use a cotton cloth slightly moistened with water or dry.
-
Page 23: Customer Display
5. Close the cutter cover and start the printer. 4.8. CUSTOMER DISPLAY The FP-T88FVA ONLINE printer is equipped with a 2x20 character alphanumeric LCD customer display, which shows the current state of the printer. The display is an integral part of the fiscal printer and performs the following functions: •... -
Page 24: Update Firmware
User manual - FP-T88FVA ONLINE • Place the printer on a stable, flat surface, • The display should be set in face side to the customer, • Do not move the printer by the mast. 4.9. UPDATE FIRMWARE The firmware can be updated by the manufacturer. The user will be notified by the printer about the appearance of a new update. -
Page 25: Menu Structure
User manual - FP-T88FVA ONLINE Holding the button ✓ for approximately 2 seconds, in the course of setting the numeric value: • if the selection cursor is placed on the last digit (unity) – return to the position of the first numeric value will occur, enabling to enter the values again. - Page 26 User manual - FP-T88FVA ONLINE Obcinacz Opcja Cięcie Wróć wyżej ^ Wydruki Odstęp linii Normalny Zagęszczony Anulowanie wydruku po włączeniu zasilania Wróć wyżej ^ Sieć Adres DHCP włączony: Maska Brama Preferowany DNS Alternatywny DNS Wróć wyżej ^ Wróć wyżej ^...
-
Page 27: Daily Report
User manual - FP-T88FVA ONLINE Item of the Description menu Raporty Enables to print the fiscal reports (daily and periodical detailed) and finansowe collective periodical reports. Inne raporty Enables to print non-fiscal information reports, service reports and reports of events. -
Page 28: Technical Specifications
User manual - FP-T88FVA ONLINE was no sales and registration of turnover, then the report will not be printed and there will be printed the inscription ‘No record in the given period’. Summary periodical report is a non-fiscal printout constituting the summary of total turnover divided into the specific tax rates and in their duration for the particular period based on the fiscal daily reports. - Page 29 User manual - FP-T88FVA ONLINE supply: +24V DC, 2.1A Voltage: 24V DC Power consumption: Maximum: 48 W Typical: 41 W Standby: Conditions of operation and Temperature: storage of operation: 5° - +45°C of storage: - 10° - +50°C (without paper roll)
-
Page 30: Description Of Emergency Situations
User manual - FP-T88FVA ONLINE Thermal head 150 km paper Autocutter 2 mln cuts Mechanism 20 mln lines MCBF 70 mln lines MTBF 360 thousand hours 7 DESCRIPTION OF EMERGENCY SITUATIONS Internal errors dealt with by the printer, in most events are signalized immediately with a sound and printed with the verbal description and error’s code. - Page 31 User manual - FP-T88FVA ONLINE Fiscal memory is not formatted 0x601E Fiscal memory is not unblocked 0x601F No access to fiscal memory 0x6400 Error of saving to the fiscal memory 0x6401 Error of reading from the fiscal memory 0x6402 Fiscal memory not connected or not formatted...
-
Page 32: Additional Software
MemoryViewer Software for local review and print of content of the fiscal and protected memory. The fiscal printer FP-T88FVA ONLINE has achieved homologation based on the decision of the Central Office of Measures: ZPT 1/2019 of 23.09.2019. - Page 33 User manual - FP-T88FVA ONLINE...
