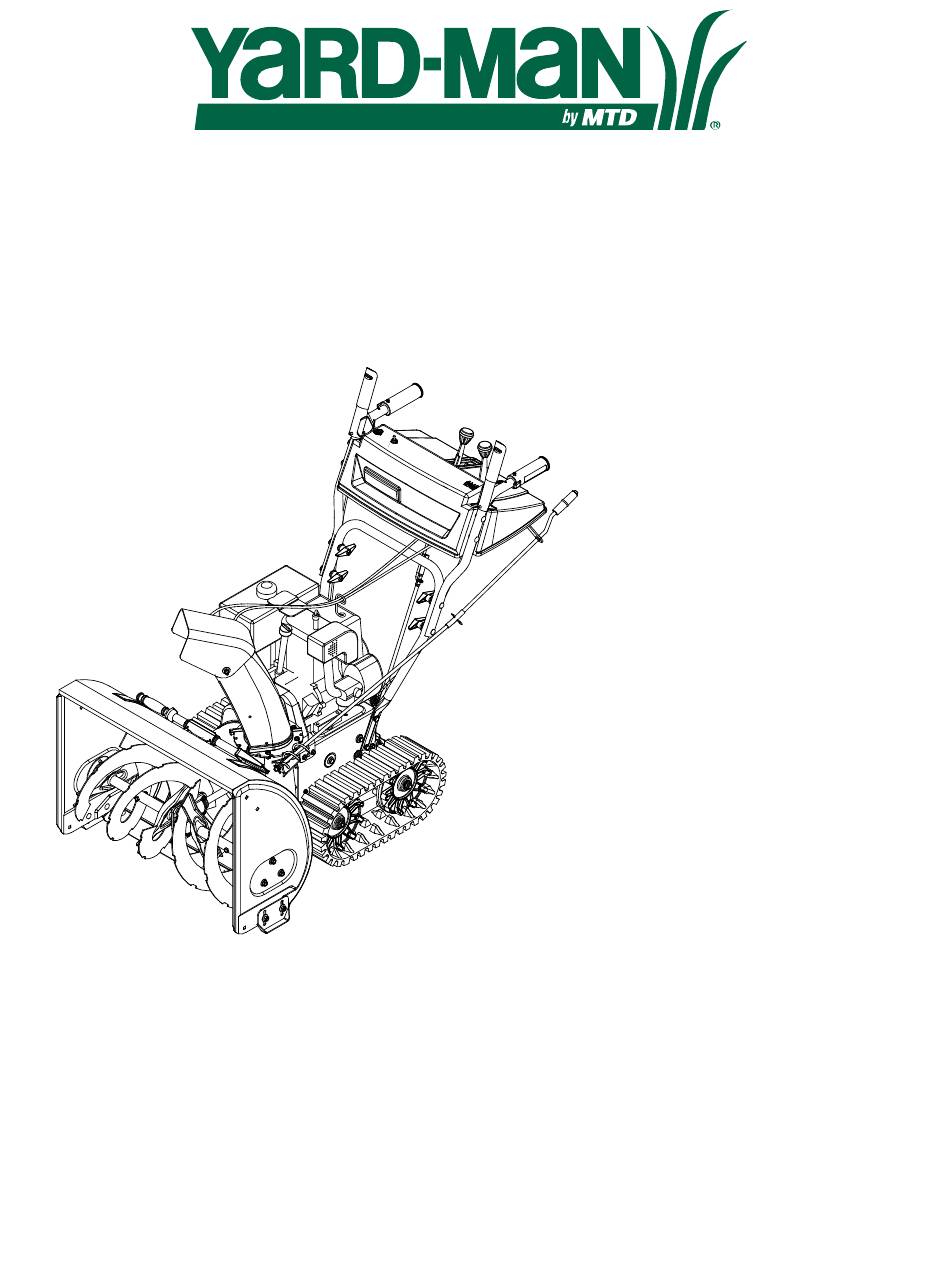

Operator's Manual
SNOW THROWER
MODEL 7L3
IMPORTANT: READ SAFETY RULES AND INSTRUCTIONS CAREFULLY
Warning:
This unit is equipped with an internal combustion engine and should not be used on or near any unimproved forest-
covered, brush-covered or grass-covered land unless the engine's exhaust system is equipped with a spark arrester meeting
applicable local or state laws (if any). If a spark arrester is used, it should be maintained in effective working order by the operator.
In the State of California the above is required by law (Section 4442 of the California Public Resources Code). Other states may have
similar laws. Federal laws apply on federal lands. A spark arrester for the muffler is available through your nearest engine authorized
service dealer or contact the service department, P.O. Box 361131 Cleveland, Ohio 44136-0019.
MTD LLC P.O. BOX 361131 CLEVELAND, OHIO 44136-0019
PRINTED IN U.S.A.
770-10021F.fm
FORM NO.
(6/04)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Yard-Man 7L3 and is the answer not in the manual?

Questions and answers

Summary of Contents for MTD Yard-Man 7L3

  • Page 1 Federal laws apply on federal lands. A spark arrester for the muffler is available through your nearest engine authorized service dealer or contact the service department, P.O. Box 361131 Cleveland, Ohio 44136-0019. MTD LLC P.O. BOX 361131 CLEVELAND, OHIO 44136-0019 PRINTED IN U.S.A.
  • Page 2: Table Of Contents

    This information will be necessary to use the manufacturer’s web site and/or help from the Customer Support Department or an authorized service dealer. Copy the model number here: Copy the serial number here: MTD LLC P. O. BOX 361131 CLEVELAND,OH 44136 www.yardman.com...
  • Page 3: Important Safe Operation Practices

    SECTION 1: IMPORTANT SAFE OPERATION PRACTICES Thi s sym bol poi nt s out i m por t ant saf et y i nst r uct i ons, w hi ch i f not f ol l ow ed, coul d endanger t he per sonal saf et y and/ or pr oper t y of your sel f and ot her s.
  • Page 4 MAINTENANCE AND STORAGE Never run an engine indoors or in a poorly ventilated area. Engine exhaust contains carbon monoxide, an Never tamper with safety devices. Check their proper odorless and deadly gas. operation regularly. Refer to the maintenance and Do not operate machine while under the influence of adjustment sections of this manual.
  • Page 5: Assembling Your Snow Thrower

    SECTION 2: ASSEMBLING YOUR SNOW THROWER NOTE: References to right or left side of the snow • Raise the upper handle assembly until it locks over thrower are determined from behind the unit in the the lower handle. operating position. The “operator’s position” is defined •...
  • Page 6: Know Your Snow Thrower

    SECTION 3: KNOW YOUR SNOW THROWER Drive Control / Shift Lever Clean-out Auger Control Lock Chute Tilt Tool Control Heated Handles Switch Headlight Auger Control Chute Track Steering Assembly Control Electric Starter Primer Button Switch Choke Chute Directional Control Safety Recoil Ignition Key Starter...
  • Page 7: Operating Your Snow Thrower

    To change the direction in which snow is thrown, turn Do NOT attempt to turn the key. IMPORTANT: chute directional control as follows: Headlight • Crank clockwise to discharge to the left. • Crank counterclockwise to discharge to the right. The headlight is on whenever the engine is running.
  • Page 8 To Start Engine • Push primer button two or three times. If engine is warm, push primer button once only. • Attach spark plug wire to spark plug. Make certain NOTE: Always cover vent hole in primer button when the metal loop on end of the spark plug wire (inside pushing.
  • Page 9 To Engage Augers Clean-Out Tool • To engage the augers and start throwing snow, The clean-out tool is conveniently fastened to the rear squeeze the auger control against the left handle. of the auger housing with a mounting clip. Should snow Release to stop the augers.
  • Page 10: Adjusting Your Snow Thrower

    Operating Tips • Discharge the snow downwind whenever possible. • Slightly overlap each previous path. • Set the skid shoes 1/4" below the shave plate for NOTE: Allow the engine to warm up for a few minutes. normal usage. The skid shoes may be adjusted The engine will not develop full power until it reaches upward (to lower the shave plate) for hard-packed operating temperature.
  • Page 11 If adjustment is necessary: • Reconnect the upper shift rod to the lower shift rod by reinserting the hairpin clip removed earlier and • Loosen the jam nut on the drive cable. Adjust the sliding the shift rod connector back down into place. cable as necessary.
  • Page 12: Maintaining Your Snow Thrower

    SECTION 6: MAINTAINING YOUR SNOW THROWER WARNING: Before lubricating, repairing, is free of grease in order to relieve pressure. or inspecting, disengage all controls and Auger Shaft stop engine. Wait until all moving parts At least once a season, remove the shear bolts on the have come to a complete stop.
  • Page 13 Augers • Tip the snow thrower up and forward so that it rests on its auger housing. • The augers are secured to the spiral shaft with two shear bolts and hex lock nuts. If you hit a hard foreign object or ice jam, the snow thrower is Self-Tapping designed so that the bolts may shear.
  • Page 14 • Remove six self-tapping screws from the frame cover underneath the snow thrower. • Using a 7/8" wrench to hold the shaft, loosen, but Support do not completely remove, the hex bolt and bell Bracket Frame washer on the left end of gear shaft. See Figure 19. •...
  • Page 15 • Remove the four screws from the friction wheel WARNING: Drain fuel into an approved assembly. See Figure 20. container outdoors, away from an open • Remove the friction wheel rubber from between the flame. Allow engine to cool. Extinguish friction wheel plates.
  • Page 16: Trouble Shooting

    SECTION 8: TROUBLESHOOTING Problem Cause Remedy Engine fails to start Fuel tank empty, or stale fuel. Fill tank with clean, fresh gasoline. Fuel becomes stale after thirty days. Blocked fuel line. Clean the fuel line. Choke not in the ON position Move switch to the ON position Faulty spark plug.
  • Page 17 NOTES...
  • Page 18: Illustrated Parts List

    SECTION 9: PARTS LIST FOR MODEL 7L3 Part of handle panel for reference only...
  • Page 19 Model 7L3 Ref. Ref. Part No. Part Description Part No. Part Description 684-0008A Shift Arm Assembly 712-04063 Flange Lock Nut 747-0737 Chute Directional Control 714-0145 Click Pin 710-0449 Carriage Screw 5/16-18 x 2.25 714-0507 Cotter Pin 710-0458 Carriage Bolt 5/16-18 x 1.75 732-0145 Compression Spring 710-0643...
  • Page 20 Model 7L3...
  • Page 21 Model 7L3 Ref. Ref. Part No. Part Description Part No. Part Description 712-0116 Lock Jam Nut 3/8-24 790-00087 Bearing Housing 756-0178 Flat Idler 710-0726 Hex Screw 5/16-12 784-5632B Auger Idler Arm 725-0157 Cable Tie 710-0459A Hex Cap Screw 3/8-24 x 1.50 712-04065 Flange Lock Nut 3/8-16 738-0281...
  • Page 22 Model 7L3...
  • Page 23 Model 7L3 Ref. Part No. Part Description 710-0896 Hex Washer Screw 1/4-14 x.625 731-1324 Belt Cover 732-0710 Extension Spring 710-0627 Hex Screw 5/16-24 x.75 710-3005 Hex Cap Screw 3/8-16 x 1.25 05896A Drive Clutch Idler Bracket 748-0234 Shoulder Spacer 756-0987 Pulley Half 754-0346 V-Belt...
  • Page 24 Model 7L3 32 32 30 31...
  • Page 25 Model 7L3 Ref. Ref. Part No. Part Description Part No. Part Description 736-0270 Bell Washer.265 ID x.75 OD 784-5648 Frame Cover 736-0176 Flat Washer 1/4 ID x.93 OD 710-0896 AB Screw 1/4-14 x.625 741-1111 Hex Flange Bearing 748-0190 Spacer 710-0643 Hex Cap Screw 5/16-18 x 1”...
  • Page 26 Model 7L3...
  • Page 27 Model 7L3 Ref. Ref. Part No. Part Description Part No. Part Description 720-0223 Grip 618-0169A Track/Steering Shaft Assembly 710-0726 Tap Screw, 5/16-12 x.750 683-0024 Track Hub Assembly 784-5642 Track Lockout Plate 713-0437 Chain 710-0157 Hex Cap Screw, 5/16-24 x.75 741-0339 Flange Bearing 736-0242 Bell Washer...
  • Page 28: Warranty

    MANUFACTURER’S LIMITED WARRANTY FOR: The limited warranty set forth below is given by MTD LLC with MTD does not extend any warranty for products sold or respect to new merchandise purchased and used in the exported outside of the United States, its possessions United States, its possessions and territories.
