INSTALLATION (continued)

INLET CONNECTIONS

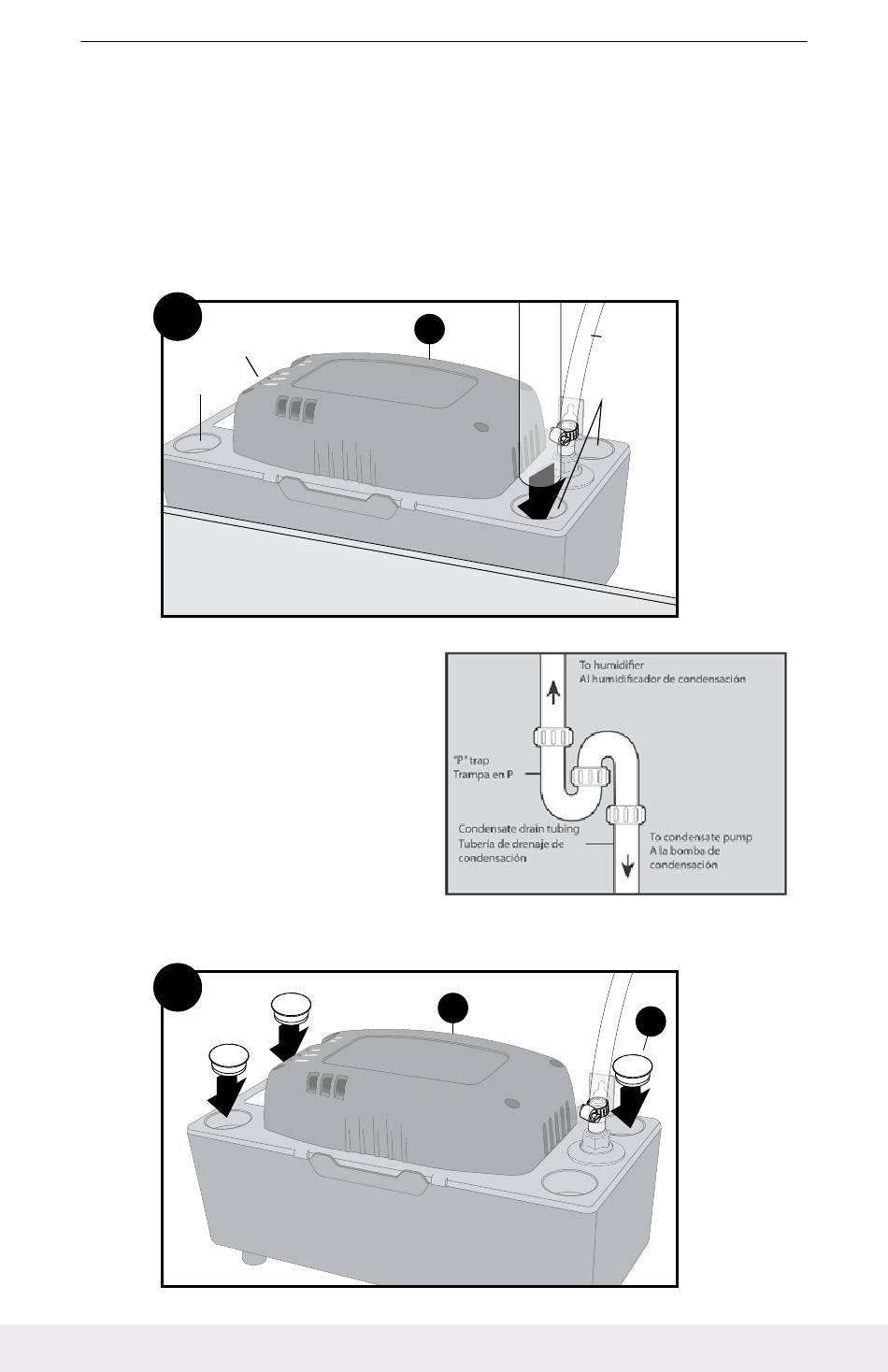

4. INSTALL INLET TUBE CONNECTIONS
Install condensate drain tubing into one of the four inlet holes,
making sure tubing is straight.
4
Inlet holes
Orificios de
entrada
If installing to a humidifier, a
"P" trap should be used.
INLET COVERS
5. INSTALL INLET COVERS
Insert inlet covers in remaining condensate pump inlet holes.
5
