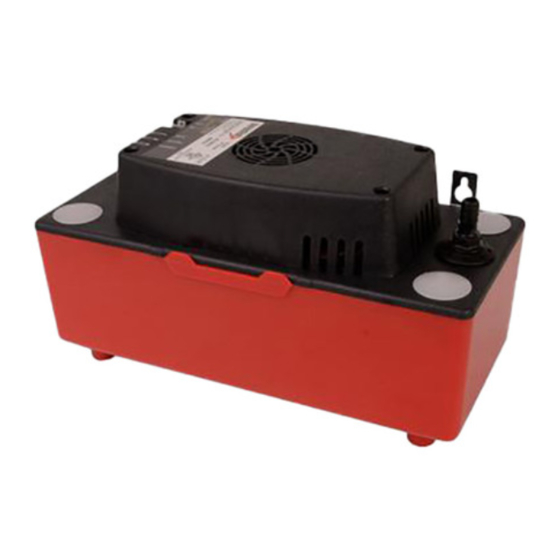

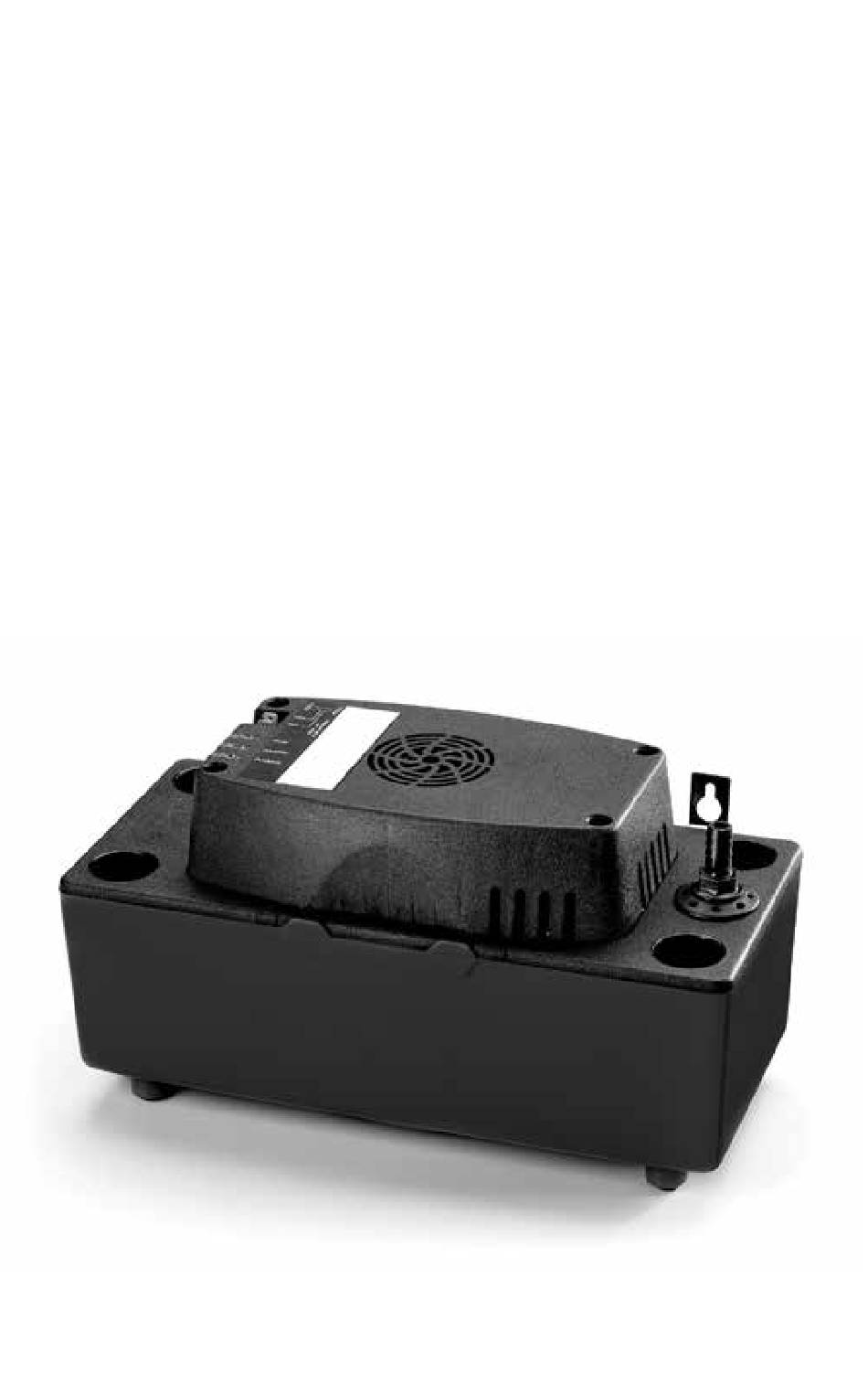

- Page 1 Condensate Pump Installation and Safety Instructions CP-NL20 CP-NL20-230...
- Page 2 CP-NL20 CP-NL20-230 Rated 120 Volts / 60 Hz 220 Volts / 60 Hz Voltage (208-230) Rated 1.9 Amps 1.0 Amps Current Draw Input USA 3-prong plug NEMA 6-15 plug Type Head Height Flow Rate 1.6 GPM 1.6 GPM at Zero Head Temperature •...
- Page 3 SAFETY WARNING FOLLOW ALL SAFETY INFORMATION TO REDUCE POTENTIAL ELECTRICAL SHOCK. DISCONNECT POWER BEFORE SERVICING UNIT. PUMP MUST BE PROPERLY GROUNDED. NEVER USE THE PUMP TO MOVE FLAMMABLE LIQUIDS. NEVER USE THE PUMP IN AN EXPLOSIVE GAS ENVIRONMENT, OR WHERE GAS FUMES OR VAPOR MAY BE PRESENT. ALWAYS DISCONNECT THE POWER PRIOR TO MOVING, ADJUSTING OR SERVICING THE PUMP OR ATTACHED SYSTEMS.
-
Page 4: General Information
General Information Thank you for the purchase of this condensate pump. This pump is designed to automatically remove the condensate water that collects from appliances such as air conditioners and de-humidi ers. The pump has a built-in tank that collects the water from the appliance. When the water collected reaches su cient level inside the pump tank, the pump switches on and pumps the water to a remote location for disposal. - Page 5 The pump is equipped with a combination barb-type fitting and check valve. The fitting allows the connection of 3/8” flexible vinyl tubing such as DiversiTech “CVT” clear vinyl. Attach the tubing by pressing it over the barb fitting and secure with a screw type hose clamp.
-
Page 6: Safety Switch
All aspects of the installation must conform to requirements of the NEC, and any applicable local codes. Safety Switch The pump safety switch should be used on 24V Class II control circuits only. The pump safety switch connections are available on standard ¼” quick connect terminals located on the top cover.
