Summary of Contents for DIVERSITECH CP-16

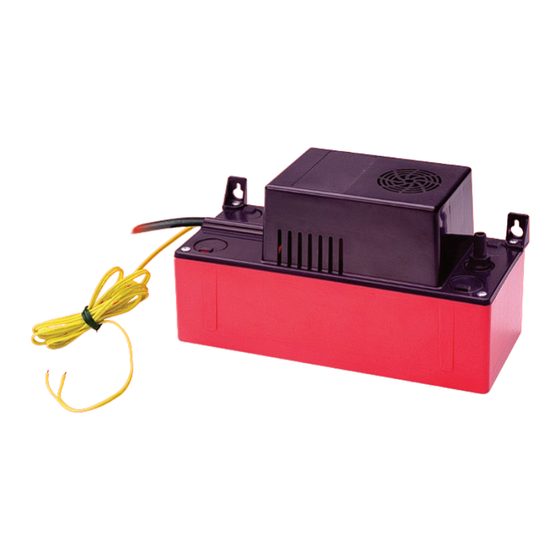

- Page 1 Condensate Pump Installation and Safety Instructions CP-16 CP-16-230...
- Page 2 CP-16 CP-16-230 Rated 120 Volts / 60 Hz 220 Volts / 60 Hz (208-230) Voltage Rated 1.9 Amps 1.0 Amps Current Draw Input USA 3-prong plug NEMA 6-15 plug Type Head 16 . maximum 16 . maximum Height Flow Rate 1.2 GPM...
- Page 3 Limited Warranty All pumps manufactured by or for DiversiTech Corporation (the Compa- ny) and sold by the Company under the DiversiTech brand are warrant- ed to be free of defects in workmanship and materials for a period of 24 months from date of sale from the distributor to the contractor. The Company will credit, repair or replace, at its option, any Pump if deemed defective within this time period.
-
Page 4: General Information
General Information Thank you for the purchase of this DiversiTech condensate pump. This pump is designed to automatically remove the condensate water that collects from appliances such as air conditioners and de-humidi ers. The pump has a built-in tank that collects the water from the appliance. -
Page 5: Safety Switch
The pump is equipped with a combination barb-type tting and check valve. The tting allows the connection of 3/8” exible vinyl tubing such as DiversiTech “CVT” clear vinyl. Attach the tubing by pressing it over the barb tting and secure with a screw type hose clamp. -
Page 6: Pump Operation
Pump Operation Apply power by plugging in the pump. Test oat and safety switch by manually lling the tank. Test Safety Switch operation (if used) to be sure that the A/C system shuts down when the pump has reached an over ow condition. Leak Check: Operate the pump by lling tank to trigger operation.
