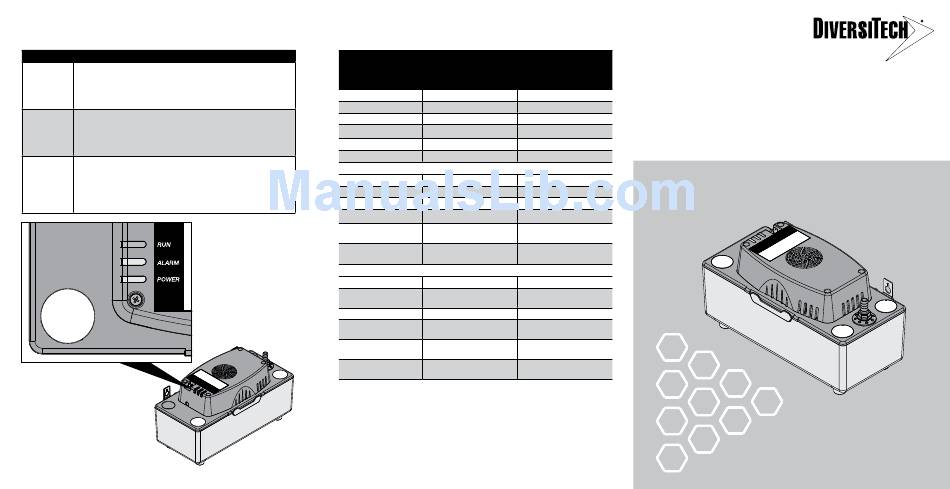

LED Indicator Status/indications des voyants à DEL/
Luz LED indicadora de estado
LED
STATUS/INDICATION/ESTADO
Green LED
Indicates pump has power and is ready
Voyant à
Indique que le circuit du système à c.a. fonctionne et que la pompe
DEL vert
est prête
Luz LED verde
Indica que el circuito del sistema CA está funcionando y la bomba
está lista
Amber LED
Indicates pump is running and removing condensate from tank
Voyant à DEL
Indique que la pompe fonctionne et qu'elle évacue le condensat du
ambre
réservoir
Luz LED ámbar
Indica que la bomba está funcionando y está eliminando la
condensación del tanque
Red LED
Indicates pump is in alarm mode and that the system is shutoff/
disabled (if connected)
Voyant à
Indique que la pompe est en mode alarme et que le système est
DEL rouge
éteint/arrêté (si connecté)
Indica que la bomba está en el modo de alarma y que el sistema está
Luz LED roja
apagado/no está funcionando (si está conectado)
Specifications/Caractéristiques techniques
Especificaciones
CP-22
CP-22LP
CP-22T
CP-22LPT
Rated Voltage
120 Volts/60Hz
Rated Current Draw
1.9 Amps
Head Height
22 ft. maximum
Flow Rate at Zero Head
1.6 GPm
Product Weight
5 lbs. (4.7 lbs. low profile)
Inlet Height from Base
4.4" (1.75" low profile)
Tension nominale
120 V, 60 Hz
Charge totale nominale
1,9 A
Hauteur de la tête
6,71 m maximum
Débit à charge nulle
6,06 L/min
2,27 kg (2,13 kg
Poids de l'appareil
profil surbaissé)
Hauteur entre l'orifice
11,18 cm (4,45 cm
d'admission et la base
profil surbaissé)
Voltaje calificado
120 voltios/60 Hz
Consumo calificado de
1,9 amperios
corriente
Alto de cabezales
máximo de 6,71 m
Índice de flujo con
6,01 LPm
cabezal cero
2,27 kg
Peso de producto
(2,13 kg de bajo perfil)
Alto de entrada a partir
11,18 cm
de la base
(4,45 cm de bajo perfil)
DOC00046
©2014 DiversiTech Corporation
PRInTED In VIETnAm
ImPRImÉ AU VIETnAm
ImPRESO En VIETnAm
CP-22-230 CP22LP-230
CP-22T-230
CP-22LPT-230

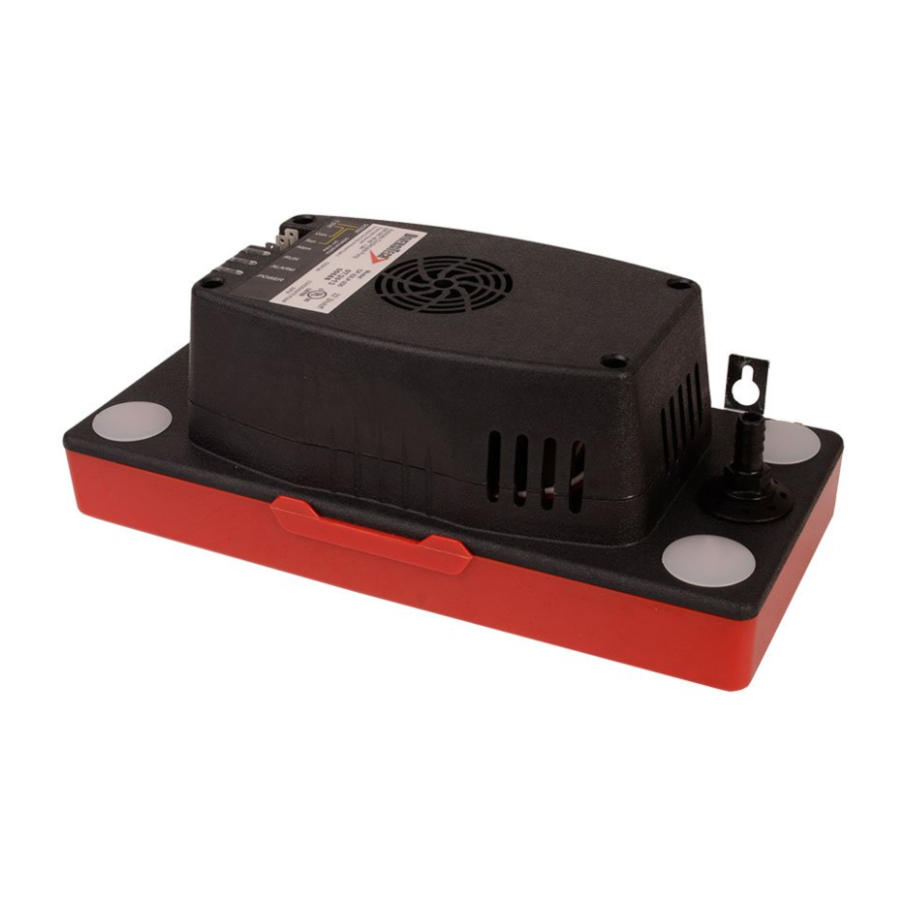

Condensate Pump
220 Volts/60 Hz
1.0 Amps
Pompe à condensat
22 ft. maximum
1.0 GPm
Bomba de condensación
5 lbs. (4.7 lbs. low profile)
4.4" (1.75" low profile)
Quick Reference Guide
220 V, 60 Hz
Guide de référence rapide
1,0 A
Guía de referencia rápida
6,71 m maximum
3,79 L/min
2,27 kg (2,13 kg
profil surbaissé)
11,18 cm (4,45 cm
profil surbaissé)
220 voltios/60 Hz
1,0 amperios
máximo de 6,71 m
3,79 LPm
2,27 kg
(2,13 kg de bajo perfil)
11,18 cm
(4,45 cm de bajo perfil)
Diversitech Corporation
6650 Sugarloaf Parkway
Suite 100
Duluth, GA 30097
800.995.2222
FAX 770.953.8600
CP-22
CP-22LP
CP-22T
CP-22LPT
CP-22-230
CP-22LP-230
CP-22T-230
CP-22LPT-230
Advertisement
Related Manuals for DIVERSITECH CP-22
Summary of Contents for DIVERSITECH CP-22
- Page 1 LED Indicator Status/indications des voyants à DEL/ Specifications/Caractéristiques techniques Luz LED indicadora de estado Especificaciones STATUS/INDICATION/ESTADO CP-22 CP-22-230 CP22LP-230 CP-22LP Green LED Indicates pump has power and is ready CP-22T-230 CP-22T Voyant à Indique que le circuit du système à c.a. fonctionne et que la pompe...
- Page 2 General Information/Information générale/ Features/Caractéristiques/Características General Information This pump is designed to automatically remove the condensate water that Overflow Safety Switch collects from appliances such as air conditioners, high-efficiency furnaces and Interrupteur de sécurité en cas de trop-plein de-humidifiers. The pump has a built-in tank that collects water from the appliance. When water collected reaches sufficient level inside pump tank, pump switches on Interruptor de seguridad de rebose and pumps water to a remote location for disposal.
Need help?
Do you have a question about the CP-22 and is the answer not in the manual?
Questions and answers

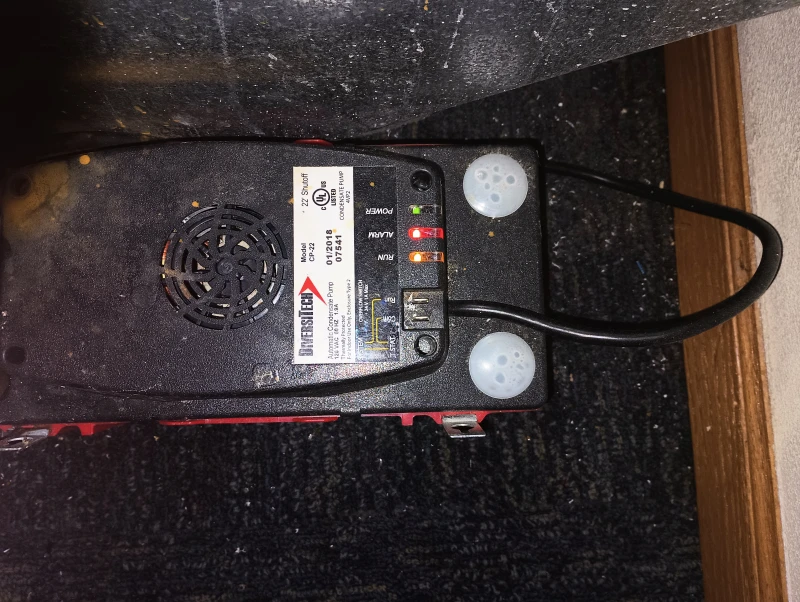

My CP-22 is in the ALARM State. What do I do?
If your DIVERSITECH CP-22 is in the alarm state with the red LED on, follow these steps:
1. Check for Overfill – Manually overfill the tank with water to test the overflow switch.
2. Inspect the Overflow Switch – If the pump is correctly wired, the red LED indicates an overflow condition. The switch might be stuck or misaligned during reassembly.
3. Ensure Proper Reassembly – If the pump was recently cleaned and reinstalled, check if the micro switches are properly positioned.
4. Check for Switch Failure – Though unlikely, the overflow switch could be faulty.
If the issue persists, consider consulting a professional for further troubleshooting.
This answer is automatically generated
Is there a way to manually activate the pump? I usually here it working on occasion but not lately. Thanks
The DIVERSITECH CP-22 pump activates automatically when the water level inside the pump tank reaches a sufficient level. To manually activate it, you can lift the float inside the pump to simulate a high water level. Ensure the pump is powered on before doing this.
