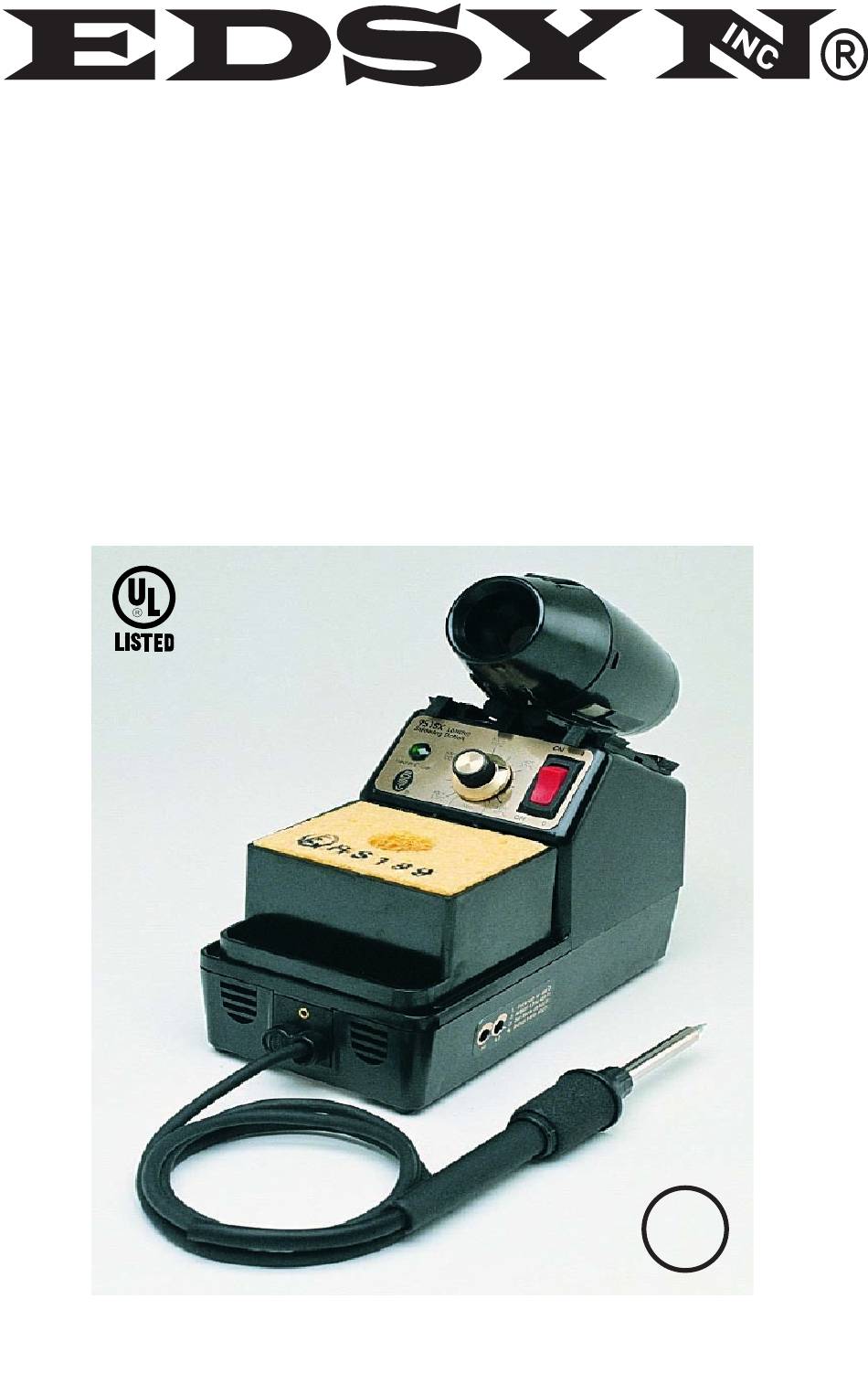

- Page 1 951SX -H10 LONER ® Temperature Controlled Soldering Station • COMPLIES WITH MIL-S-45743E, MIL-STD-2000-1B, WS6536E AND ESD SPEC, DOD-STD-1686, DOD-HDBK-263 • UL listed made U S A Instruction manual...
- Page 2 Specifications for Model 951SX Power Requirements 120V, 60 Hz Power Rating 15W - 220W Heater Rating 120V, 95W Temperature Range 400°F-1000°F/205°C-537°C Temperature Regulation ±6°F/±3°C Tip-to-Ground Voltage Leakage/Resistance < 2mV/< 2 ohms Overall Dimension 4.1"W x 8.2"H x 10"D 104 mm x 208 mm x 254 mm Weight 2.5 lbs/1.1 kg Contents...
- Page 3 PD528 Static Safe Tool Temp. Regulation Indicator Power Switch SH230 Sponge Holder Hollow Threadless Heater Calibration Pots for HI & LO Temp. WARNING: DO NOT HIT OR TAP THE SOLDERING TOOL. THE HEATER ELEMENT WILL BREAK!!! MAINTENANCE • Replace RS199 Cleaning Sponge •...
- Page 4 TIP CLEANING To maintain proper Tip to Ground resistance. Remove Tip from Heater Assembly. Using a ST707 Soldering Tool Maintenance Brush, clean Tip and Heater Barrel at surfaces shown. Install the tip and tighten RS372 Retaining Sleeve. Take note of the gap to ensure proper fitting.
- Page 5 RS372- for General Purpose Tip Soldering Tip RS271- for Heavy Duty Tip SOLDERING TIPS Iron Plated for long life•Nickel and Chrome Plated for optimum heat transfer CONTACT EDSYN FOR MORE SELECTIONS .03 (0.8 mm) .48 (12.2 mm) LT374 Standard Probe .06 (1.5 mm)
- Page 6 951SX LONER SOLDERING STATION ® SPARE PARTS LIST...
- Page 7 ITEM DESCRIPTION PART NO. REQ'D PD528 Tool Pod SR042 Thermal Housing for Tool Pod SC581 Solder Collector for Tool Pod SR043 Front Housing for Tool Pod SH230 General Purpose Sponge Holder RS199 Cleaning Sponge RS243 Leveling Pad for SH230 LN230 Liner for SH230 SH230-1 Sponge Holder Tray...
- Page 8 NO PART OF THIS PUBLICATION INCLUDING THE INDIVIDUAL ICONS MAY BE REPRODUCED OR UTILIZED IN ANY FORM OR BY ANY MEANS WITHOUT THE PERMISSION OF EDSYN, INC. THE NAMES LONER, SOLDAPULLT, SOLDAVAC, ATMOSCOPE AUTO-VAC, IDLE-REST, PIXTER, FUMINATOR, OCTAVAC AND KLATCH ARE REGISTERED TRADEMARKS OF EDSYN, INC.
