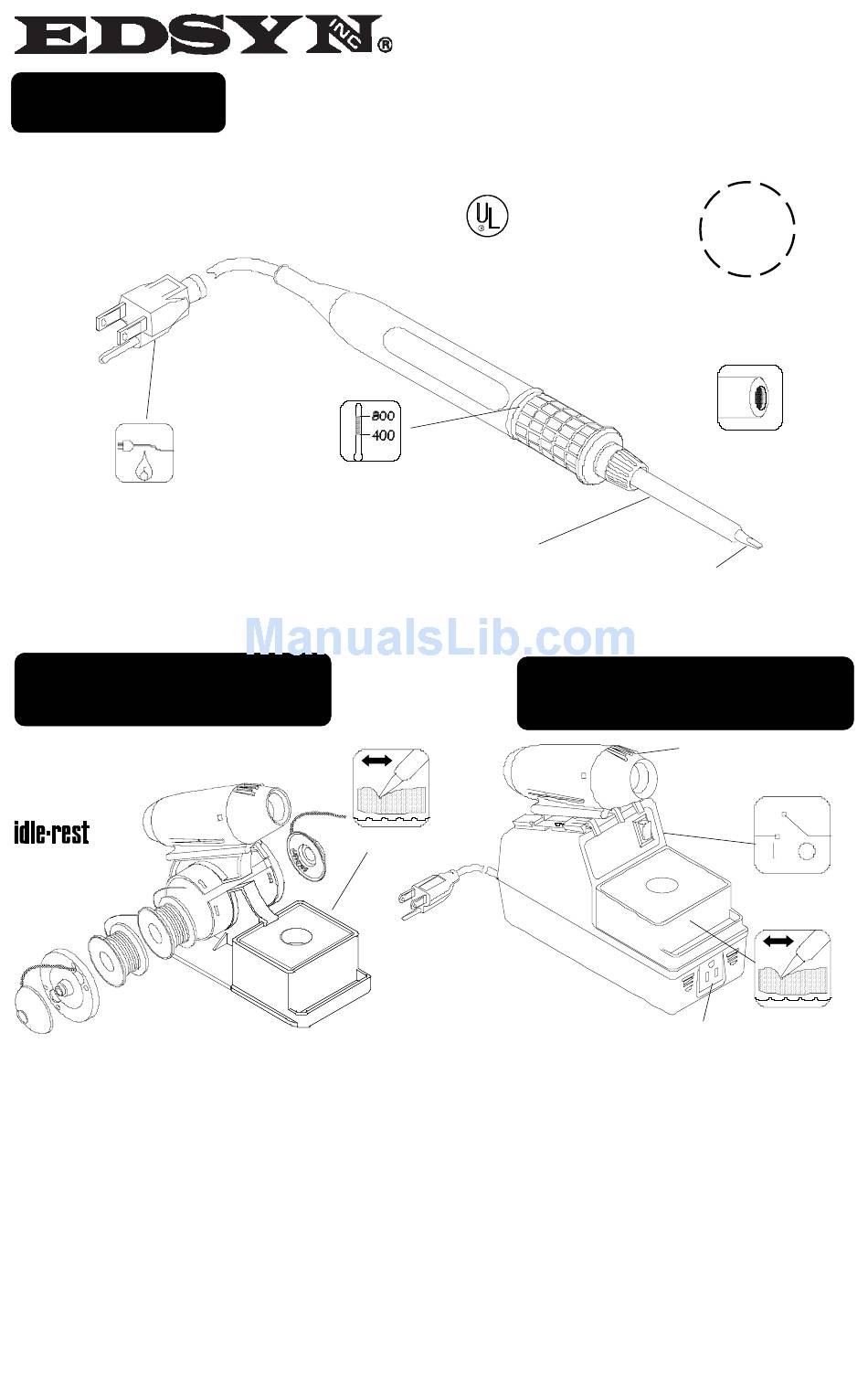

CL1180
Temperature Controlled
SOLDERING INSTRUMENT
Burn Resistant
920
Soldering Station
includes CL1180 and IP329
WICK AND SOLDER SUPPLIES SOLD
SEPARATELY
IP329
Tool Base
TIP CARE
1. Plug-in Tool. Set to desired temperature. (Blinking lamp
means set temperature is reached.)
2. TIN the Tip (apply solder) before soldering.
3. Do not rub, bend or file Tip.
4. Always clean the Tip by wiping it against the saturated
sponge, then re-tin.
5. ALWAYS RE-TIN THE TIP BEFORE AND AFTER USING.
LONER
®
Temp. Control
(inside collar)
Sponge Holder
• 120V, 60Hz, 70W, 5 Oz (142 gm)
• TEMP. RANGE: 400°F - 800°F (205°C - 427°C)
• TEMP. REGULATION: ±6°F (±3°C)
• TIP TO GROUND LEAKAGE: < 2MV
• TIP TO GROUND RESISTANCE: < 2 OHMS
• COMPLIES WITH DOD-STD-2000-1B, MIL-
STD-2000A and ESD SPEC. DOD-STD 1868,
DOD-HDBK-263
LISTED
RS372
Retaining Sleeve
925
includes CL1180 , PD528 and PS536
PS536
Power Supply
made
in
U S A
Hollow Heater
Soldering Tip
Soldering Station
PD528 Tool Holder
not included with PS536
Power Switch
Sponge Holder
120 VAC
Receptacle
Advertisement
Table of Contents
Related Manuals for Edsyn Loner CL1180
Summary of Contents for Edsyn Loner CL1180
- Page 1 • 120V, 60Hz, 70W, 5 Oz (142 gm) • TEMP. RANGE: 400°F - 800°F (205°C - 427°C) • TEMP. REGULATION: ±6°F (±3°C) • TIP TO GROUND LEAKAGE: < 2MV CL1180 LONER • TIP TO GROUND RESISTANCE: < 2 OHMS ® •...
- Page 2 4. Insert new Tip. 5. Install RS372. (should be "finger" tight only.) SOLDERING TIPS Iron Plated for long life•Nickel and Chrome Plated for optimum heat transfer CONTACT EDSYN FOR MORE SELECTIONS .03 (0.8 mm) .48 (12.2 mm) LT374 Standard Probe .06 (1.5 mm) .48 (12.2 mm)
- Page 3 TEMPERATURE ADJUSTMENT YOU WILL NEED THE MS412 TEMPERATURE CALIBRATION SYSTEM TO MONITOR TEMPERATURE. Loosen RC334 to expose Temp. Control Screw. Using a clean and well-tinned tip do set up according to illustration so that the thermocouple wire is hanging on the tip.
- Page 4 Strain Relief, For Tool Cord SR075 Circuit Board Assy., 120V SR322 Spacer, Temp. Adjustment, For Control Pot 15958 ARMINTA ST. VAN NUYS, CA 91406-1896 PHONE: (818) 989-2324 FAX (sales): 818-997-0895 FORM .423 Email: info@edsyn.com Internet: www.edsyn.com © Copyright EDSYN,Inc.1998 Rev E...
