- Page 1 Page 2 ..AP50-G1W Page 8 ..AP70-G2W_AP110-G2W Page 15 ..SBF80-G2W_SBF110-G2W...
- Page 2 AP50G1 / AP50L1...

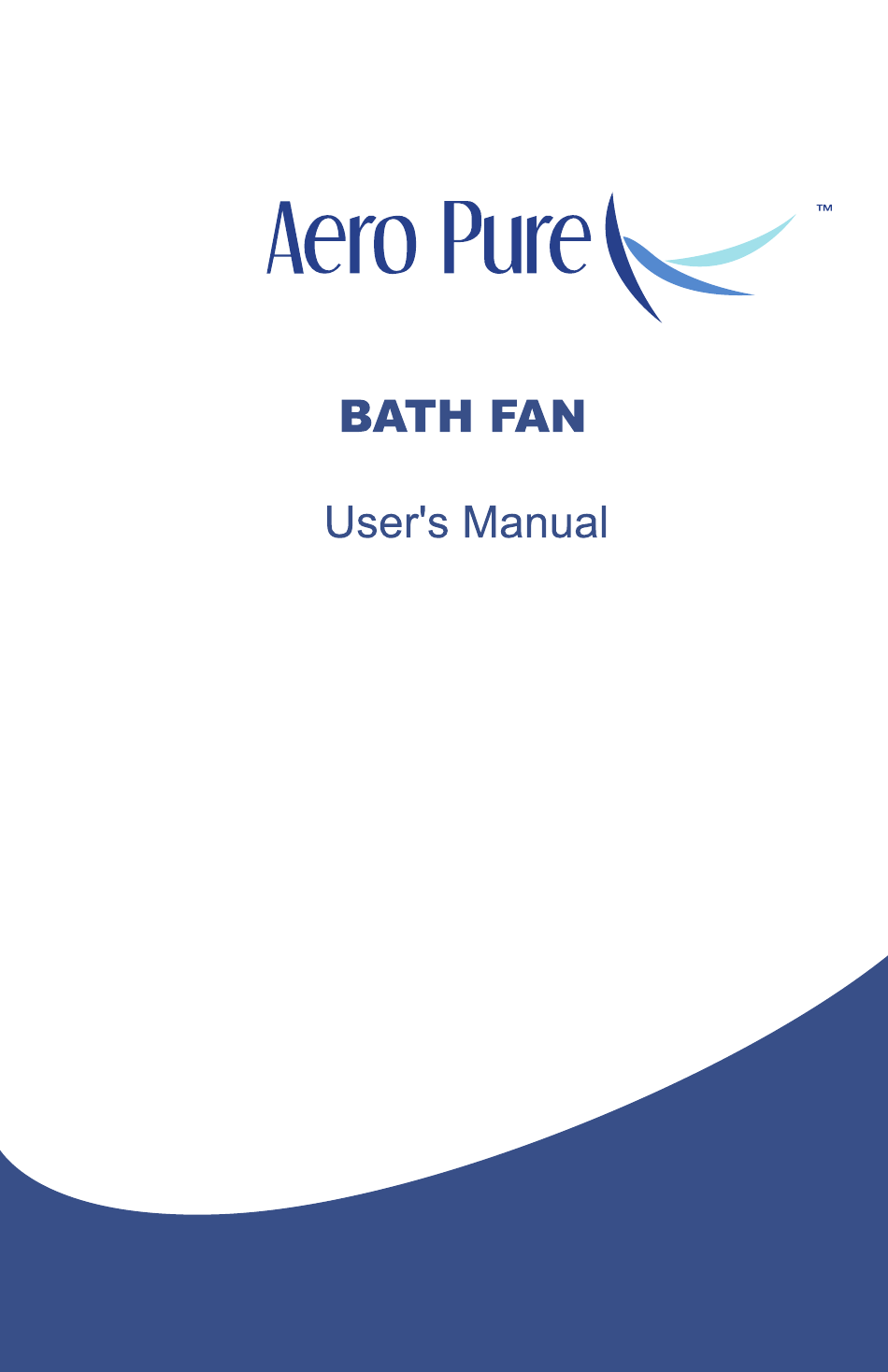

- Page 8 BATH FAN User's Manual AP50G AP70G / AP80L AP110G / AP100L...
- Page 9 READ AND SAVE THESE INSTRUCTIONS. Read these instructions carefully before installing or using this product! Dear customers, Thank you for selecting Aero Pure, which is surely to bring you satisfaction. Read all instructions before using the unit. Save these instructions please. WARNING!
- Page 10 13. Do not block air intakes or exhaust in any manner. 14. Do not switch on/off frequently when in use. Shut off power if in long vacancy. 15. Shut off power urgently if anything unusual occur when in operation and contact with local agent or specialized maintenance shop.
-
Page 11: Installation
TO INSTALL, FOLLOW THE STEPS AS FOLLOWING: INSTALLATION 1. PREPARATION FOR Power supply Figure 2 Housing Fan outlet INSTALLATION (Figure 2) protective tube The unit should be ceiling insert Ceiling joist only. The size of joists should be at least 2" wide and 4" high. The space between two joists should be 16". -
Page 12: Maintenance
5) Hang housing onto the screw and Figure 6 pound all the screws tight. Connect the end of wire in the wire box with power wire outside according to the wire diag- ram, then replace the wire box cover after putting the protective tube for the power wire in the very position. -
Page 13: Warranty
The product is warranted against failure for a period of 4 years. Labor costs extra. Please keep and bring the original invoice to your local agent for warranty services. This warranty is null and void if product is not installed by a Licensed Electrician and Aero Pure LLC assumes no responsibility for any and all loss. -
Page 14: Main Technical Parameters
MAIN TECHNICAL PARAMETERS Power consumption Model Rated Rated Airflow (CFM) number voltage frequency Night Motor Light light AP50G 120V 60Hz ≤20 (2,3,4,5,6...) AP70G 120V 60Hz ≤35 (1,2,3,4,5,6...) AP110G 120V 60Hz ≤40 (1,2,3,4,5,6...) AP80L1 AP80L2 120V 60Hz ≤26, PL ≤25 AP80L3 AP100L1 AP100L2 120V... - Page 15 BATH FAN User's Manual SBF80L1 / SBF80G SBF110L1 / SBF110G...
- Page 16 READ AND SAVE THESE INSTRUCTIONS. Read these instructions carefully before installing or using this product! BEFORE INSTALLATION WARNING! TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING: 1. Use this unit in the manner intended by the manufacturer. If you have any questions, please contact the manufacturer .
- Page 17 12. Power supply wiring is to be No. 14 AWG wire or larger (suitable for at least 90C (190F) ). 13. Not for use outdoors. 14. For the lighted unites, use only PLC type 26W lamps and a maximum of 4W night lamp for lighting.(SBF80L, SBF110L) 15.
- Page 18 PLEASE INSTALL AS THE FOLLOWING STEPS: INSTALLATION The unit should only be installed Power supply Figure 2 Housing Fan outlet in a ceiling. The size of joists protective tube should be at least 2” wide and 4” Ceiling joist high . The space between two joists should be 16”.
- Page 19 4. Remove the housing and drive the screws part way into the joists Figure 5 at the marked locations. 5. Mount the housing using the screws in the joists and then secure them tightly. Make all the electrical connections in the wire box, per the wiring diagram, and attach the wire box cover.
- Page 20 MAINTENANCE 1. Turn the power off and lock it out prior to servicing or cleaning. 2. To clean the grille, first remove it from the fan then use a soft brush and clean water to remove the dirt. If the dirt is not easily removed, wash with a neutral detergent. 3.
- Page 21 LIST OF ACCESSORIES Operation Unit 1 Unit 5 Pieces Bracket for Installation 1 Piece User's Manual 1 Piece 26W energy saving Lamp ( in model SBF80L, SBF110L ) 4W night lamp ( in model SBF80L, SBF110L ) 1 Piece MAIN TECHNICAL PARAMETERS Power consumption Model Speed...
- Page 22 Aero Pure Fans LLC 3270 Associate Drive Suite B North Charleston, SC29418 Office: 843 377 8642 Fax: 843 377 8643...
