READ AND SAVE THESE INSTRUCTIONS
Thank you very much for purchasing our bath fan.
Please read the instructions carefully before attempting to install,
operate or service our ventilating fan. Failure to comply
with instructions could result in personal injury or property
damage. Please retain this booklet for future reference.
TABLE OF CONTENTS
..............................................................................................................
..........................................................................................................
............................................................................................................
..................................................................................................................
INDICATION (PLUG-IN DEVICES)
II
......................................................................................................
...............................................................................................................

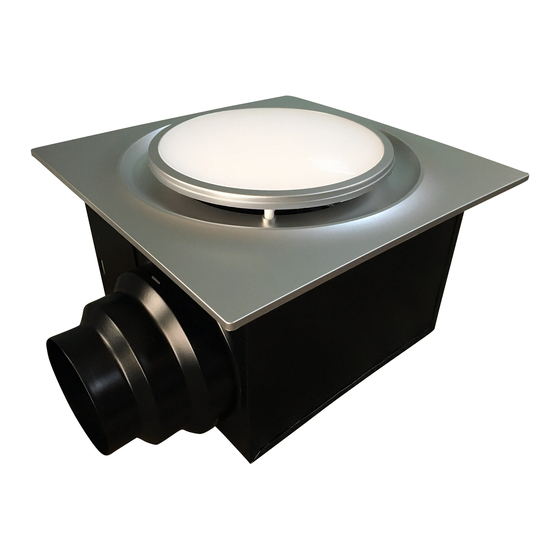

BATH FAN
INSTALLATION INSTRUCTIONS
ABF110DHL5 Series
ABF110DHL6 Series
ABF110DHL1 Series
.......................................................................................
........................................................................
...................................................................................................
.................................................................................
(RETROFIT)
...................................................................................
...........................................
.............................................................
...................................................................
ABF110DCMH-SG5
ABF110DCMH-SG6
02
02
02
03
04
05
05
06
07
11
13
14
14
15
Advertisement
Table of Contents
Related Manuals for aero pure ABF110DHG1 Series
Summary of Contents for aero pure ABF110DHG1 Series
-
Page 1: Table Of Contents
ABF110DHL5 Series ABF110DCMH-SG5 ABF110DHG6 Series ABF110DHL6 Series ABF110DCMH-SG6 ABF110DHG1 Series ABF110DHL1 Series READ AND SAVE THESE INSTRUCTIONS Thank you very much for purchasing our bath fan. Please read the instructions carefully before attempting to install, operate or service our ventilating fan. Failure to comply with instructions could result in personal injury or property damage. -
Page 2: Unpacking
UNPACKING Unpack and carefully remove the unit from carton. Refer to the supplied accessories list to verify that all parts are present. SUPPLIED ACCESSORIES Grille ABF110DHG5 ABF110DHG6 ABF110DHL5 ABF110DHL6 ABF110DHG1 ABF110DHL1 ABF110DCMH-SG5 ABF110DCMH-SG6 Suspension bracket assembly Long screw (ST4X30) Wire Protector Installation instructions... -
Page 3: General Safety Information
GENERAL SAFETY INFORMATION Do not install this ventilating fan where interior room temperature may exceed 104°F (40°C). Make sure that the electric service supply voltage is AC 120V, 60Hz. Follow all local electrical and safety codes, as well as the National Electrical Code (NEC), and the Occupation Safety and Health Act (OSHA). -
Page 4: Dimensions
DIMENSIONS Model: ABF110DHG6 Series, ABF110DHL6 Series, ABF110DCMH-SG6 Unit: inches (mm) 5 4/5 (147) ③ ⑦ 4 7/8 (123) 3 7/8 (98) ② ⑥ ④ ⑨ ⑪ ① 13 (330) ⑩ 10 1/4 (260) 12 1/8 (308) ⑧ ⑤ Model: ABF110DHG5 Series, ABF110DHL5 Series, ABF110DCMH-SG5 ③... -
Page 5: Wiring Diagram
WIRING DIAGRAM Model: ABF110DHG5 / ABF110DHG6 Model: ABF110DHL5 / ABF110DHL6 / AB110DHL1 / ABF110DHG1 Fan body Junction box ABF11DCMH-SG5 / ABF110DCMH-SG6 Control switch White Neutral Signal Fan body Junction box Motor Signal Control switch Black Live Neutral White Signal Yellow- Power switch green Green... - Page 6 PLUG-IN DEVICES Humidity Sensor Module- Included in this Aero Pure fan. Insert module Humidity(RH%) into USB interface. The fan automatically turns on or boosts to a higher speed when the Relative Humidity (RH) exceeds the user-adjustable set-point. The fan automatically runs in a lower speed after a period of time delay or stops running when the Relative Humidity falls below the set-point.
-
Page 7: Installation I
INSTALLATION I (NEW CONSTRUCTION) CAUTION: ！ Please wear gloves during the installation work. IMPORTANT: Remove the tape from damper and adaptor before installation. As shown below: 4 Screws Fig.1 (ST4x30) Joist situation: Two cases of spacing L : 12 inches (305 mm) 16~24 inches (406~610 mm) Fig.2.a If the spacing L is 12 inches (305 mm) on joists,... - Page 8 INSTALLATION I (NEW CONSTRUCTION) CONTINUED Unit: inches (mm) Bend down 8 tabs for positioning as (Fig.2.a) and Active part unfold the bracket assembly as (Fig.2.b). Screws (ST4X20) Fix one side of the bracket assembly to the joists by Joist drilling 2 tapping screws (ST4x20) which have been fixed on it.
- Page 9 INSTALLATION I (NEW CONSTRUCTION) CONTINUED Install a circular duct and secure it with clamps Circular duct or ties and seal it with mastic or approved duct tape. A 4”, 5”, or 6” circular duct is needed to connect to relevant part of adaptor. (Fig.6) Duct tape Fig.6 Remove the knock-out plate and secure conduit...
- Page 10 INSTALLATION I (NEW CONSTRUCTION) CONTINUED 9.Insert mounting springs into slots and mount grille Ceiling Mounting spring Slot to fan body（Fig.9 ） Grille Fig.9 10.For grille with a light, refer to the following installation method. CAUTION: ！ Before turning on the light, make sure the connector is at the correct position.
-
Page 11: Installation
INSTALLATION I (NEW CONSTRUCTION) CONTINUED 11.For grille with a module, refer to the following installation method. Insert the grille mounting spring on the wiring side into the slot. Insert the USB connector into the USB receptacle and insert other mounting spring into the slot as shown and mount grille to fan body. - Page 12 INSTALLATION (RETROFIT) CONTINUED Install a circular duct and secure with clamps Unit:inches (mm) or ties and seal with mastic or approved foil tape. A 4”, 5”, or 6” circular duct is needed to connect to relevant part of adaptor. (Fig.14) Follow step 4 of Installation (NEW CONSTRUCTION page 8) to complete the...
-
Page 13: Maintenance (Cleaning)
MAINTENANCE (CLEANING) WARNING: Disconnect power source before working on unit. Routine maintenance must be done every year. CAUTION: Never use gasoline, benzene, thinner or any other such chemicals for cleaning the ventilating fan. Do not immerse motor in water when cleaning. Do not soak resin parts in water over 140°F Grille (60°C). -
Page 14: Practical Guide To Installation
PRACTICAL GUIDE TO INSTALLATION Properly insulate the area around the 4 inches or 6 inches roof jack, wall cap, fan to minimize building heat loss and or soffit vent with backdraft damper gain. (Fig.21) Mechanically connect duct to termination and seal with mastic or approved foil Loose fill or batt insulation can be faced tape placed directly over the fan housing in... - Page 15 Some states do not allow limitations on how long an implied warranty lasts, so this limitation may not apply to you. This warranty gives you specific legal rights; you may also have other rights, which vary from state to state. Aero Pure LLC 1006 Bankton Circle Building B Hanahan, SC 29410 Tel: 843.377.8642...
