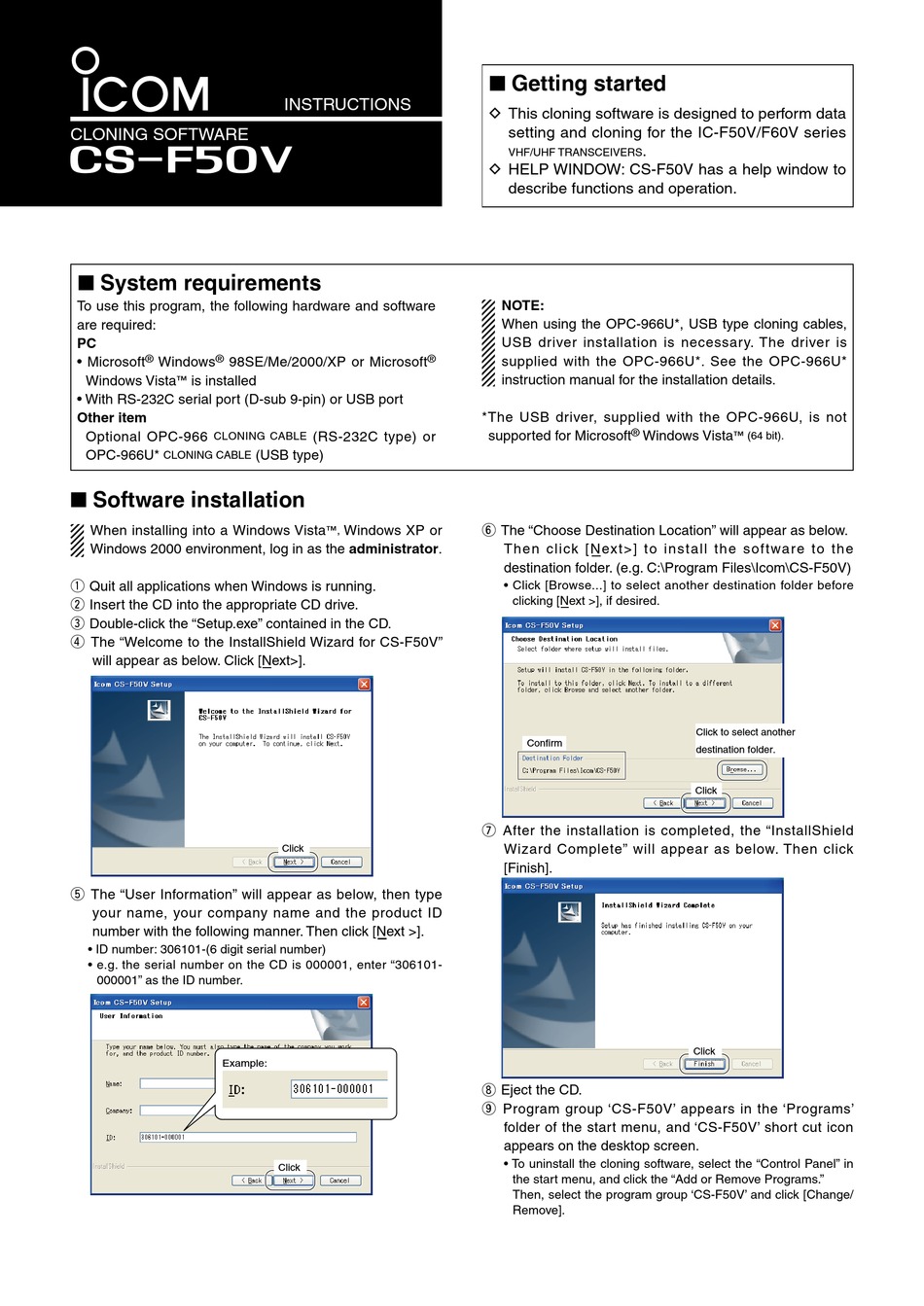

Icom CS-F50V Instructions

CLONING SOFTWARE
CS-F50V
■ System requirements
To use this program, the following hardware and software
are required:
PC
® ®
• Microsoft Windows 98SE/Me/2000/XP or Microsoft
Windows Vista is installed
™
• With RS-232C serial port (D-sub 9-pin) or USB port
Other item
Optional OPC-966
CLONING CABLE
OPC-966U*
CLONING CABLE
■ Software installation
When installing into a Windows Vista
Windows 2000 environment, log in as the administrator.
q Quit all applications when Windows is running.
w Insert the CD into the appropriate CD drive.
e Double-click the "Setup.exe" contained in the CD.
r The "Welcome to the InstallShield Wizard for CS-F50V"
will appear as below. Click [Next>].
t The "User Information" will appear as below, then type
your name, your company name and the product ID
number with the following manner. Then click [Next >].
• ID number: 306101-(6 digit serial number)
• e.g. the serial number on the CD is 000001, enter "306101-
000001" as the ID number.
Example:
INSTRUCTIONS
®
(RS-232C type) or
(USB type)
Windows XP or
™,
Click
Click
■ Getting started
D This cloning software is designed to perform data
setting and cloning for the IC-F50V/F60V series
.
VHF/UHF TRANSCEIVERS
D HELP WINDOW: CS-F50V has a help window to
describe functions and operation.
NOTE:
When using the OPC-966U*, USB type cloning cables,
USB driver installation is necessary. The driver is
supplied with the OPC-966U*. See the OPC-966U*
instruction manual for the installation details.
*The USB driver, supplied with the OPC-966U, is not
®
supported for Microsoft Windows Vista
y The "Choose Destination Location" will appear as below.
Then click [Next>] to install the software to the
destination folder. (e.g. C:\Program Files\Icom\CS-F50V)
• Click [Browse...] to select another destination folder before
clicking [Next >], if desired.
Confirm
u After the installation is completed, the "InstallShield
Wizard Complete" will appear as below. Then click
[Finish].
i Eject the CD.
o Program group 'CS-F50V' appears in the 'Programs'
folder of the start menu, and 'CS-F50V' short cut icon
appears on the desktop screen.
• To uninstall the cloning software, select the "Control Panel" in
the start menu, and click the "Add or Remove Programs."
Then, select the program group 'CS-F50V' and click [Change/
Remove].
™ (64 bit).
Click to select another
destination folder.
Click
