The Snap Server® 12000 Ethernet Card
Turn off the power modules.
2
Make sure the switch on each power module is in the off position.
Disconnect the AC power cords from the back of the server.
3
Disconnect the Ethernet connectors.
4
Removing the Motherboard Tray Assembly
At the back of the server, loosen the 2 thumbscrews on either side of the
1
motherboard tray assembly.
Attach the ends of the motherboard extraction tool behind the loosened
2
thumbscrews.
2
Copyright © 2009, Overland Storage, Inc. All rights reserved. Information in this document is subject to change without notice and does
not represent a commitment on the part of Overland Storage or any of its subsidiaries.

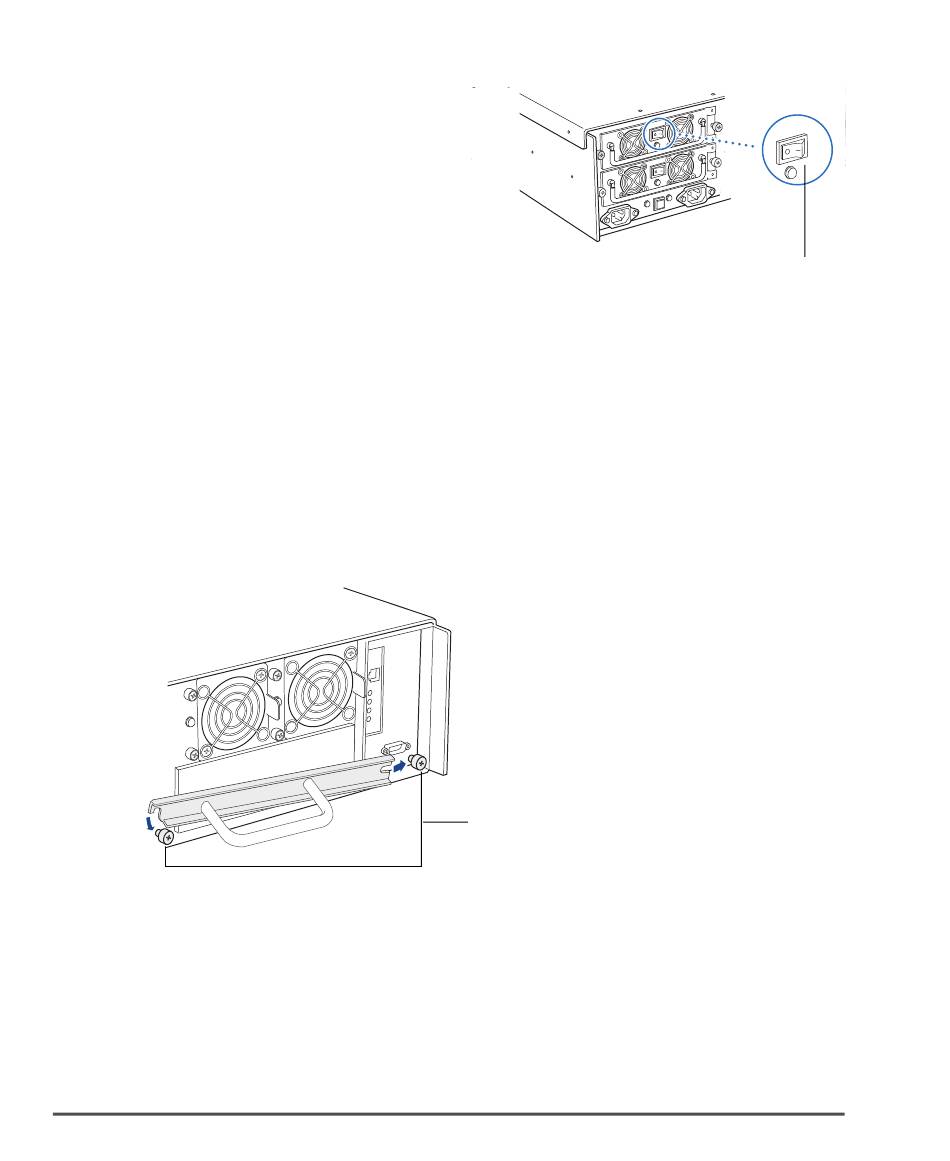

Power module on/off
switch in off position
Thumbscrews on the
motherboard tray assembly
Field Service Documentation
Snap Server 12000
