TO PREVENT POSSIBLE TIPPING, BOLT THIS UNIT TO THE
EXERCISE FLOOR. FAILURE TO DO SO MAY RESULT IN SERIOUS
Note: Both Serial Number and Model Number are Required when Ordering Parts
RECORD SERIAL NUMBER HERE
MACHINE CODE
A01
MC-7018
DIP STATION
**WARNING!**
INJURY OR DEATH.
Customer Service
(800) 548-5438
(858) 578-7676
Fax
(858) 578-9558
Advertisement
Related Manuals for Hoist Fitness MC-7018
Summary of Contents for Hoist Fitness MC-7018

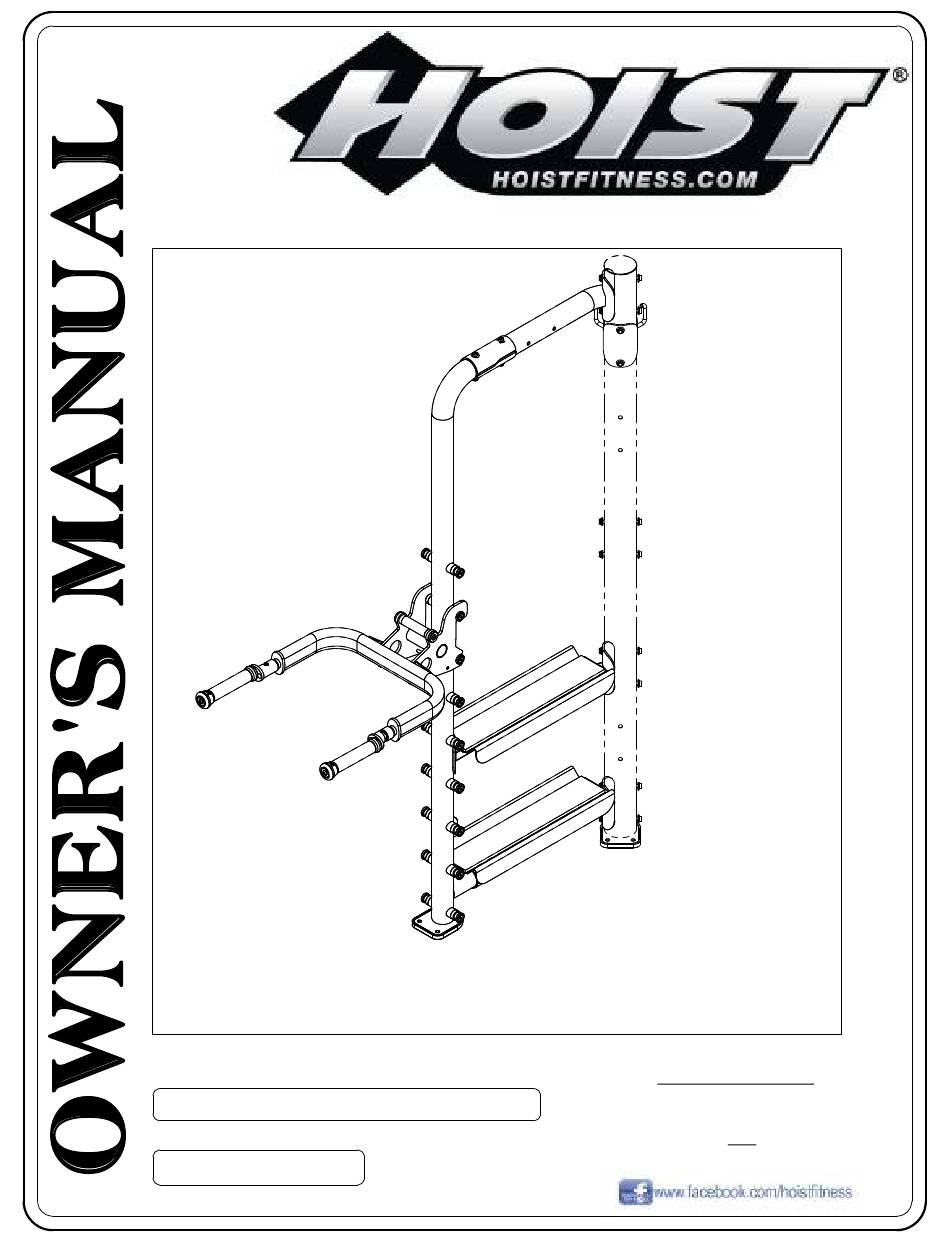

- Page 1 MC-7018 DIP STATION **WARNING!** TO PREVENT POSSIBLE TIPPING, BOLT THIS UNIT TO THE EXERCISE FLOOR. FAILURE TO DO SO MAY RESULT IN SERIOUS INJURY OR DEATH. Note: Both Serial Number and Model Number are Required when Ordering Parts Customer Service...
-
Page 2: Table Of Contents
OWNER'S MANUAL CONTENTS INSTRUCTIONS ..............FRAME ASSEMBLY .............. PRE-ASSEMBLY..............DECAL PLACEMENT............. DECAL REFERENCE............. PART LIST................ABBREVIATIONS..............LIMITED WARRANTY............PAGE 01 MC-7018 ASSEMBLY... -
Page 3: Instructions
Be sure to have your serial number and this manual when calling. When all parts have been accounted for, continue on. TOOLS REQUIRED Ratchet Wrench 1/2", 9/16" and 3/4" Sockets Adjustable Wrench Rubber Mallet Tape Measure Level Hex Key Wrench Set Two People MC-7018 ASSEMBLY PAGE 02... - Page 4 OWNER'S MANUAL ***THIS PAGE WAS INTENTIONALLY LEFT BLANK*** PAGE 03 MC-7018 ASSEMBLY...
-
Page 5: Frame Assembly
OWNER'S MANUAL FRAME ASSEMBLY MC-7018 ASSEMBLY PAGE 04... - Page 6 THE TIE WITH VERTICAL BOLT HOLES (3) IT WILL BE USED FOR THE SHELF MUST BE INSTALLED IN THIS LOCATION. INSTALLATION IN THE NEXT STEPS. IT WILL BE USED FOR THE SHELF INSTALLATION IN THE NEXT STEPS. PAGE 05 MC-7018 ASSEMBLY...
- Page 7 OWNER'S MANUAL FRAME ASSEMBLY NOTE: - HAND TIGHTEN HARDWARE. PARTS INCLUDED WITH THE MC-7012 - SOME PARTS MAY HAVE BEEN REMOVED FOR CLARITY. LEFT HAND ASSEMBLY RIGHT HAND ASSEMBLY MC-7012 MC-7012 MC-7018 ASSEMBLY PAGE 06...
- Page 8 OWNER'S MANUAL FRAME ASSEMBLY NOTE: - WRENCH TIGHTEN HARDWARE. - SOME PARTS MAY HAVE BEEN REMOVED FOR CLARITY. PAGE 07 MC-7018 ASSEMBLY...
- Page 9 - HAND TIGHTEN HARDWARE. * PARTS INCLUDED WITH THE MC-7020 AND MC-7017 - SOME PARTS MAY HAVE BEEN REMOVED FOR CLARITY. MC-7017 MC-7020 NOTE: OTHER STATIONS MAY BE USED IN PLACE OF THE MC-7020 AND MC-7017. MC-7018 ASSEMBLY PAGE 08...
- Page 10 MC-7020 MC-7017 *IMPORTANT* NOW THAT THE MC-7018 IS COMPLETELY ASSEMBLED TAKE TIME TO ASSURE THAT YOUR UNIT IS ASSEMBLED SQUARE AND PERPENDICULAR. IF NOT, IT WILL BE NECESSARY TO LOOSEN SOME FRAME HARDWARE TO RE-ALIGN THE FRAME AND RETIGHTEN BOLTS.
-
Page 11: Pre-Assembly
OWNER'S MANUAL PRE-ASSEMBLY NOTE: - WRENCH TIGHTEN HARDWARE. MC-7018 ASSEMBLY PAGE 10... -
Page 12: Decal Placement
OWNER'S MANUAL DECAL PLACEMENT NOTE: - ALL DECALS ARE CENTERED UNLESS OTHERWISE STATED. - SOME PARTS MAY HAVE BEEN REMOVED FOR CLARITY. PAGE 11 MC-7018 ASSEMBLY... -
Page 13: Decal Reference
OWNER'S MANUAL DECAL REFERENCE 021-0003427 SERIAL # DECAL 021-0003113 021-0003416 021-0003417 021-0003230 MC-7018 ASSEMBLY PAGE 12... -
Page 14: Part List
1/2"-13UNC X 1.50" BHCS (Ni) 011-0702029 1/2"-13UNC X 2.25" FHS (Ni) 011-0702042 1/2"-13UNC X 5.50" FHS (Ni) 011-0702021 3/8"-16UNC X 1.25" FHCS (Ni) W/NYLON PATCH 011-0116119 1/2"-13UNC X 4.00" LOW HEAD SHCS (Ni) 013-1006003 3/8" SPLIT LOCK WASHER (Ni) PAGE 13 MC-7018 ASSEMBLY... - Page 15 1/2"-13 UNC THIN NYLOCK NUT (Ni) 021-0003416 DECAL WIDE 021-0003417 DECAL NARROW 021-0003427 DECAL ADJUST 021-0003230 DECAL HOIST 1.625" X 6.0613" 021-0003113 DECAL PINCH POINT 1.63" X 3.25" (VERTICAL) SERIAL # DECAL DECAL HOIST SERIAL # 1.63" X 2.63" MC-7018 ASSEMBLY PAGE 14...
-
Page 16: Abbreviations
HHB = Hex Head Bolt FHCS = Flat Head Cap Screw BHCS = Button Head Cap Screw SHCS = Socket Head Cap Screw Low Head SHCS = Low Head Socket Head Cap Screw SHSS = Socket Head Shoulder Screw PAGE 15 MC-7018 ASSEMBLY... -
Page 17: Limited Warranty
Hoist Fitness Systems sole responsibility shall be to repair or replace the component within the terms stated above. Hoist Fitness Systems shall not be liable for any loss or damage of any kind including any incidental or consequential damages resulting, directly or indirectly from any warranty expressed or implied or any other failure of this product.
